CVT Position: Inspection

1. 1. Shift the selector lever and check for excessive effort, sticking, noise or rattle.

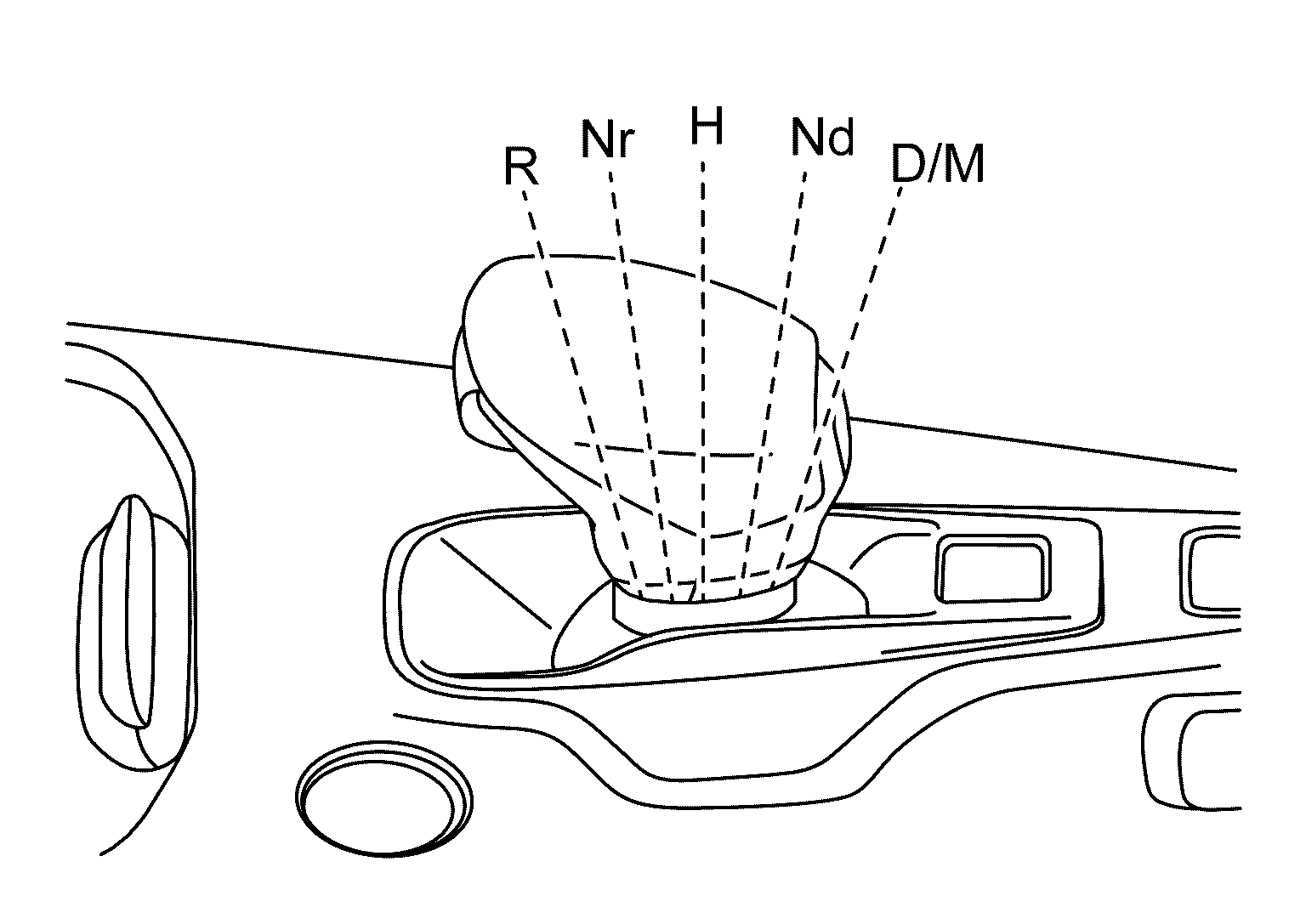

   2. The selector lever automatically moves back to the H (home) position after it is operated.

      Courtesy of NISSAN NORTH AMERICA, INC.

   3. The selector lever cannot move to R position unless press the knob button.

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Repair or replace the electric shift selector. Refer to Removal and Installation .

1. Check the following during engine running.
   1. When the selector lever shifts to each position during depressing the brake pedal, the shift position normally changes.
   2. When the brake pedal is not depressed at the P position, the shift position does not change even if the selector lever is operated.
   3. When the P position switch is pressed and released at any shift position except the P position, the shift position changes into the P position.
   4. When the selector lever shifts to the D position again at the D position, the shift position changes into the M mode.
   5. When the selector lever shifts to the D position again at the M mode, the shift position changes into the D position.
   6. When the ignition switch turns off, the shift position automatically changes into the P position. (The selector indicator lamp of the P position turns ON.)

Is the inspection result normal?

YES>>

INSPECTION END

NO>>

Check the electric shift system.
