Removal and Installation

REMOVAL

1. Remove front suspension member. Refer to Removal and Installation .
2. Remove the steering gear bolts. Refer to Exploded View (with Direct Adaptive Steering System) or Exploded View (without Direct Adaptive Steering System).
3. Remove steering gear.

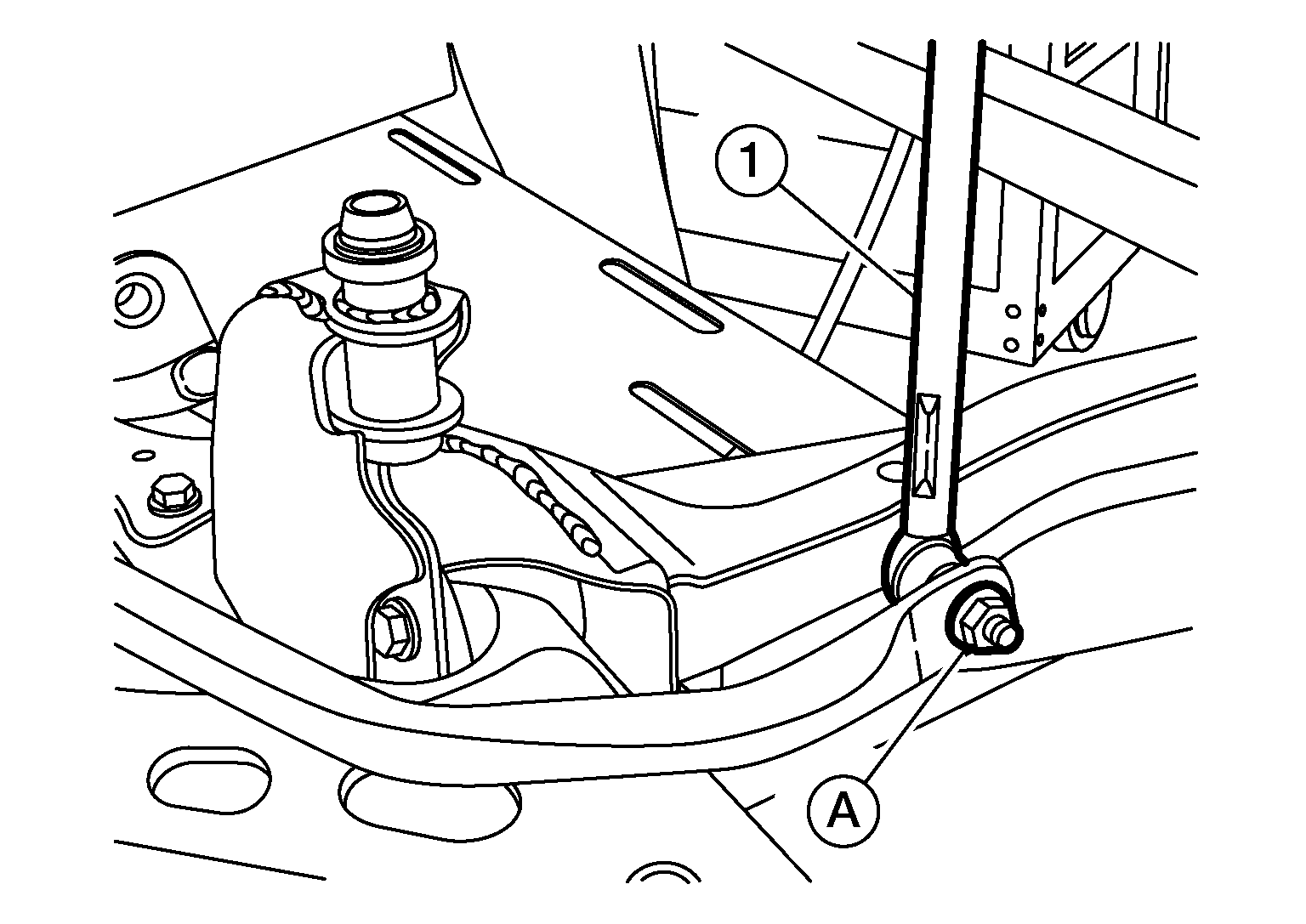

4. Remove nut (A) and remove stabilizer bar connecting rod (1).

   Courtesy of NISSAN NORTH AMERICA, INC.

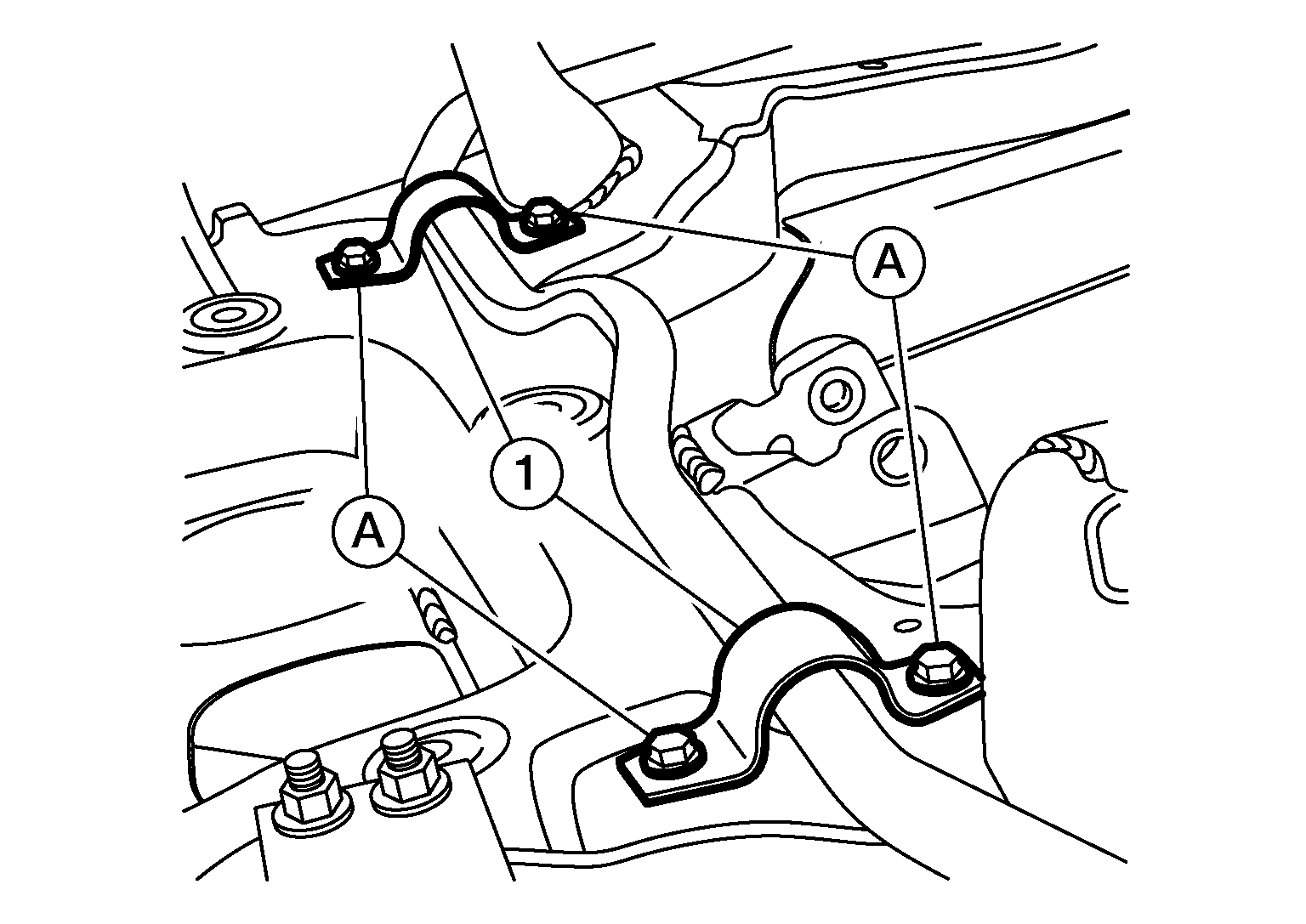

5. Remove bolts (A) and remove stabilizer bar clamps (1).

   Courtesy of NISSAN NORTH AMERICA, INC.

6. Remove stabilizer bar.

INSTALLATION

Installation is in the reverse order of removal.

• Install and finger tighten bolts in the sequence shown in the illustration.
• Torque bolts to specification in the sequence shown in the illustration.

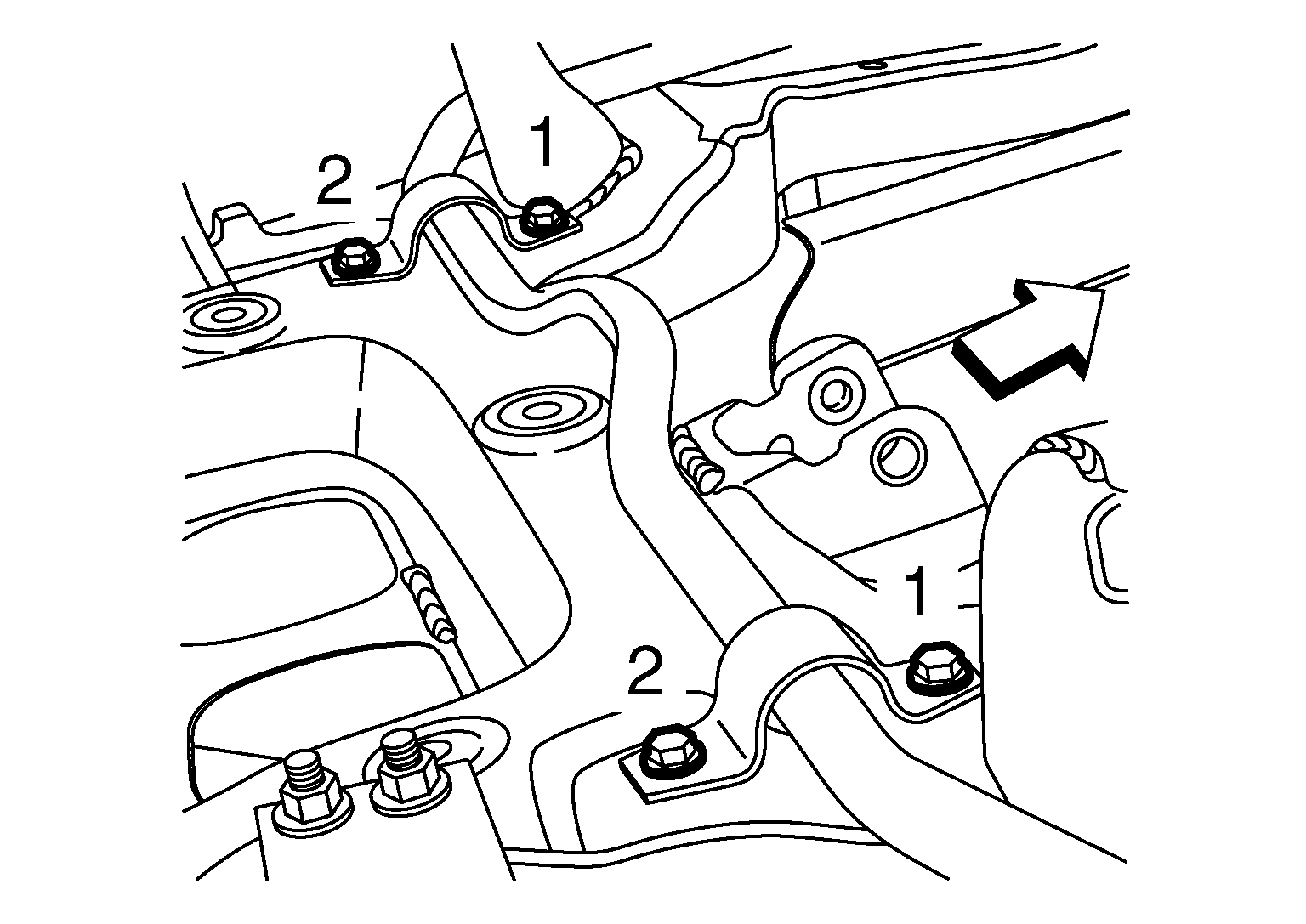

Fig 1: Stabilizer Shaft Bolt Tightening Sequence

Courtesy of NISSAN NORTH AMERICA, INC.

(1, 2)	: 50 Nm (5.1 kg-m, 37 ft-lb)
	: Front
