Exploded View

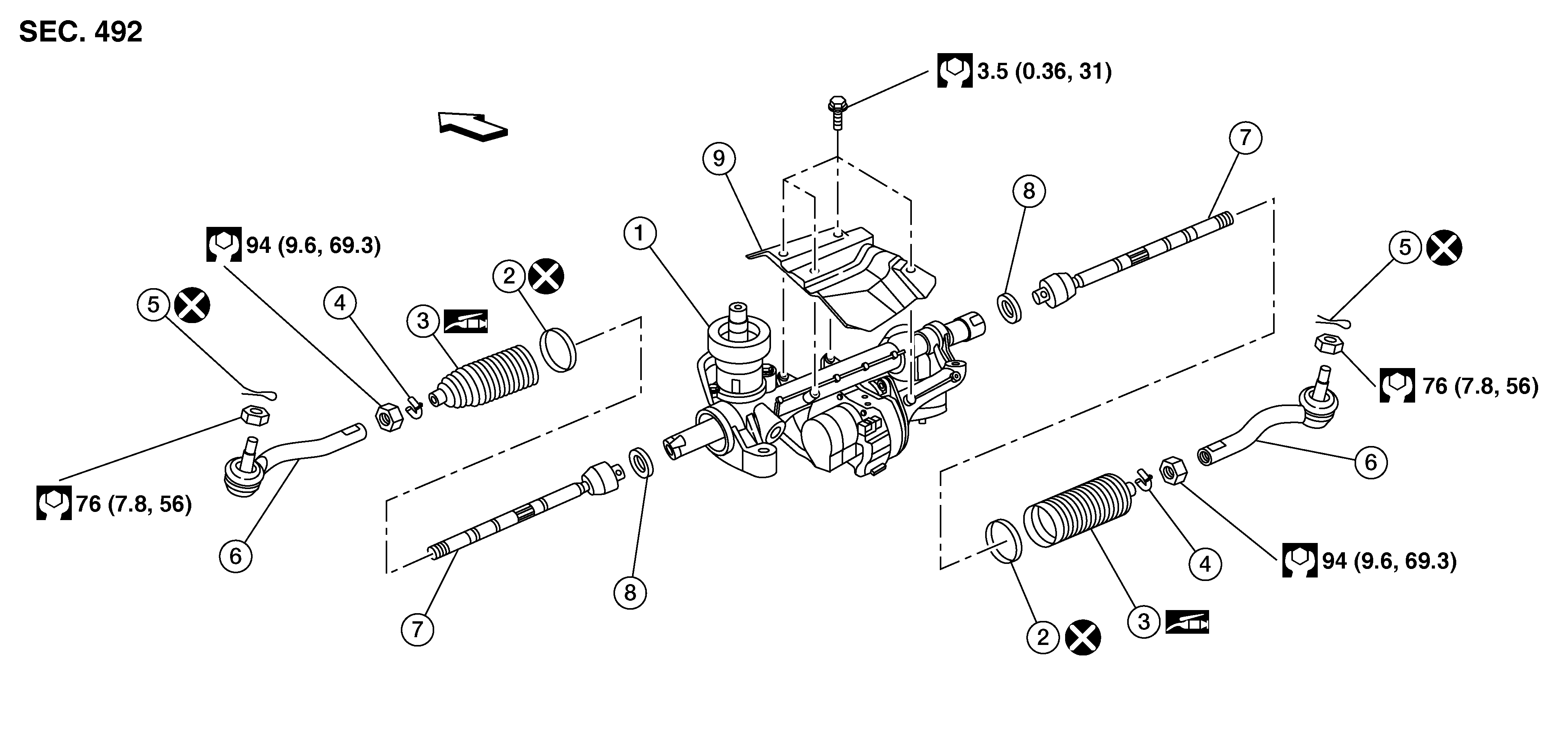

Fig 1: Steering Gear And Linkage With Torque Specifications
GNSDB139321Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering gear 2. Large boot clamp 3. Boot
4. Small boot clamp 5. Cotter pin 6. Outer socket
7. Inner socket 8. Spacer 9. Heat shield
SYMBOL Front
