Removal and Installation

REMOVAL

CAUTION:

Be replacing A/C auto amp., perform "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (A/C AUTO AMP.)" to save or print current vehicle specification. Refer to Description .

  1. Remove right knee air bag module. Refer to Removal and Installation .
  2. Remove instrument panel cover lower (RH). Refer to Exploded View .

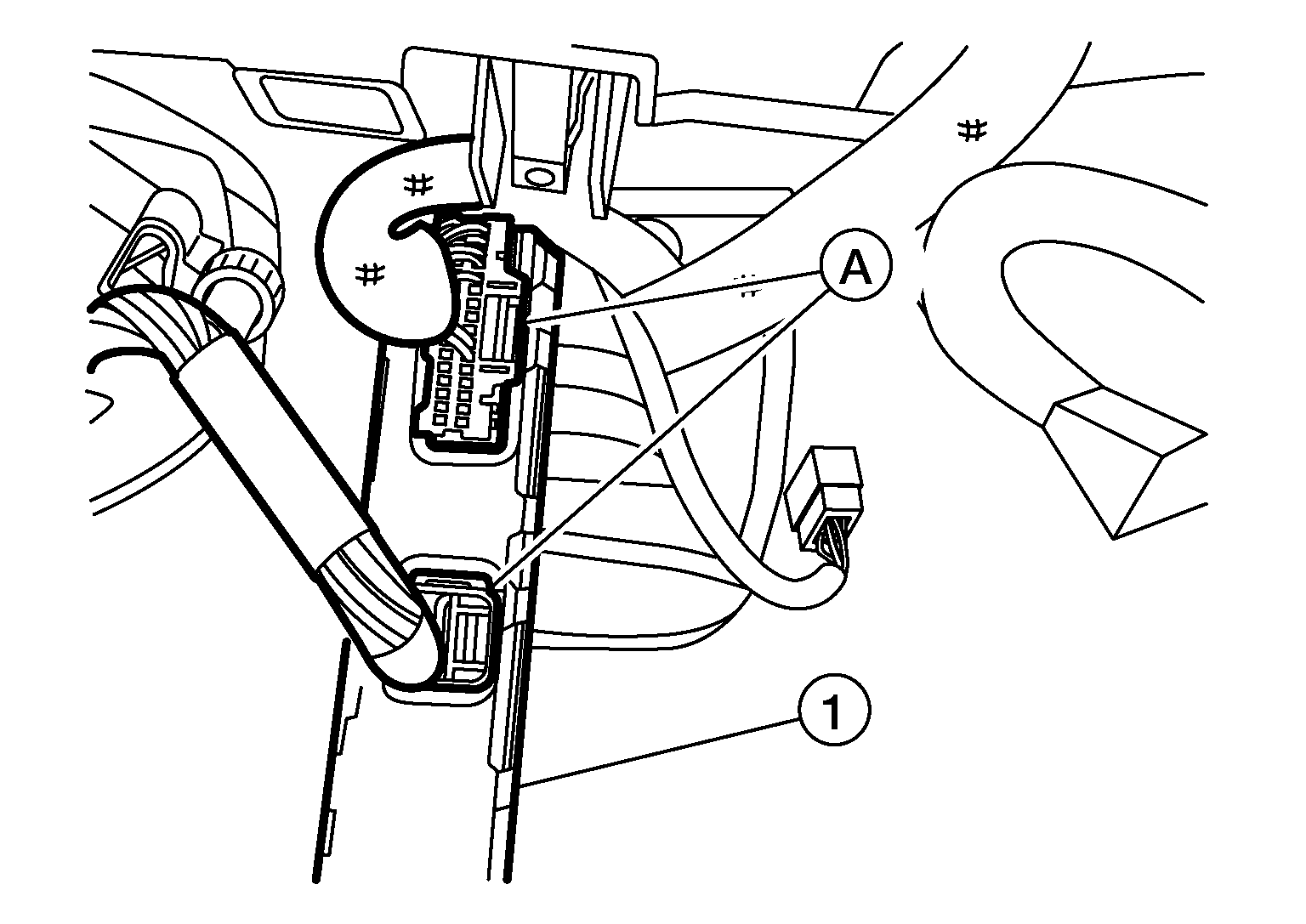

  3. Disconnect harness connectors (A) from A/C auto amp. (1).
    GNSDB139247Courtesy of NISSAN NORTH AMERICA, INC.

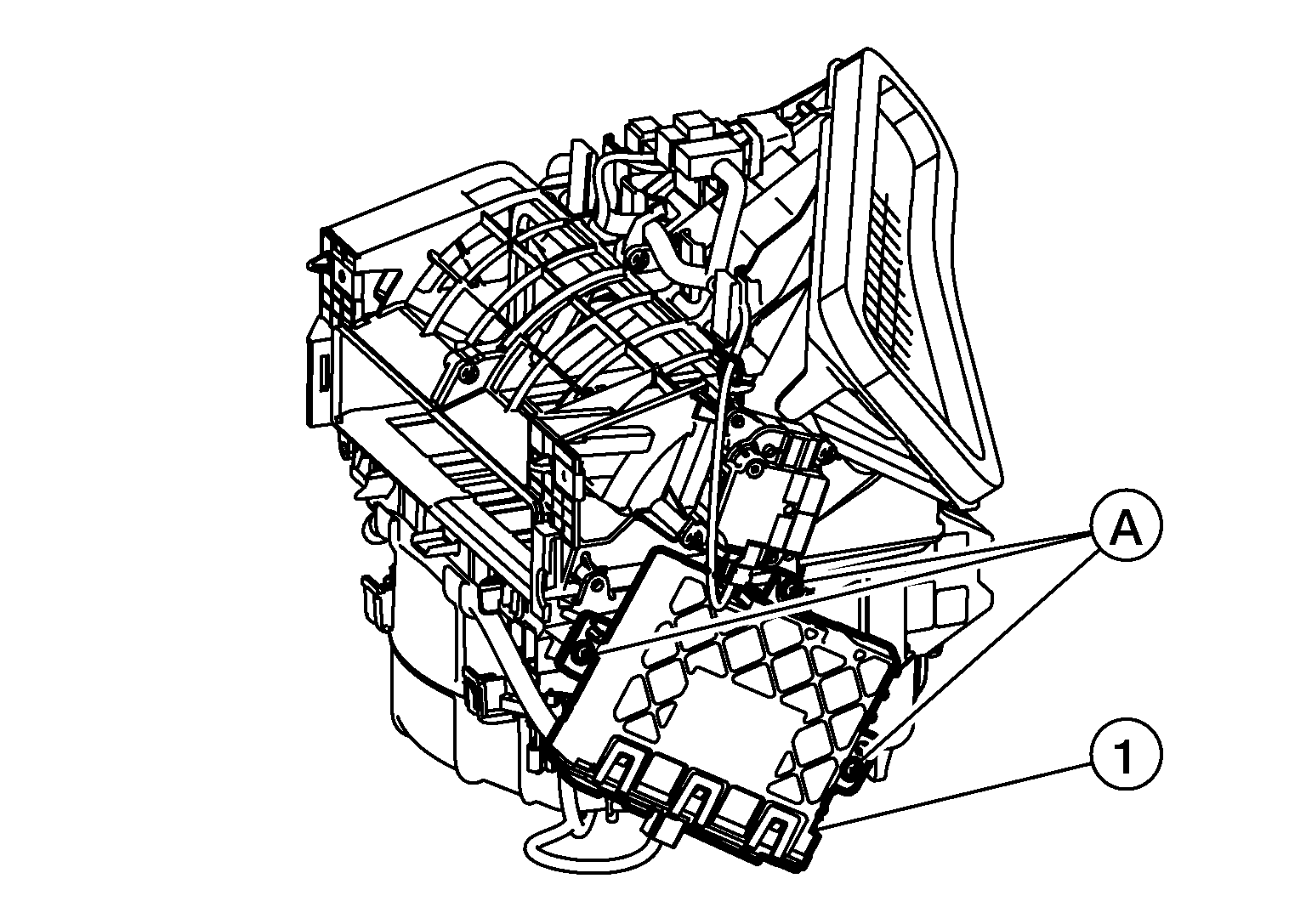

  4. Remove screws (A) from A/C auto amp. (1).
    GNSDB138822Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove A/C auto amp from blower unit.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Be sure to perform "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (A/C AUTO AMP.)" when replacing A/C Auto Amp. For details, refer to Description .
