Removal and Installation

REMOVAL

1. Using a suitable tool, release pawls and remove center console rear finisher. Refer to Exploded View .
2. Disconnect harness connector from rear USB charge port.
3. Disconnect harness connector from rear air control (with climate controlled seats).
4. Remove rear air control unit. Refer to Removal and Installation .

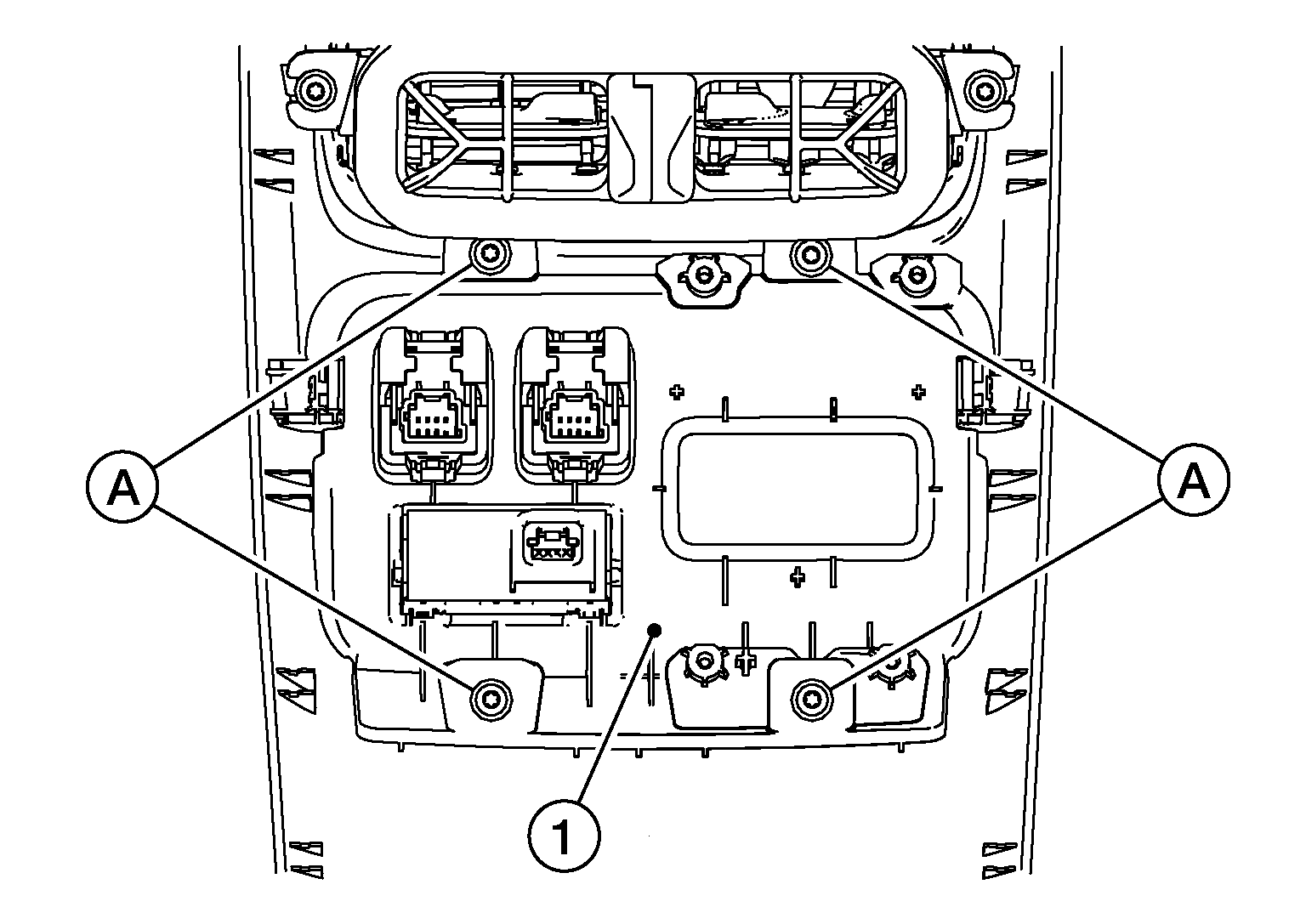

5. Remove screws (A) and center console rear finisher switch panel (1).

   Courtesy of NISSAN NORTH AMERICA, INC.

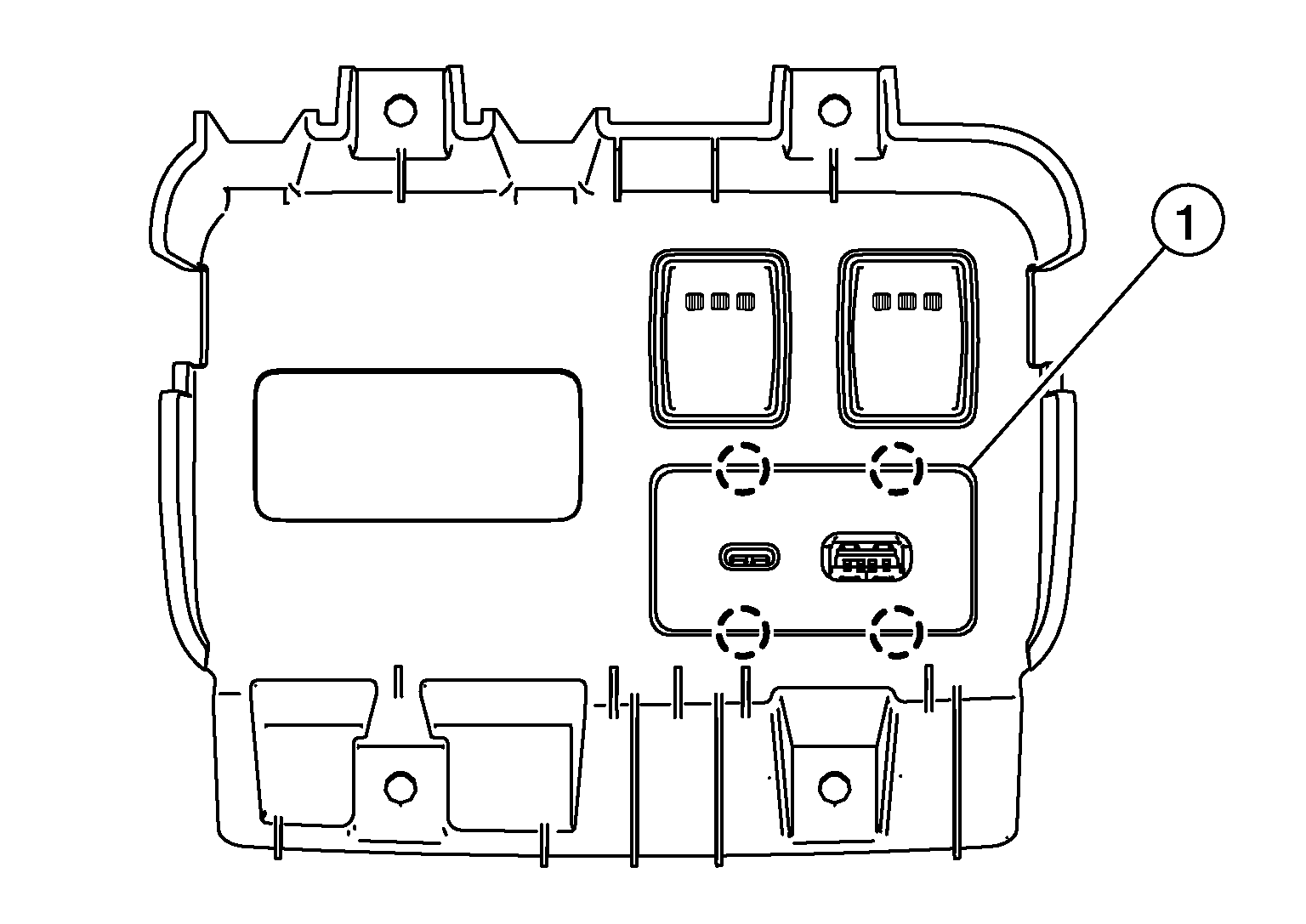

6. Using a suitable tool, release pawls and remove rear USB charge port (1).

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Pawl

INSTALLATION

Installation is in the reverse order of removal.
