Removal and Installation

REMOVAL

  1. Remove center console rear finisher. Refer to Exploded View .

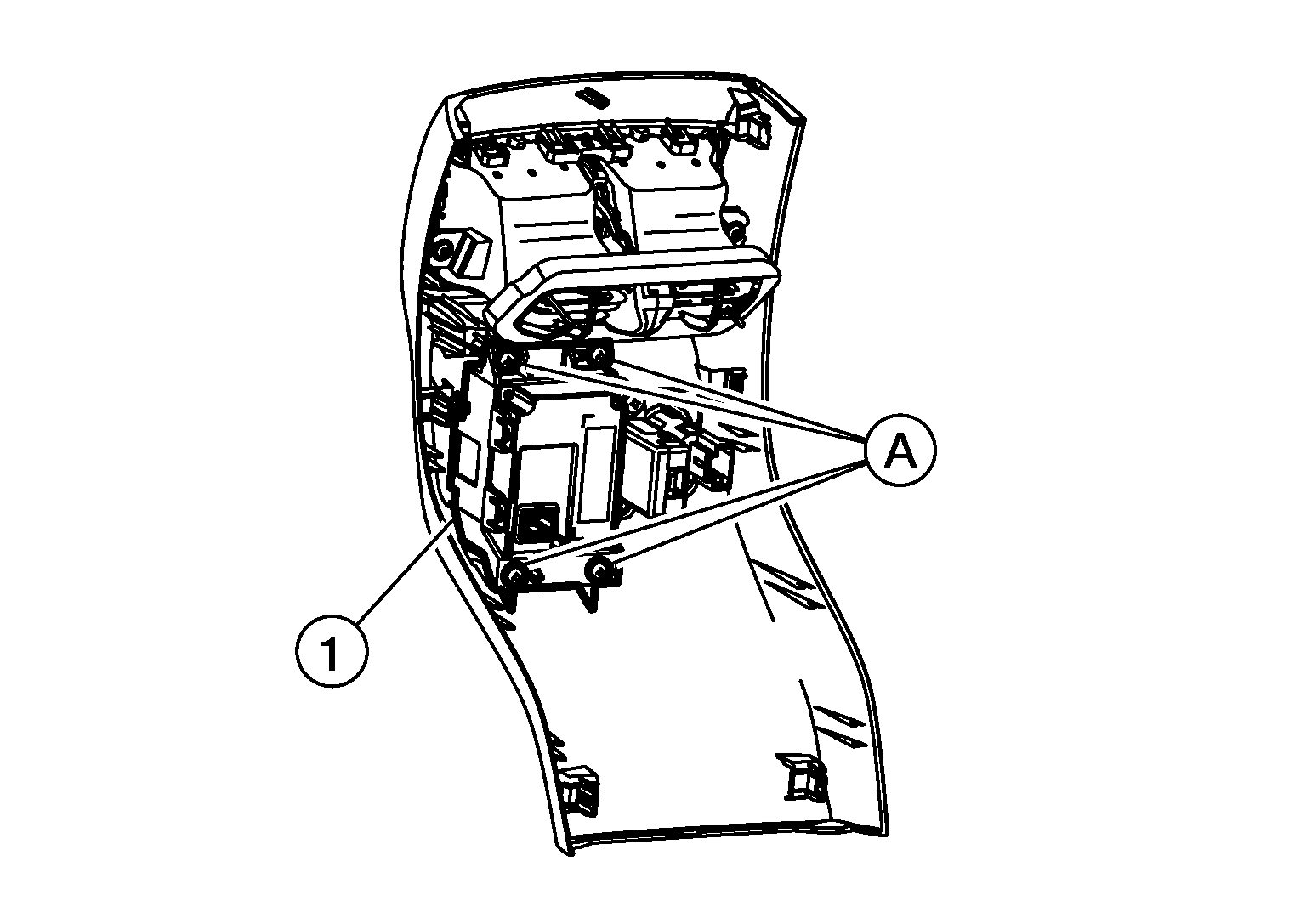

  2. Remove screws (A) from rear air control (1).
    GNSDB138691Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove rear air control from center console rear finisher.

INSTALLATION

Installation is in the reverse order of removal.
