Removal and Installation

CAUTION:

Before replacing the BCM, perform "READ CONFIGURATION" to save or print current vehicle specification. Refer to Description .
When replacing the BCM, a new BCM must be used. The functions controlled by the BCM do not operate properly if a BCM from another vehicle is used.

REMOVAL

Disconnect the negative battery terminal. Refer to Battery Disconnect .
Remove instrument lower panel (LH). Refer to Removal and Installation .
Remove the BCM bolt.

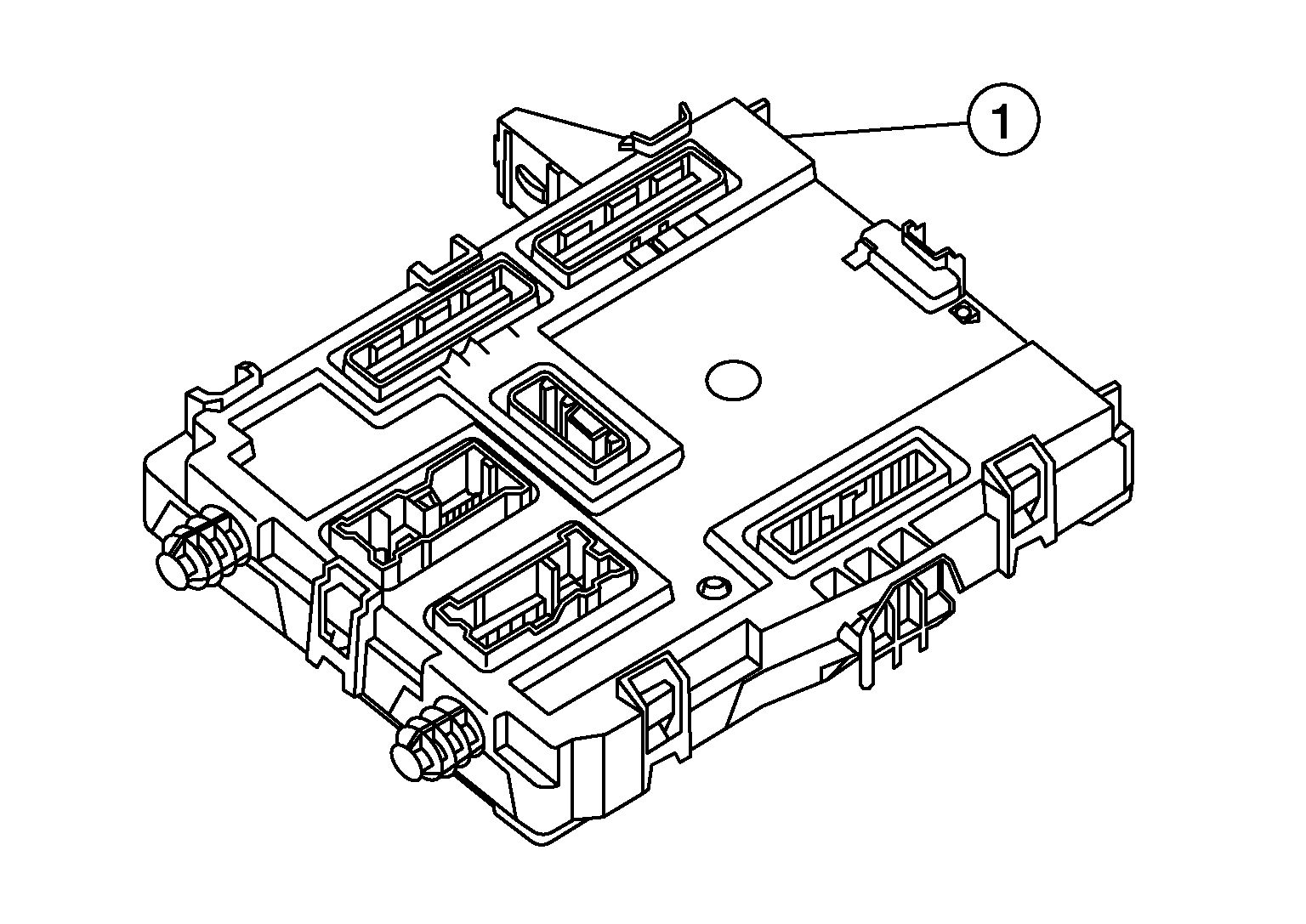

Disconnect the harness connectors from the BCM (1) and remove.

Courtesy of NISSAN NORTH AMERICA, INC.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

If replacing BCM perform "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM)". Refer to Description .
Be sure to perform the system initialization (NATS) when replacing BCM. Refer to Description .
When replacing BCM, if new BCM does not come with keyfobs attached, all existing keyfobs must be re-registered.
For initialization and registration of Intelligent Key, refer to CONSULT Immobilizer mode and follow the on-screen instructions.
