Removal and Installation

REMOVAL

1. Remove instrument panel lower (LH). Refer to Removal and Installation .

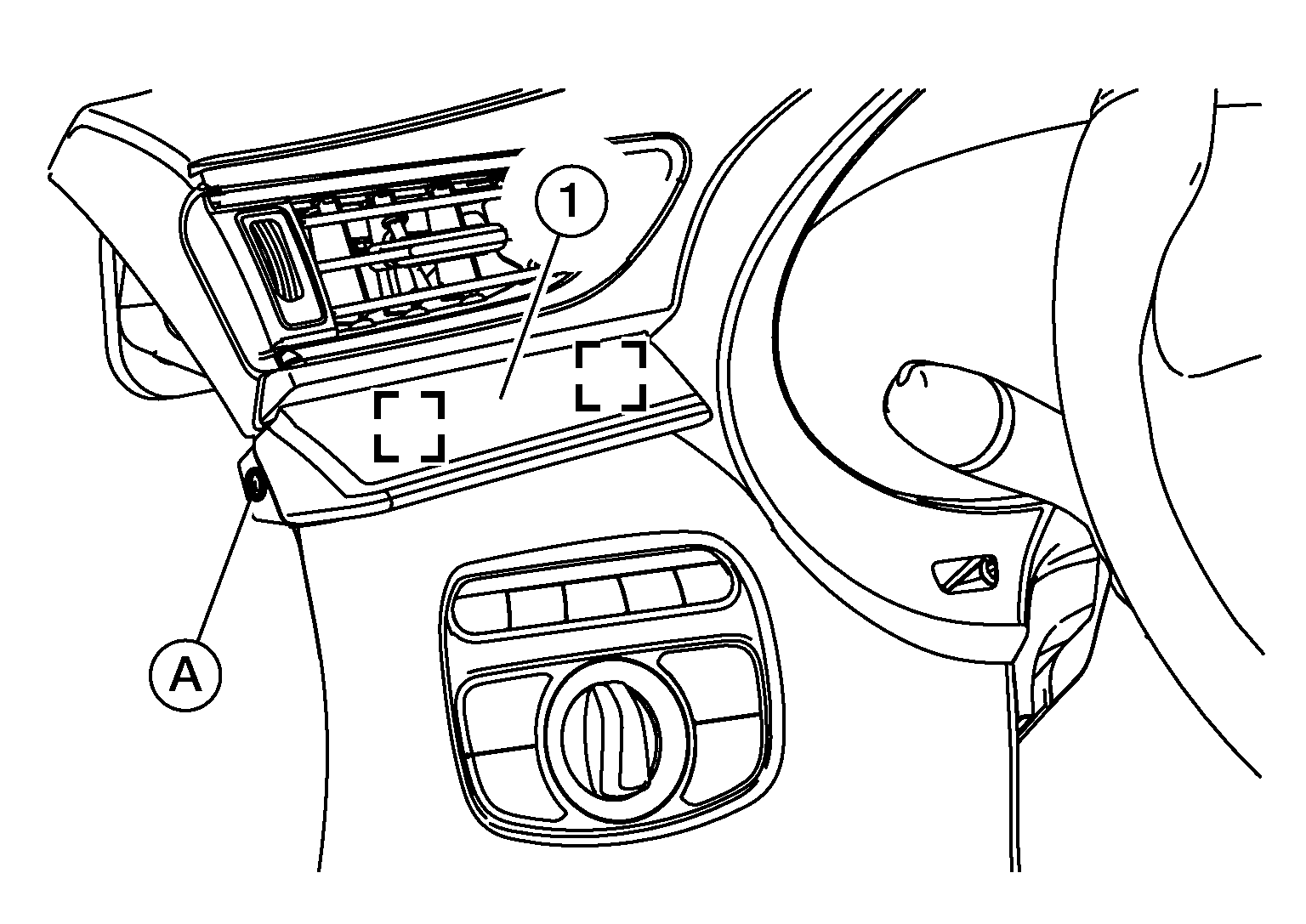

2. Remove screw (A) from instrument finisher A (1).

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Metal clip

3. Using a suitable tool release clips and remove instrument finisher A.
4. Disconnect harness connector from instrument panel mood lamp [LH (with extended interior ambient lighting)].

INSTALLATION

Installation is in the reverse order of removal.
