Removal and Installation

REMOVAL

1. Remove instrument lower panel (LH). Refer to Removal and Installation .
2. Remove instrument finisher A. Refer to Exploded View .
3. Using a suitable tool release pawls and separate gap hider from upper steering column cover.

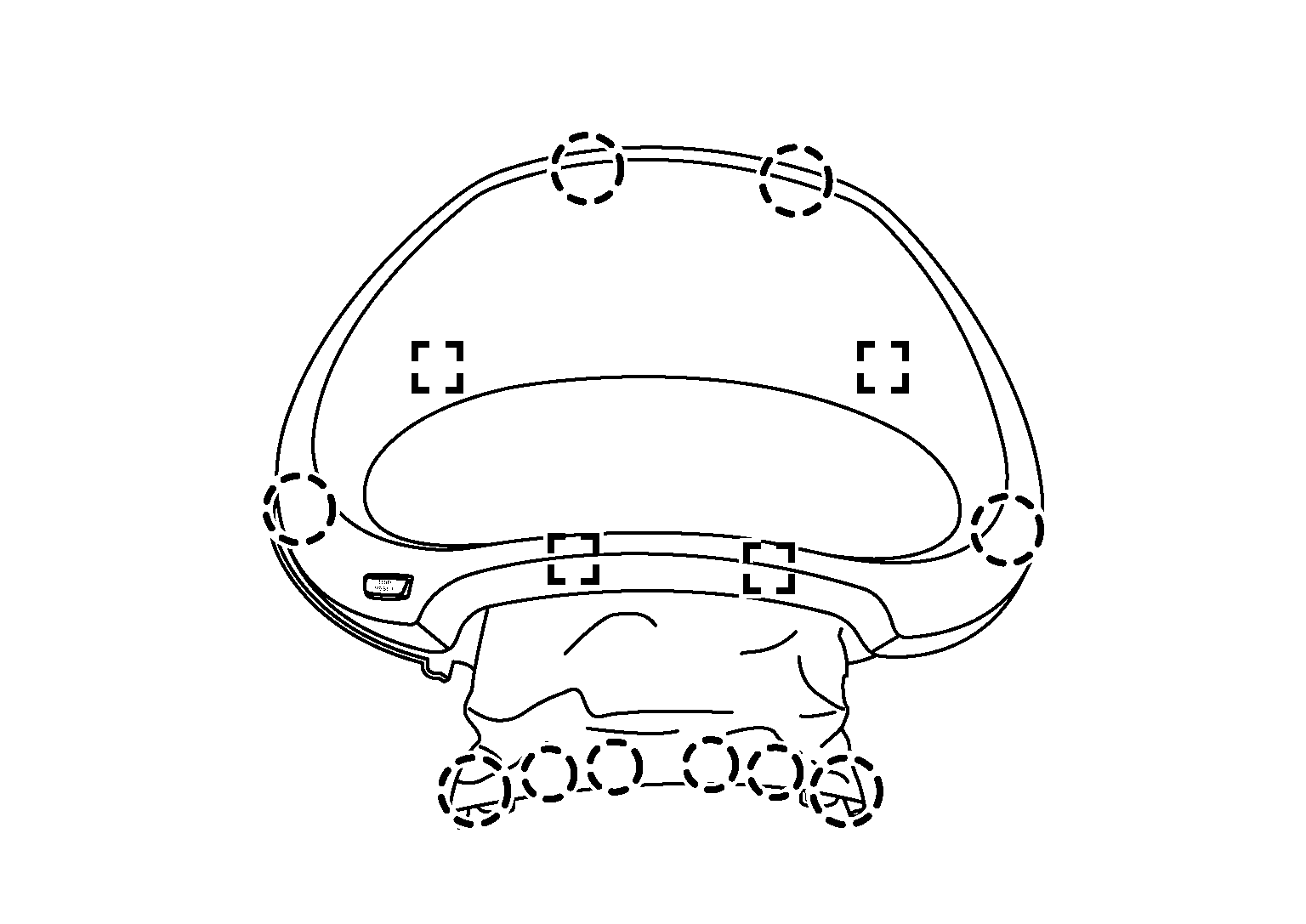

4. Using a suitable tool, release clips and pawls and remove cluster lid A.

   Courtesy of NISSAN NORTH AMERICA, INC.

   	: Metal clip
   	: Pawl

5. Disconnect harness connector from trip reset switch.

INSTALLATION

Installation is in the reverse order of removal.
