Removal and Installation

REMOVAL

1. Using a suitable tool release clips and remove rear center console finisher. Refer to Exploded View .
2. Disconnect harness connector from rear USB charge port.
3. Disconnect harness connector from rear air control [with climate controlled seats (if equipped)].

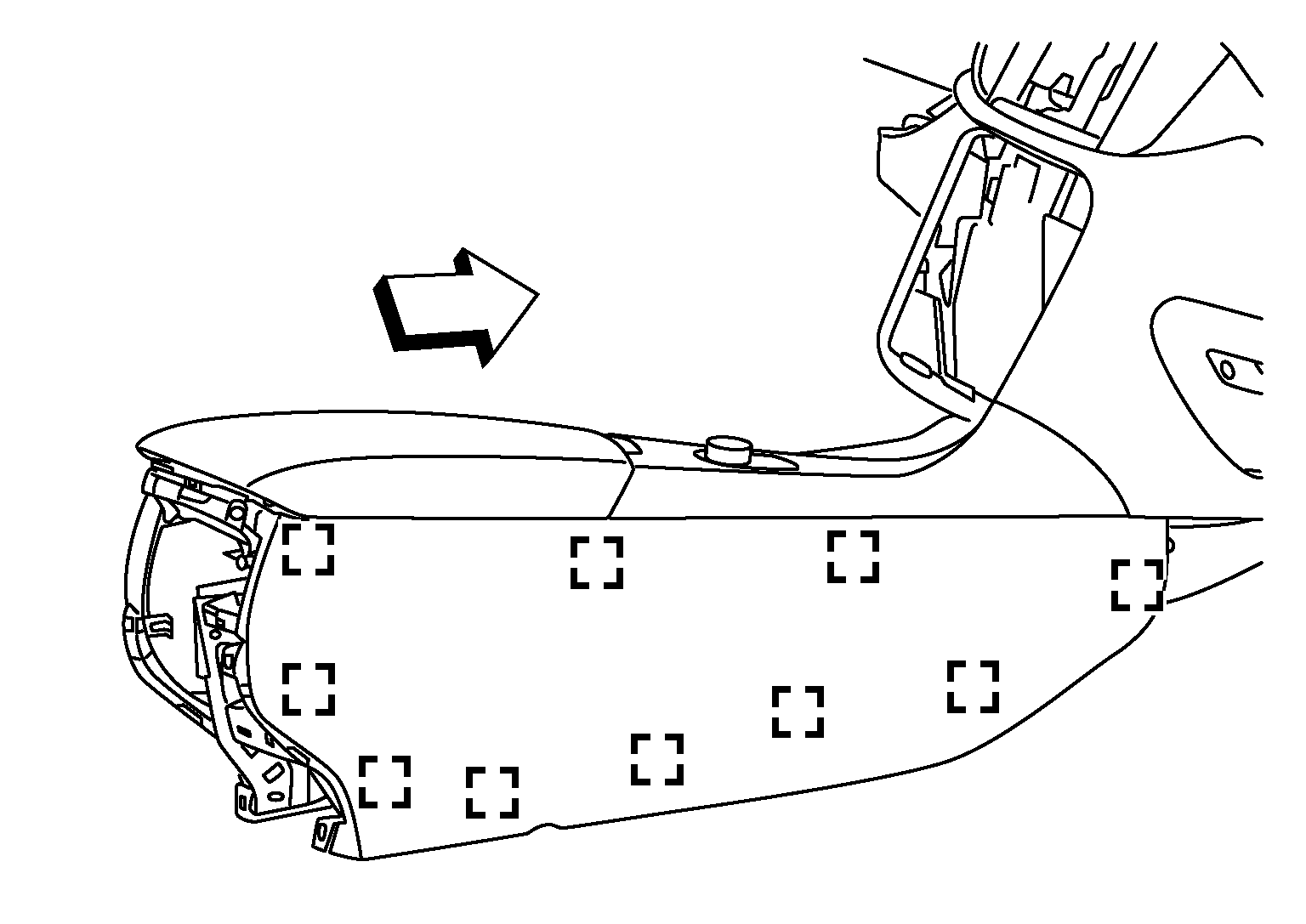

4. Using a suitable tool release clips and remove center console side finisher (LH/RH).

   Courtesy of NISSAN NORTH AMERICA, INC.

   	: Metal clip
   	: Front

5. Using a suitable tool release clips and remove shift selector finisher.
6. Disconnect the harness connector from push button ignition switch.
7. Disconnect the harness connector from electric parking brake switch.
8. Disconnect the harness connector from drive mode switch.
9. Using a suitable tool release clips and remove center console finisher (upper RH).

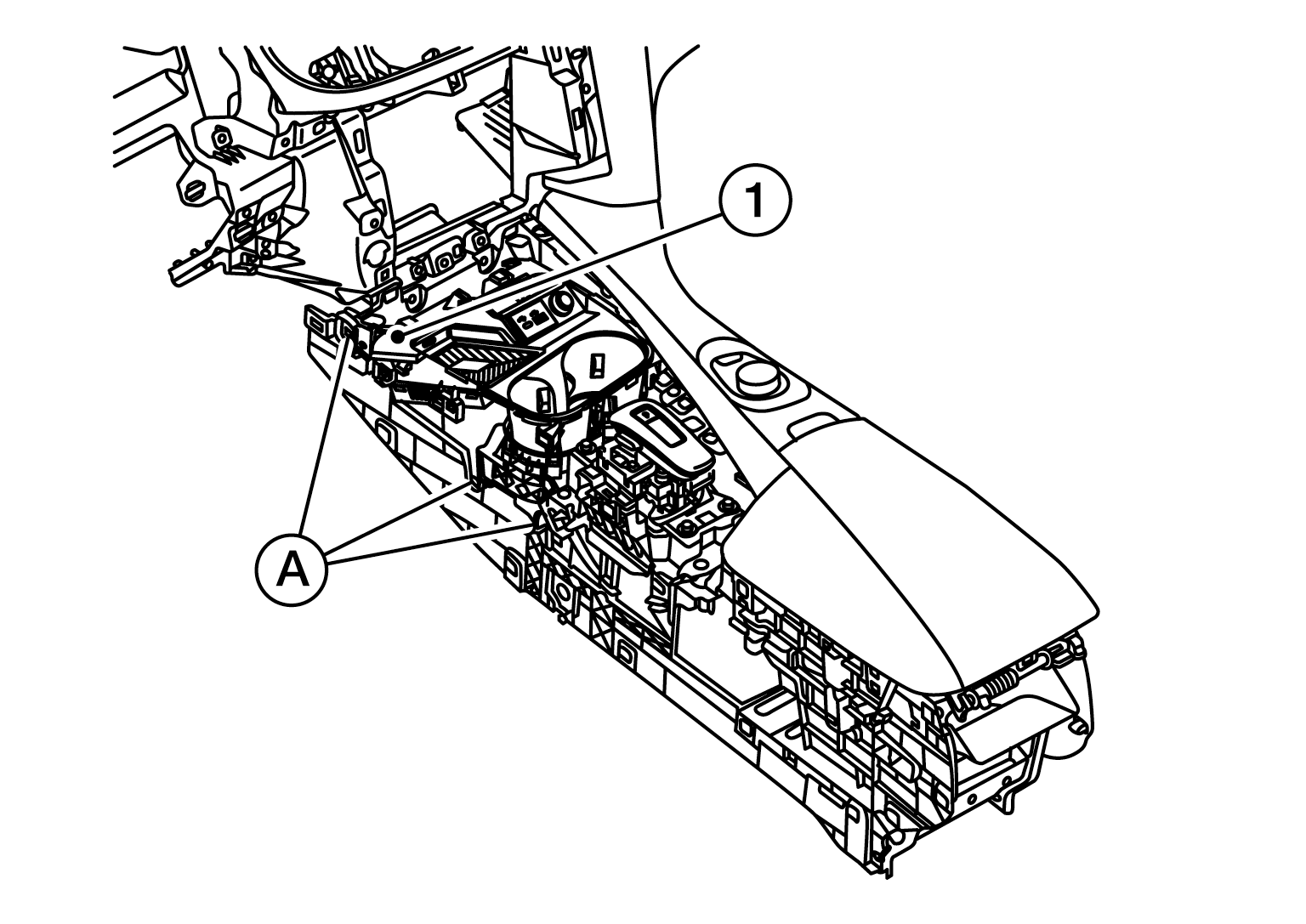

10. Remove screws (A) from the left side of the center console cup holder (1).

    Courtesy of NISSAN NORTH AMERICA, INC.

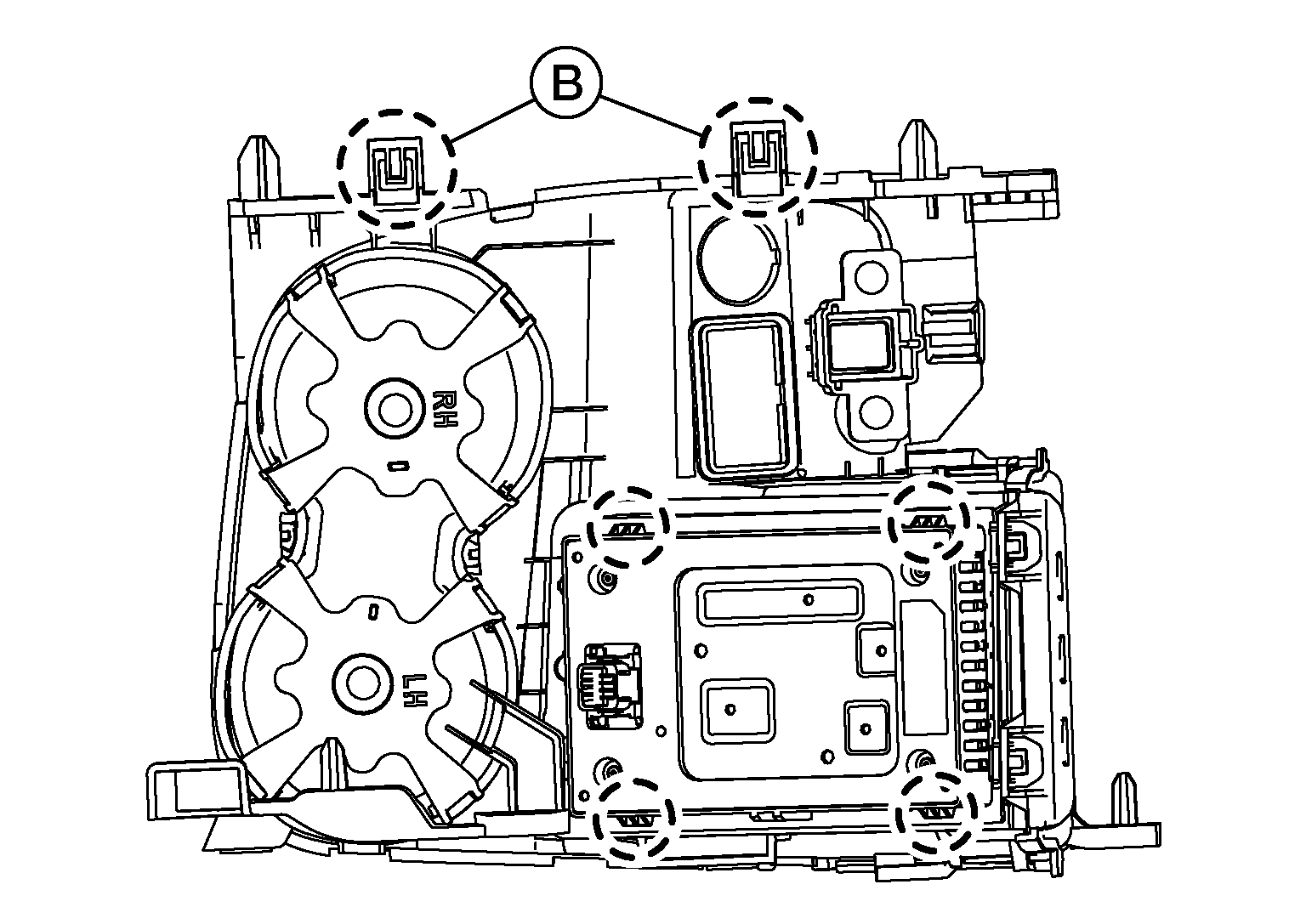

11. Release pawls (B) on the right side of the center console cup holder and remove the center console cup holder.

    Courtesy of NISSAN NORTH AMERICA, INC.

    : Pawl

12. Disconnect harness connectors from the center console cup holder.
13. Remove electric shift selector. Refer to Removal and Installation .
14. Remove center console assembly screws.
15. Disconnect the harness connectors from the center console assembly and remove.

INSTALLATION

Installation is in the reverse order of removal.
