Removal and Installation

REMOVAL

Observe the brake fluid level in the reservoir tank. Partially drain the brake fluid if necessary. Refer to Drain and Refill .
Remove front wheel and tire using power tool. Refer to Removal and Installation .
Remove the brake pads, shims, shim covers, and anti-rattle clips from the torque member. Refer to Removal and Installation .
CAUTION:
- Do not damage the piston boots.
- Do not drop the brake pads, shims, or the shim covers.
- Note the position of components during removal to aid with installation.
Remove the bolts, washers, and torque member. Refer to Exploded View .

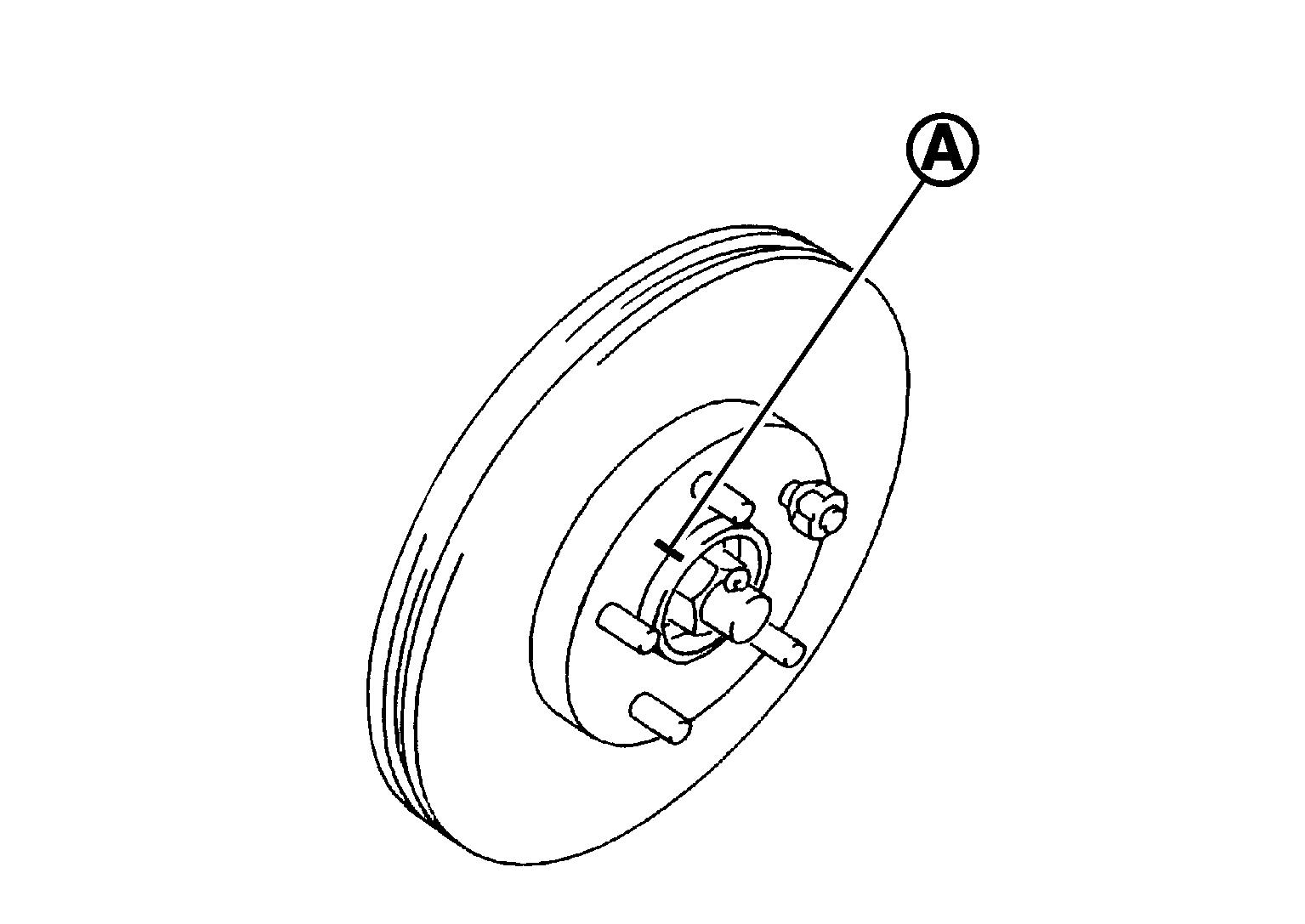

Place alignment marks (A) on the front disc brake rotor and the wheel hub and bearing, then remove the front disc brake rotor.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
Do not drop the disc brake rotor.

INSTALLATION

Installation is in the reverse order of removal. Using a suitable tool, press the pistons into the brake caliper.

CAUTION:

Do not damage the piston boots.

INSPECTION AFTER INSTALLATION

Burnish contact surfaces after refinishing or replacing disc brake rotors or if a soft pedal occurs at very low mileage. Refer to Inspection and Adjustment .
