Exploded View

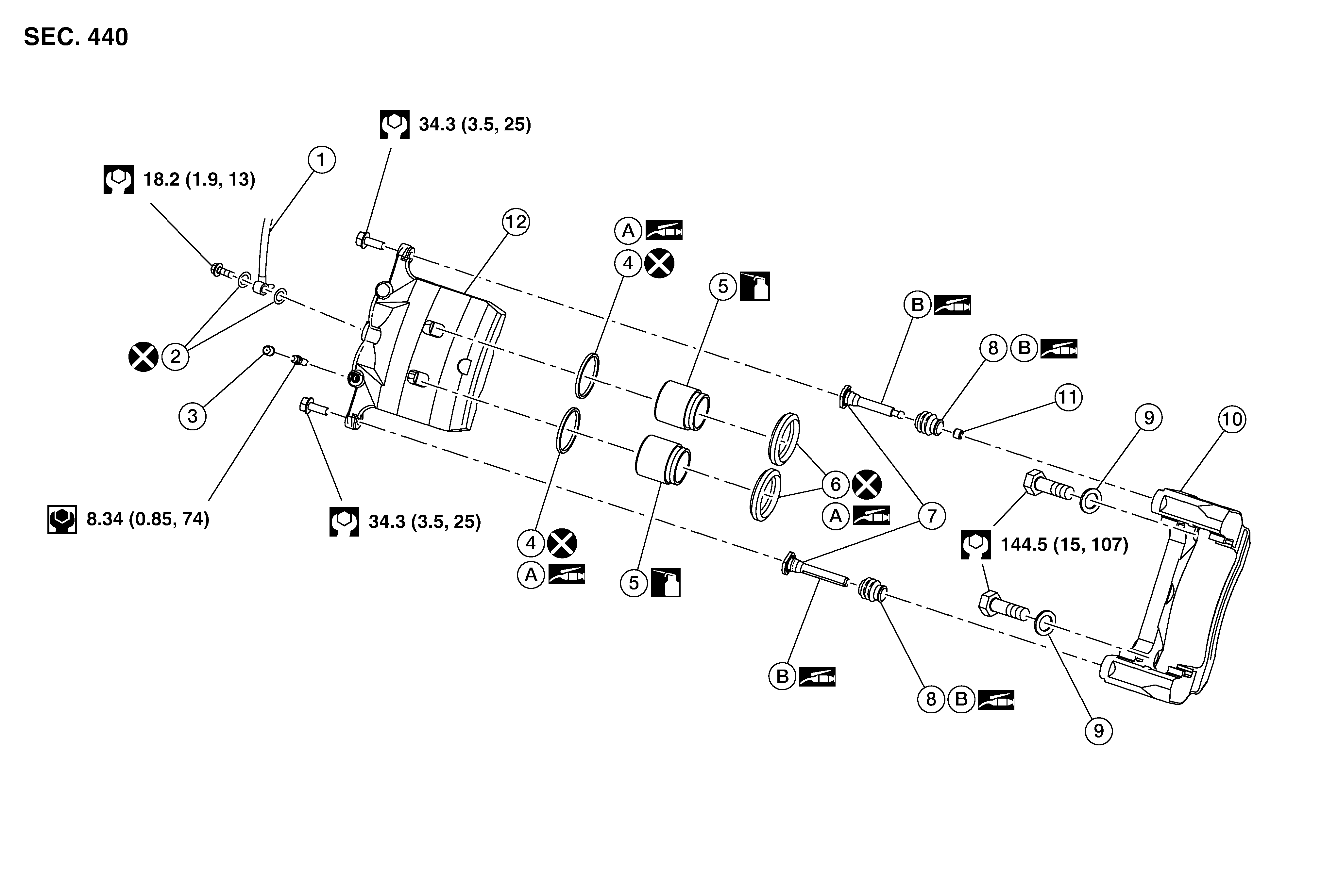

GNSDB138435Courtesy of NISSAN NORTH AMERICA, INC.
1. Brake hose 2. Copper sealing washers 3. Bleeder cap
4. Piston seal 5. Piston 6. Piston boot
7. Slide pin 8. Slide pin boot 9. Washer
10. Torque member 11. Bushing 12. Brake caliper body
A. Rubber grease B. Niglube Rx-2 grease SYMBOL Apply Brake fluid
