Exploded View

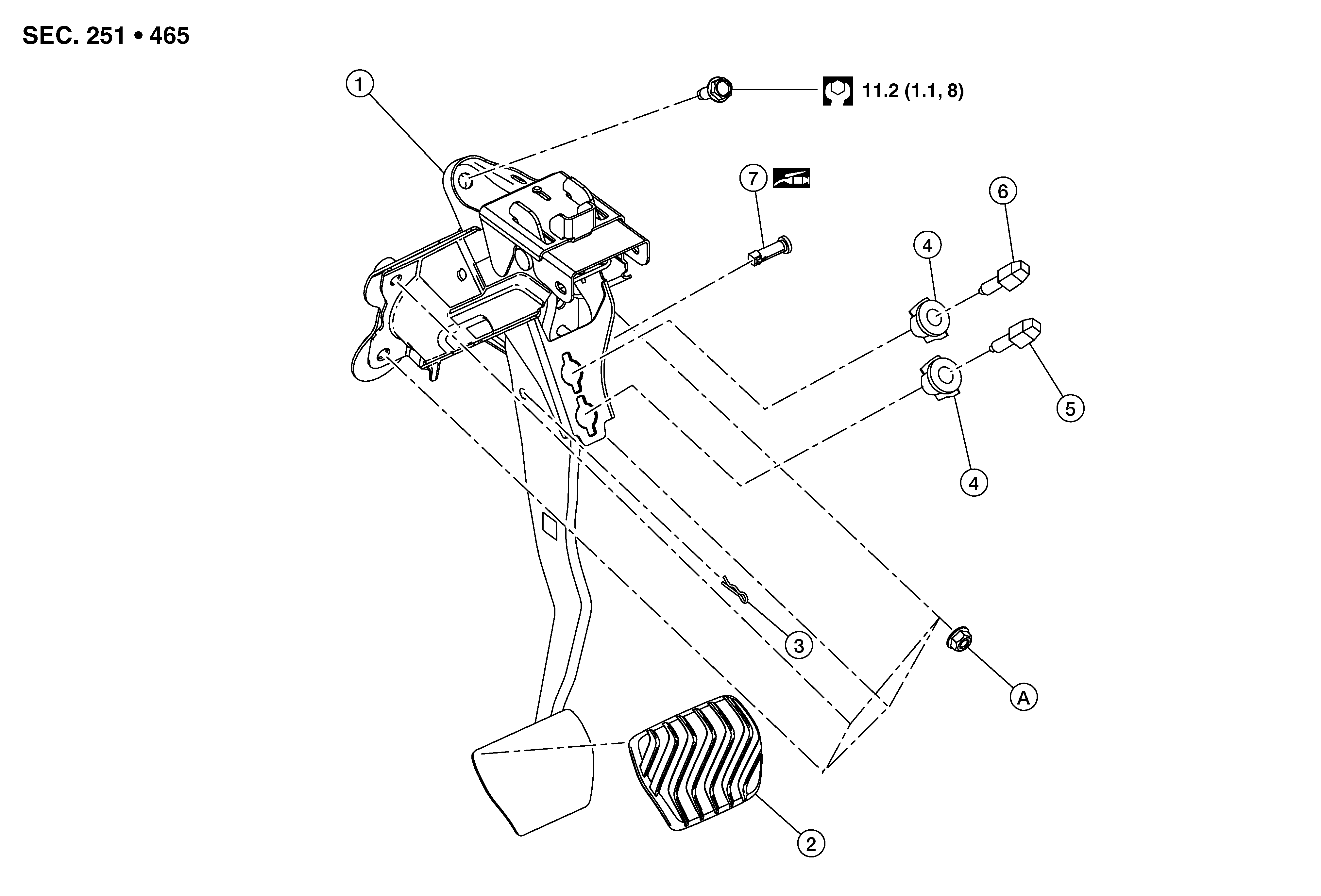

Fig 1: Brake Pedal With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Brake pedal assembly	2.	Brake pedal pad	3.	Snap pin
4.	Clip	5.	Stop lamp switch	6.	Brake pedal position switch
7.	Clevis pin	A.	Brake booster nut. Refer to Exploded View .
