Exploded View

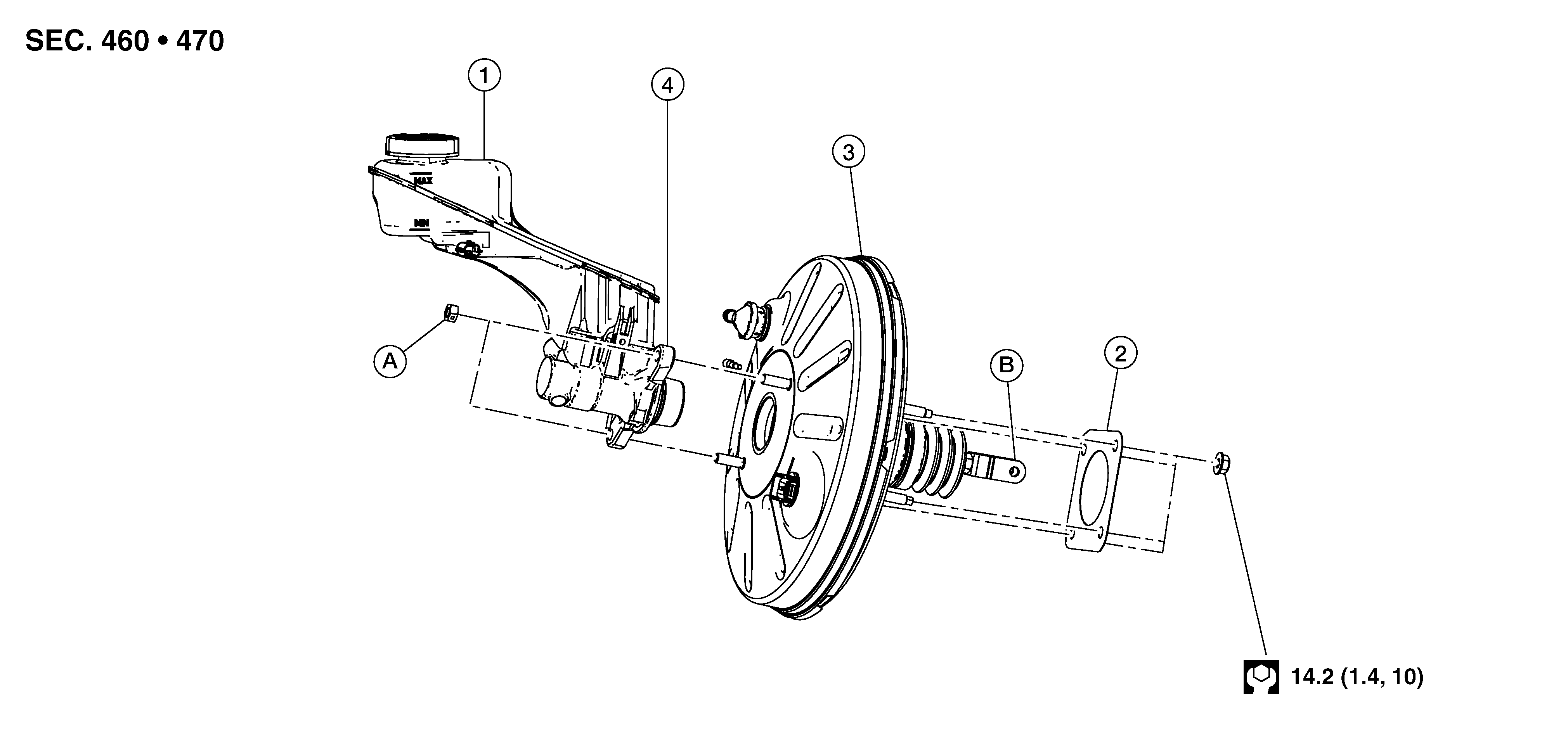

Fig 1: Brake Booster With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Reservoir tank	2.	Gasket	3.	Brake booster
4.	Master cylinder	A.	Master cylinder nut. Refer to Exploded View .	B.	Clevis
