Exploded View

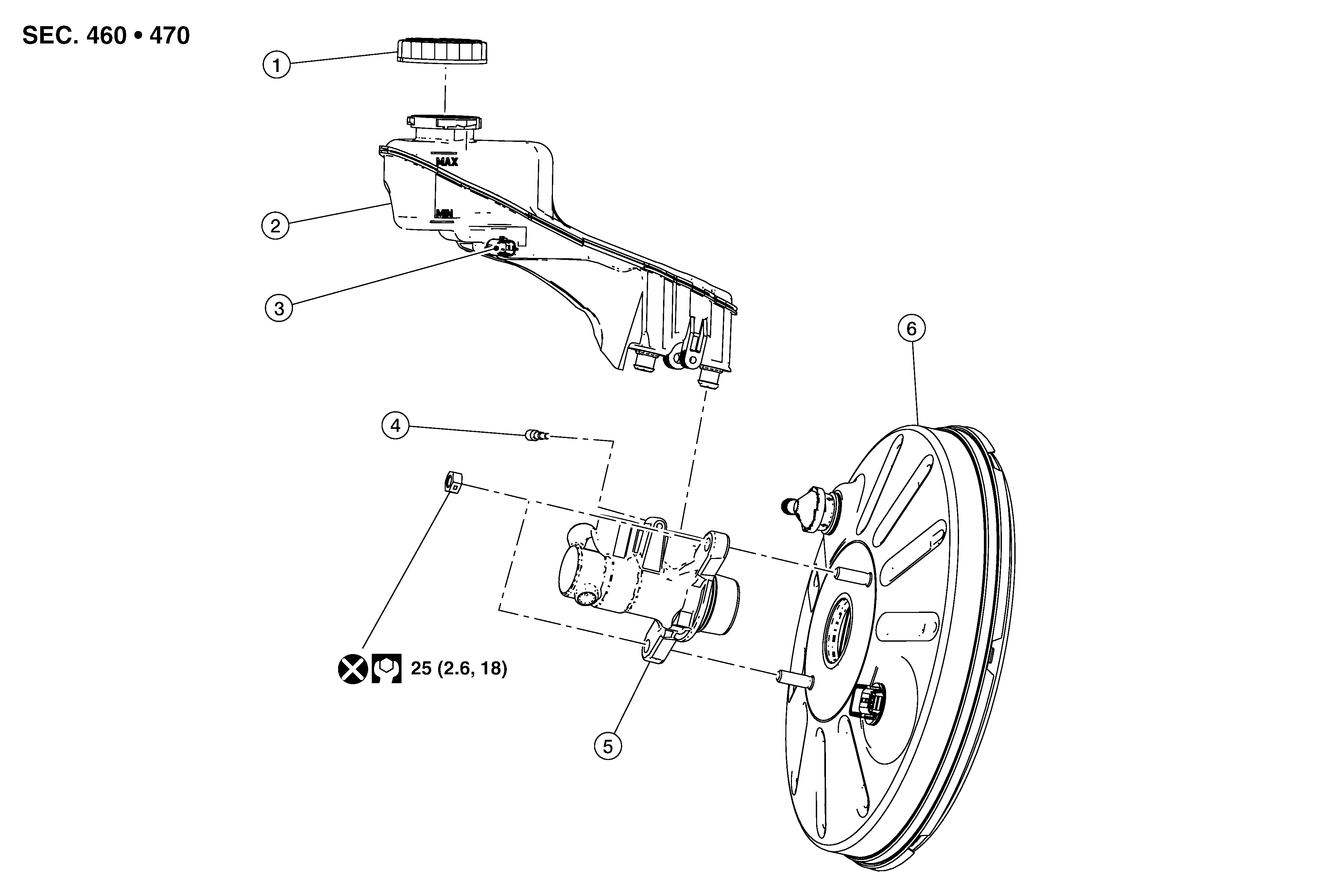

Fig 1: Brake Master Cylinder With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Reservoir tank cap	2.	Reservoir tank	3.	Brake fluid level sensor
4.	Reservoir roll pin	5.	Master cylinder	6.	Brake booster
