Component Parts Location

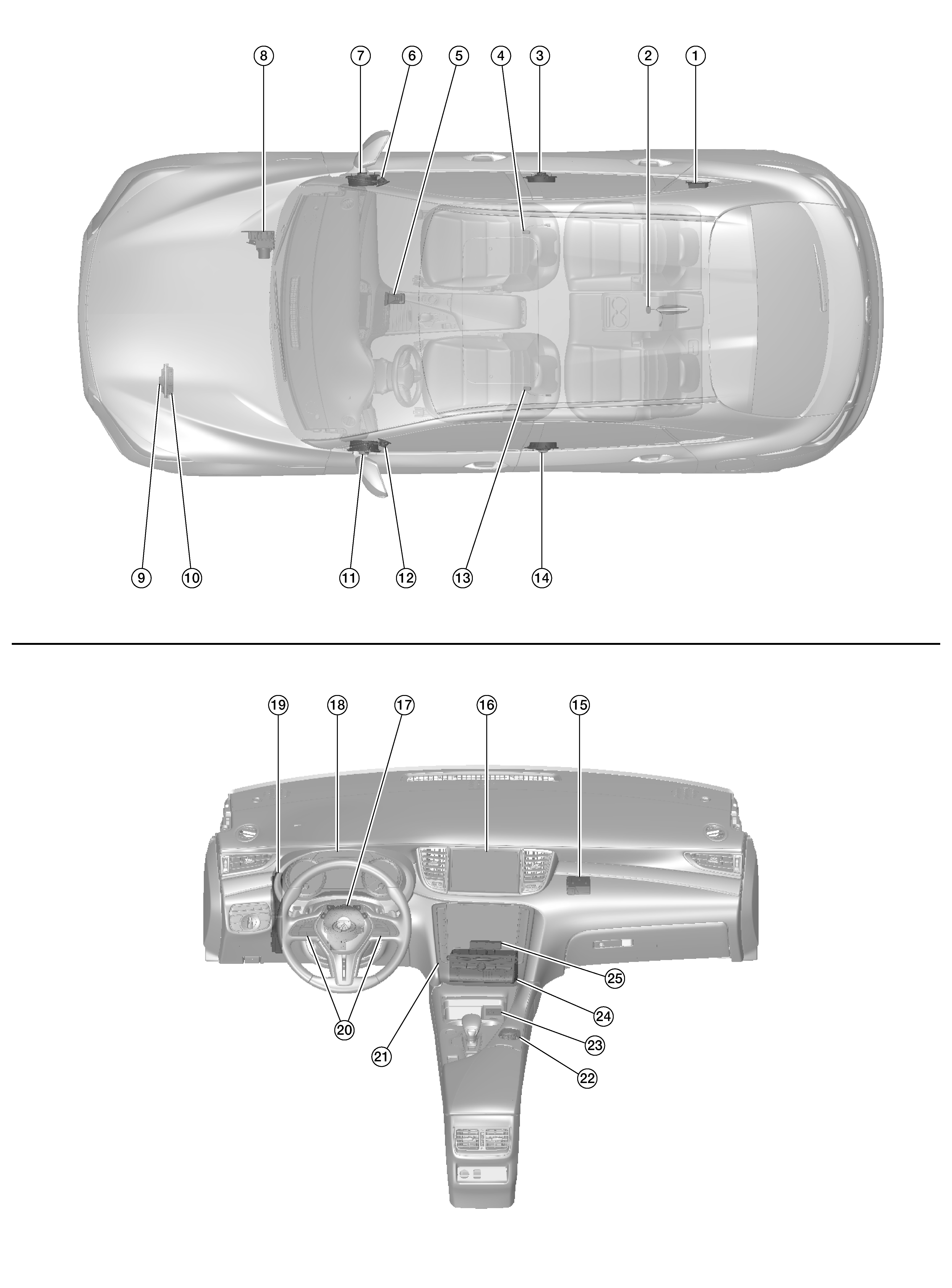

Infiniti Intouch Without Bose® Audio System

GNSDB140378Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
1. Active noise control unit Refer to Active Noise Control Unit .
2. Active noise control microphone (rear) Refer to Active Noise Control Microphone .
3. Rear door speaker RH Refer to Speakers .
4. Active noise control microphone RH (front) Refer to Active Noise Control Microphone .
5. Front camera unit Provides AV control unit with the speed limit display request signal via CAN communication.
6. Front door speaker RH upper Refer to Speakers .
7. Front door speaker RH lower
8. ABS (Anti-lock Braking System) actuator and electric unit (control unit) Provides AV control unit with the wheel speed signal via CAN communication.
9. TCM (Transmission Control Module) Provides AV control unit with the transmission range signal via CAN communication.
10. ECM (Engine Control Module)
  • Provides AV control unit with the engine rpm signal via CAN communication.
  • Provides active noise control unit with the engine rpm signal via CAN communication.
11. Front door speaker LH lower Refer to Speakers .
12. Front door speaker LH upper
13. Active noise control microphone LH (front) Refer to Active Noise Control Microphone .
14. Rear door speaker LH Refer to Speakers .
15. Chassis control module
  • Provides AV control unit with the mode switch status signal via CAN communication.
  • Provides active noise control unit with the mode switch status signal via CAN communication.
16. Display unit Refer to Display Unit .
17. Combination switch (spiral cable) Provides a pass-through for the steering switch signals from the steering switches to the combination meter.
18. Combination meter
  • Provides AV control unit with the steering switch signals via AV communication.
  • Provides AV control unit with the vehicle speed signal via CAN communication.
  • Provides active noise control unit with the vehicle speed signal via CAN communication.
19. BCM (Body Control Module)
  • Provides AV control unit with the door state switch signals via CAN communication.
  • Provides active noise control unit with the door state switch signals via CAN communication.
20. Steering switches Refer to Steering Switches .
21. Integral switch Refer to Integral Switch .
22. Multifunction switch Refer to Multifunction Switch .
23. Front auxiliary input jacks Refer to Front Auxiliary Input Jacks .
24. AV control unit Refer to AV Control Unit .
25. Front auxiliary input jacks control unit Refer to Front Auxiliary Input Jacks Control Unit .

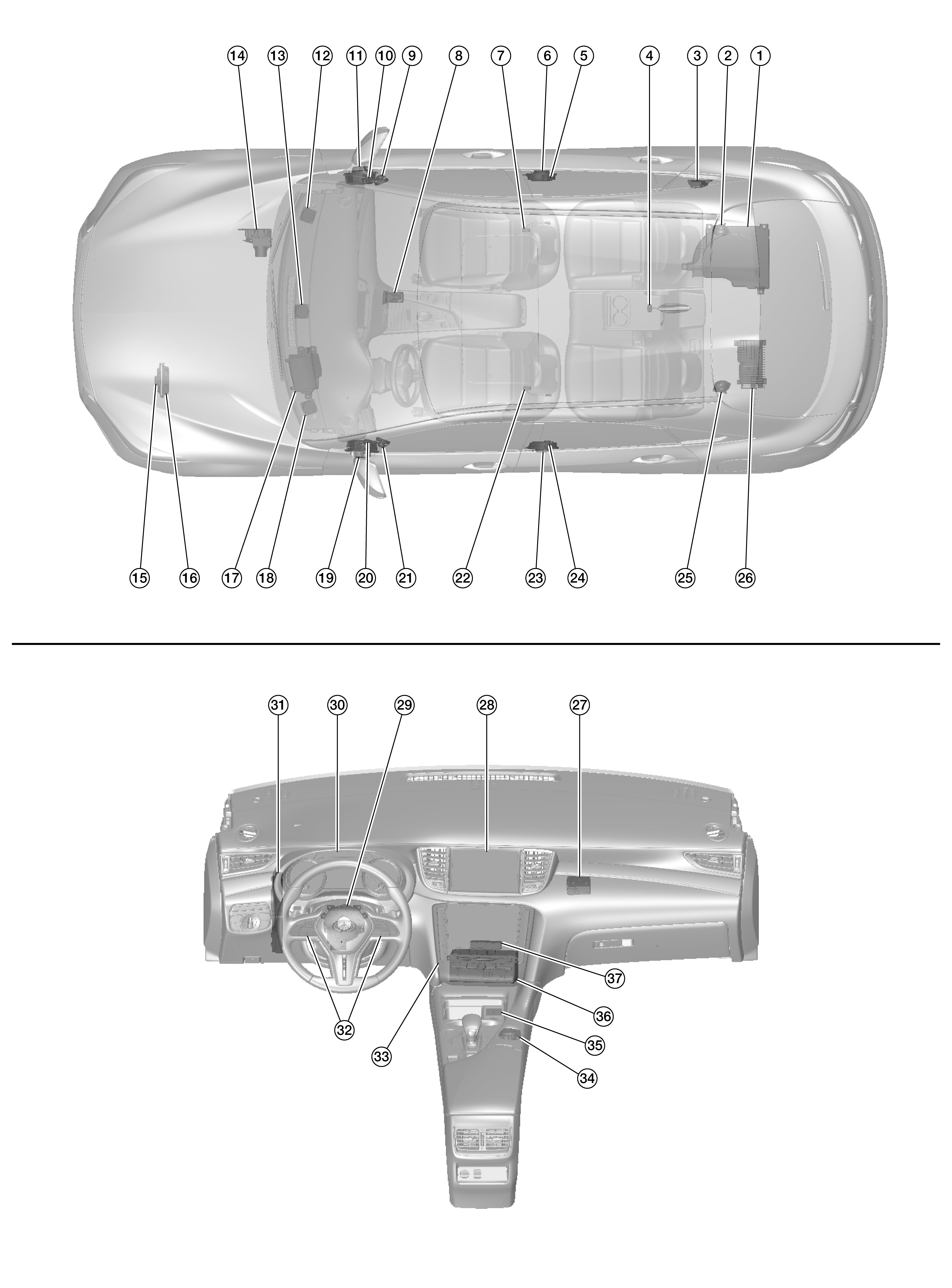

Infiniti Intouch With Bose® Audio System

GNSDB140257Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
1. Subwoofer Refer to Speakers .
2. Rear side speaker RH
3. Bose subwoofer amp. Refer to Bose Subwoofer Amp. .
4. Active noise control microphone (rear) Refer to Active Noise Control Microphone .
5. Rear door tweeter RH Refer to Speakers .
6. Rear door speaker RH
7. Active noise control microphone RH (front) Refer to Active Noise Control Microphone .
8. Front camera unit Provides AV control unit with the speed limit display request signal via CAN communication.
9. Front door speaker RH upper Refer to Speakers .
10. Front tweeter RH
11. Front door speaker RH lower
12. Instrument panel speaker RH
13. Center speaker
14. ABS (Anti-lock Braking System) actuator and electric unit (control unit) Provides AV control unit with the wheel speed signal via CAN communication.
15. TCM (Transmission Control Module) Provides AV control unit with the transmission range signal via CAN communication.
16. ECM (Engine Control Module) Provides AV control unit with the engine rpm signal via CAN communication.
17. Head up display unit Provides AV control unit with the head up display signals via AV communication.
18. Instrument panel speaker LH Refer to Speakers .
19. Front door speaker LH lower
20. Front tweeter LH
21. Front door speaker LH upper
22. Active noise control microphone LH (front) Refer to Active Noise Control Microphone .
23. Rear door speaker LH Refer to Speakers .
24. Rear door tweeter LH
25. Rear side speaker LH
26. Bose® speaker amp. Refer to Bose Speaker Amp. .
27. Chassis control module Provides AV control unit with the mode switch status signal via CAN communication.
28. Display unit Refer to Display Unit .
29. Combination switch (spiral cable) Provides a pass-through for the steering switch signals from the steering switches to the combination meter.
30. Combination meter
  • Provides AV control unit with the steering switch signals via AV communication.
  • Provides AV control unit with the vehicle speed signal via CAN communication.
31. BCM (Body Control Module) Provides AV control unit with the door state switch signals via CAN communication.
32. Steering switches Refer to Steering Switches .
33. Integral switch Refer to Integral Switch .
34. Multifunction switch Refer to Multifunction Switch .
35. Front auxiliary input jacks Refer to Front Auxiliary Input Jacks .
36. AV control unit Refer to AV Control Unit .
37. Front auxiliary input jacks control unit Refer to Front Auxiliary Input Jacks Control Unit .
