INFINITI INTOUCH: Speakers

WITHOUT BOSE AUDIO SYSTEM

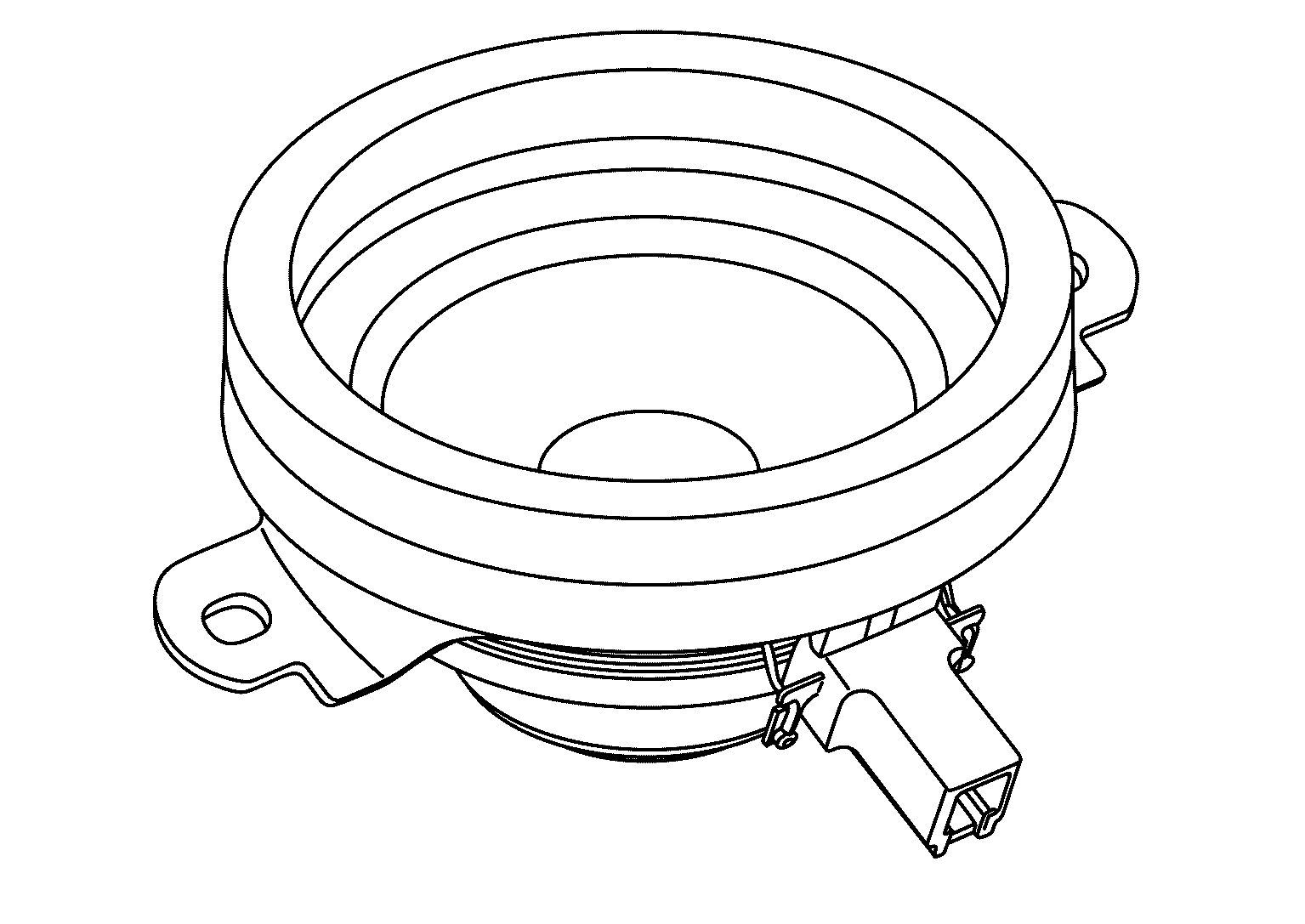

FRONT DOOR SPEAKER UPPER

• 6.3 cm (2.5 in) speakers are installed in the front upper half of the front door.

  Courtesy of NISSAN NORTH AMERICA, INC.

• Sound signals generated by the AV control unit output mid range sounds.

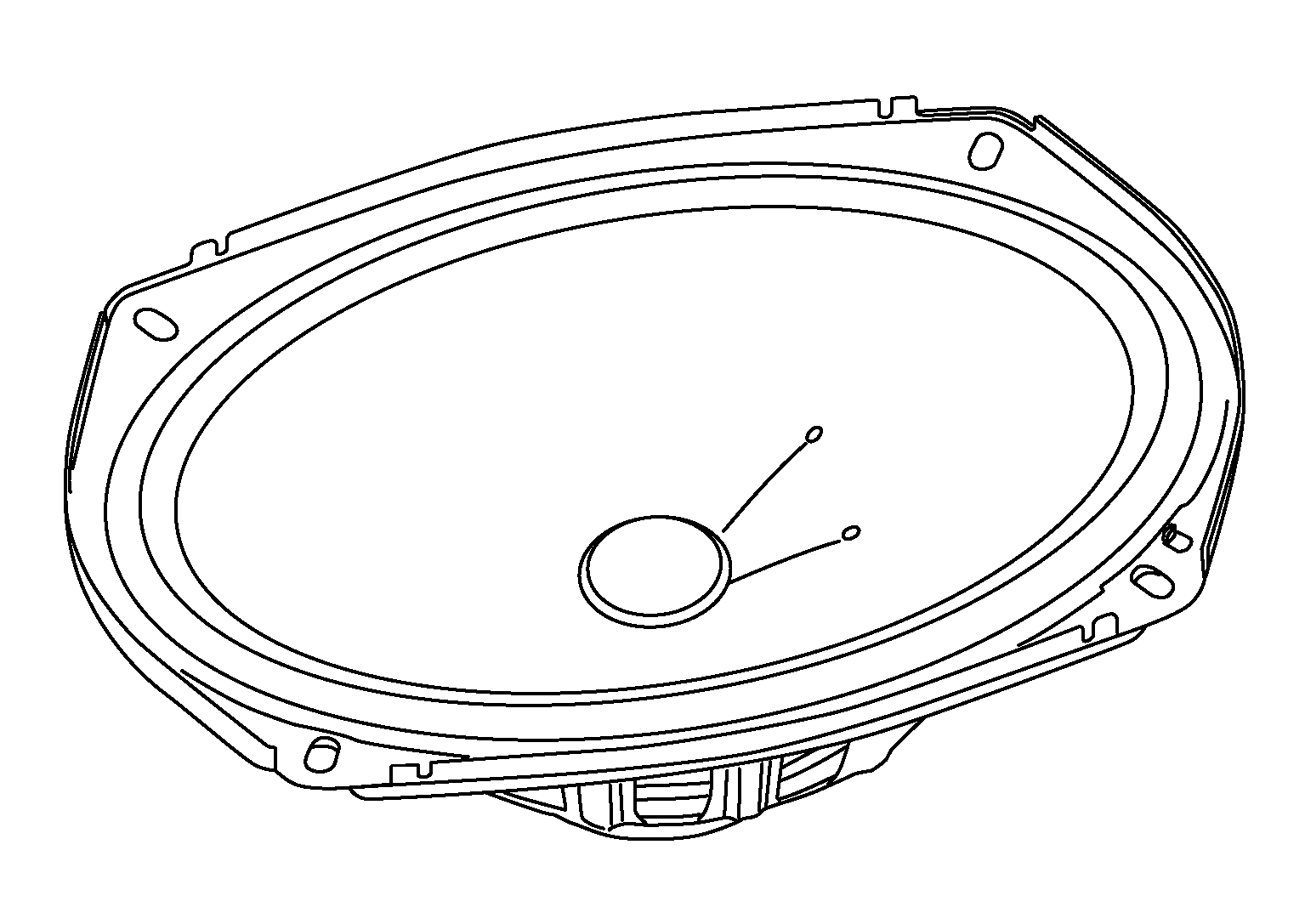

FRONT DOOR SPEAKER LOWER

• 15.2 x 22.9 cm (6 x 9 in) speakers are installed in the front lower half of the front door.

  Courtesy of NISSAN NORTH AMERICA, INC.

• Sound signals generated by the AV control unit output low range sound.

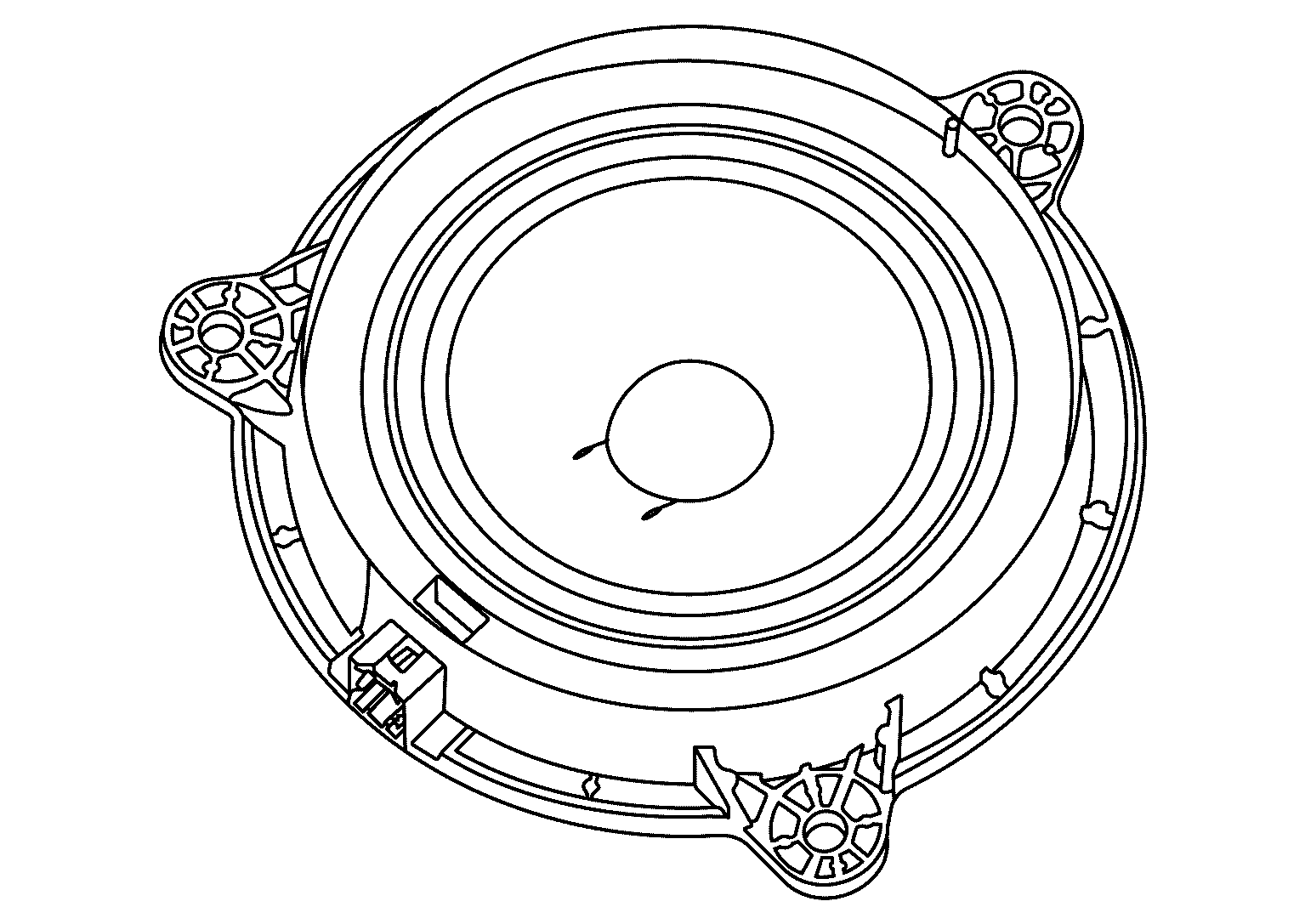

REAR DOOR SPEAKER

• 16.5 cm (6.5 in) speakers are installed in the front lower half of the rear door.

  Courtesy of NISSAN NORTH AMERICA, INC.

• Sound signals generated by the AV control unit output mid and low range sounds.

WITH BOSE AUDIO SYSTEM

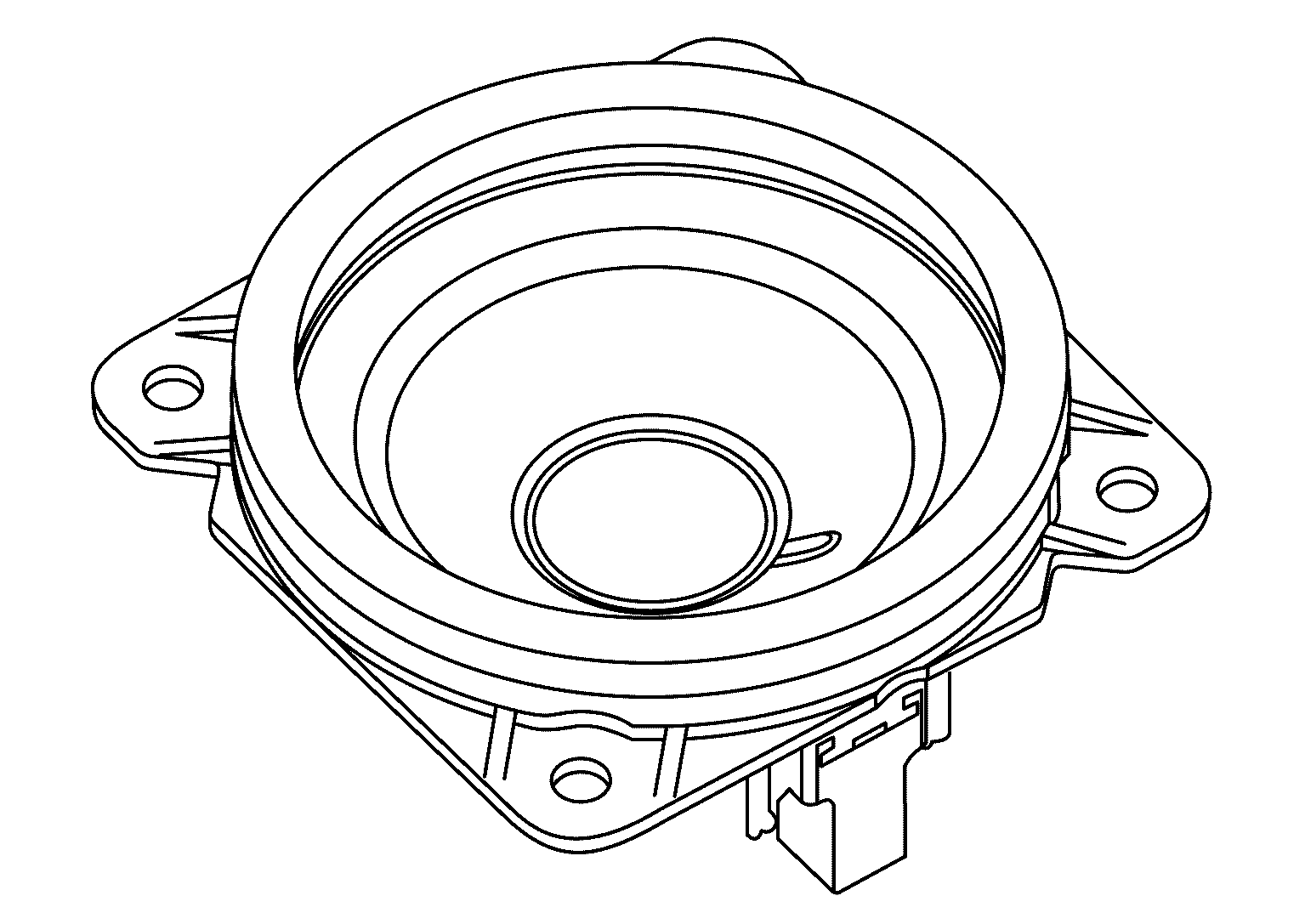

INSTRUMENT PANEL SPEAKER

• 8.0 cm (3 in) speakers are installed in the top corners of the instrument panel assembly.

  Courtesy of NISSAN NORTH AMERICA, INC.

• Sound signals generated by the Bose speaker amp. output high and mid range sounds.

CENTER SPEAKER

• 8.0 cm (3 in) speaker is installed in the top center of the instrument panel assembly.

  Courtesy of NISSAN NORTH AMERICA, INC.

• Sound signals generated by the Bose speaker amp. output high and mid range sounds.

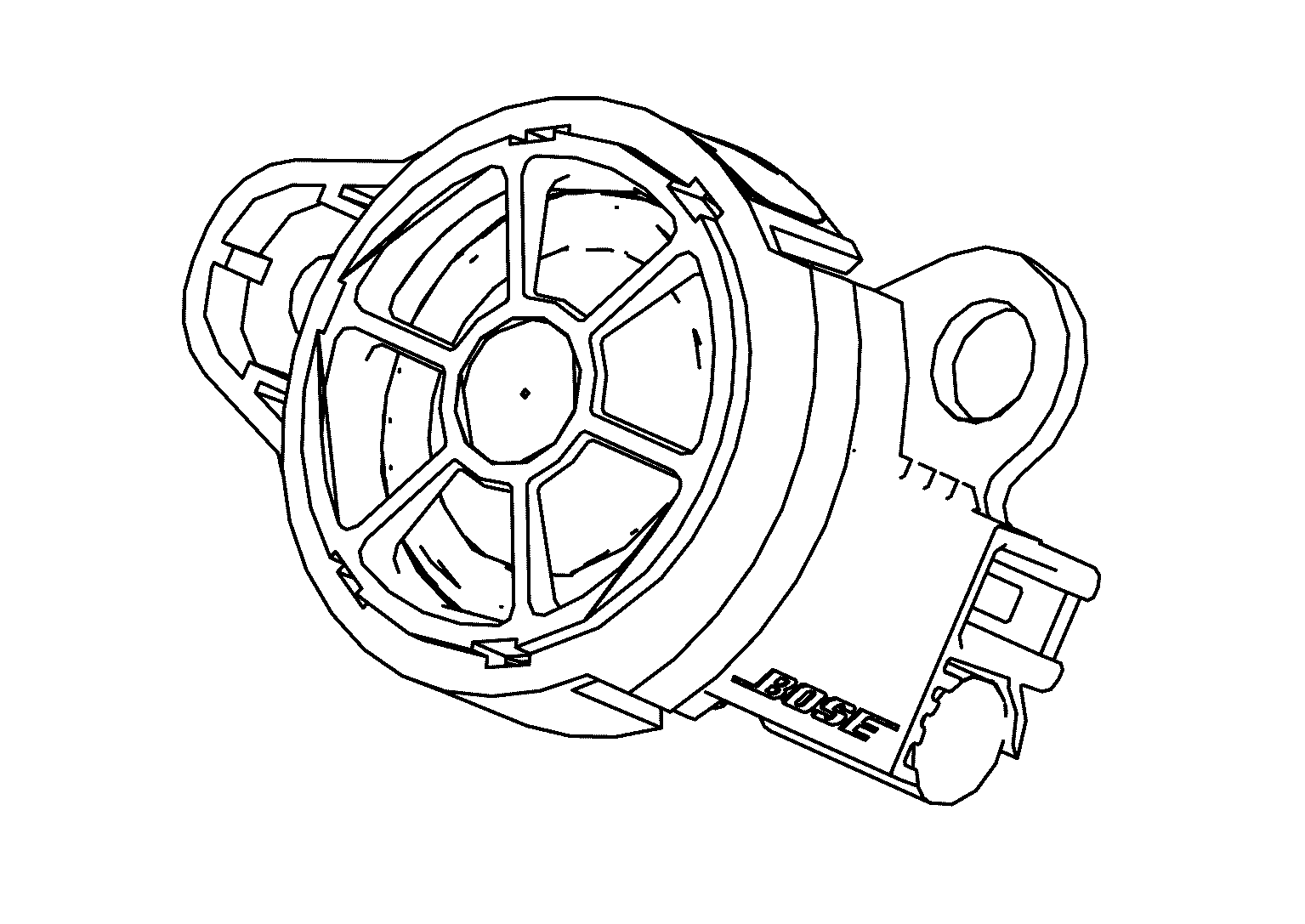

FRONT TWEETER

• 2.5 cm (1 in) speakers are installed in the front door sash inner cover.

  Courtesy of NISSAN NORTH AMERICA, INC.

• Sound signals generated by the Bose speaker amp. output high range sounds.

FRONT DOOR SPEAKER UPPER

• 8.0 cm (3 in) speakers are installed in the front upper half of the front door.

  Courtesy of NISSAN NORTH AMERICA, INC.

• Sound signals generated by the Bose speaker amp. output mid range sounds.

FRONT DOOR SPEAKER LOWER

• 15.2 x 22.9 cm (6 x 9 in) speakers are installed in the front lower half of the front door.

  Courtesy of NISSAN NORTH AMERICA, INC.

• Sound signals generated by the Bose speaker amp. output low range sound.

REAR DOOR TWEETER

• 2.5 cm (1 in) speakers are installed in the front upper half of the rear door.

  Courtesy of NISSAN NORTH AMERICA, INC.

• Sound signals generated by the Bose speaker amp. output high range sounds.

REAR DOOR SPEAKER

• 16.5 cm (6.5 in) speakers are installed in the front lower half of the rear door.

  Courtesy of NISSAN NORTH AMERICA, INC.

• Sound signals generated by the Bose speaker amp. output mid and low range sounds.

REAR SIDE SPEAKER

• 8.0 cm (3 in) speakers are installed in the luggage side lower finishers.

  Courtesy of NISSAN NORTH AMERICA, INC.

• Sound signals generated by the Bose speaker amp. output mid range sounds.

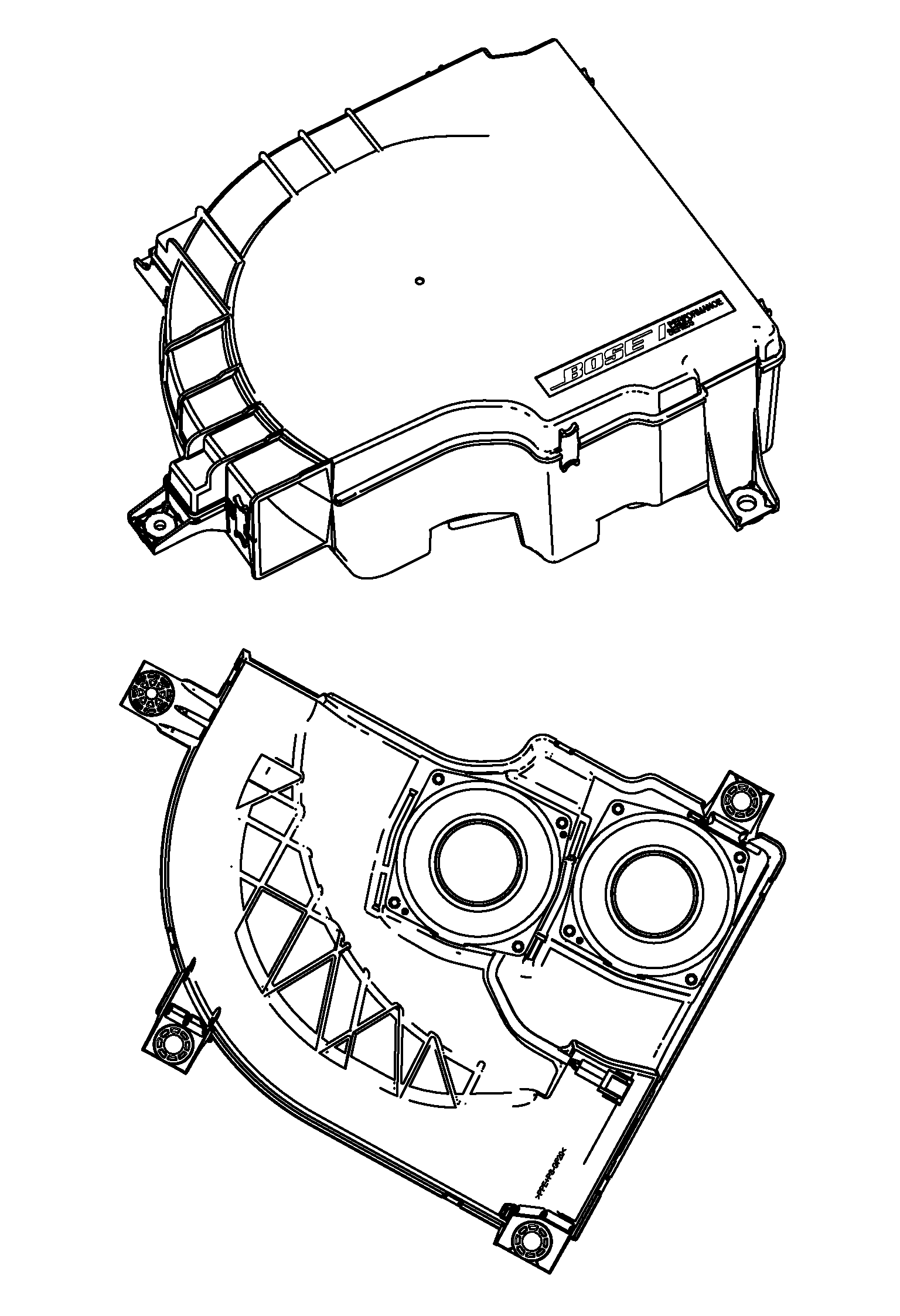

SUBWOOFER

• The subwoofer enclosure contains two 12.7 cm (5 in) speakers and is installed in the cargo compartment under the front of the storage box lid.

  Courtesy of NISSAN NORTH AMERICA, INC.

• Sound signals generated by the Bose subwoofer amp. output low range sounds.
