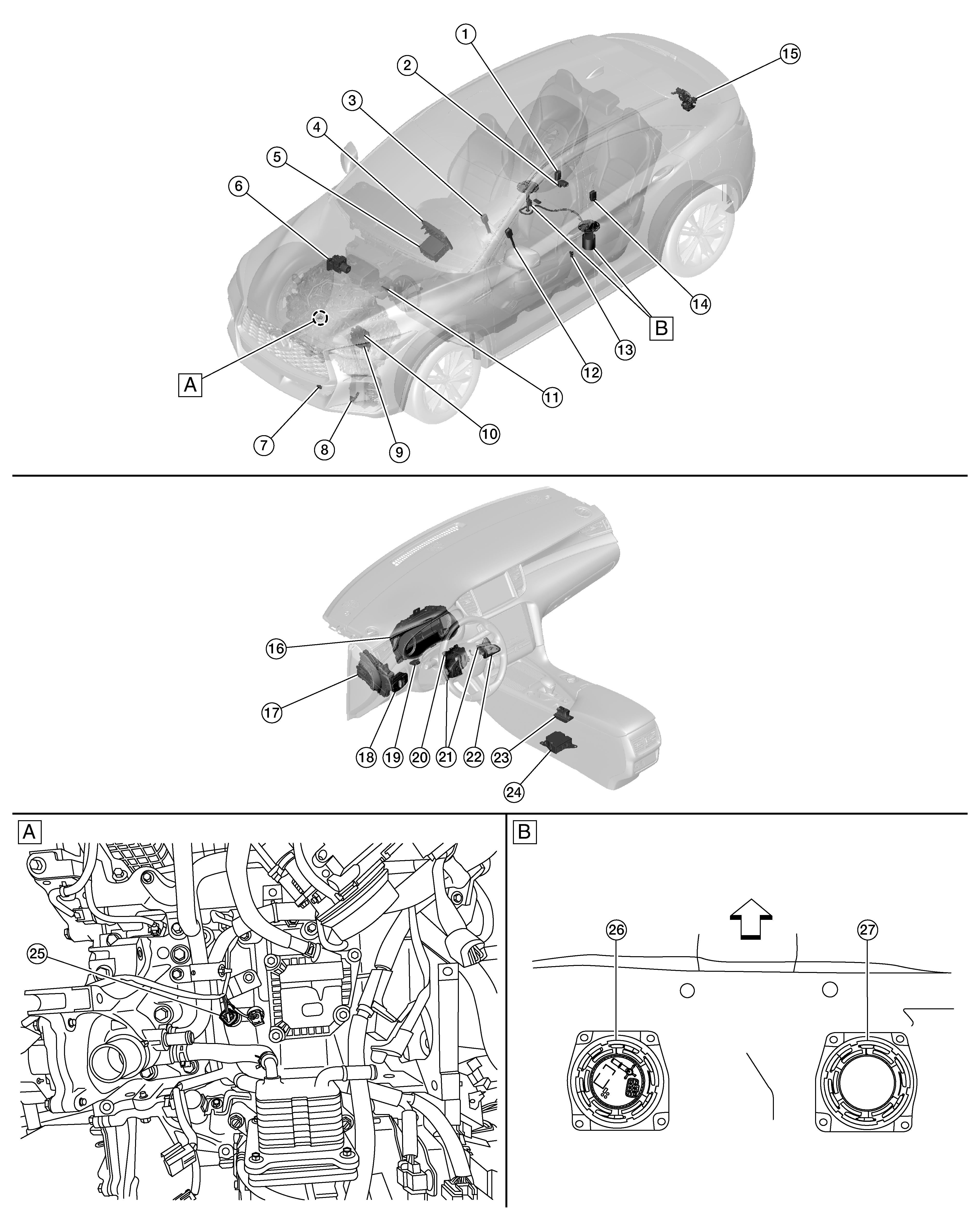

| 1. |
Rear seat belt buckle switch RH |
Transmits the rear seat belt buckle switch RH signal to the air bag diagnosis sensor unit. |
| 2. |
Rear seat belt buckle switch center |
Transmits the rear seat belt buckle switch center signal to the air bag diagnosis sensor unit. |
| 3. |
Front seat belt buckle switch RH |
Transmits the front seat belt buckle switch RH signal to the air bag diagnosis sensor unit. |
| 4. |
Integral switch |
Transmits the meter setting request signal to the combination meter. |
| 5. |
AV control unit |
Transmits each signal to the combination meter via CAN communication. Refer to System Description
. Refer to Component Location
for detailed component location. |
| 6. |
ABS (Anti-lock Braking System) actuator and electric unit (control unit) |
Transmits each signal to the combination meter via CAN communication. Refer to System Description
. Refer to Component Location
for detailed component location. |
| 7. |
Ambient sensor |
Transmits the ambient sensor signal to the combination meter. |
| 8. |
Washer fluid level switch |
Transmits the washer fluid level switch signal to the combination meter. Refer to Component Location
for detailed component location. |
| 9. |
TCM (Transmission Control Module) |
Transmits each signal to the combination meter via CAN communication. Refer to System Description
. Refer to Component Location
for detailed component location. |
| 10. |
ECM (Engine Control Module) |
Refer to System Description
. Refer to Component Location
for detailed component location. |
| 11. |
Brake fluid level switch |
Transmits a brake fluid level switch signal to the combination meter. |
| 12. |
Front seat belt buckle switch LH |
Transmits a front seat belt buckle switch LH signal to the combination meter. |
| 13. |
Front door switch LH |
Door switch detects open/close status of door and transmits door switch signal to BCM. |
| 14. |
Rear seat belt buckle switch LH |
Transmits the rear seat belt buckle switch LH signal to the air bag diagnosis sensor unit. |
| 15. |
Back door lock assembly (door ajar switch) |
Transmits the back door ajar switch signal to the BCM. |
| 16. |
Combination meter |
Refer to System Description . |
| 17. |
BCM (Body Control Module) |
Transmits each signal to the combination meter via CAN communication. Refer to System Description
. Refer to Component Location
for detailed component location. |
| 18. |
Master light switch (Illumination control switch) |
Refer to Master Light Switch (Illumination Control Switch) . |
| 19. |
Trip reset switch |
Refer to Trip Reset Switch . |
| 20. |
Combination switch (spiral cable) |
Provides a pass-through for the steering switch signal from the steering switches to the combination meter. |
| 21. |
Paddle shifter |
Transmits the paddle shifter signal to the combination meter. |
| 22. |
Steering switches |
Refer to Steering Switches . |
| 23. |
Electric parking brake switch |
Transmits the electric parking brake switch signal to the electric parking brake control module. |
| 24. |
Air bag diagnosis sensor unit |
Transmits the following seat belt buckle switch signals to the combination meter via CAN communication:
- Front seat belt buckle switch RH
- Rear seat belt buckle switch RH
- Rear seat belt buckle switch center
- Rear seat belt buckle switch LH
Refer to Component Location
for detailed component location. |
| 25. |
Engine oil pressure sensor |
Transmits the engine oil pressure sensor signal to the ECM. |
| 26. |
Fuel level sensor unit and fuel pump (fuel level sensor) (main) |
Transmits the fuel level sensor signal to the combination meter. |
| 27. |
Fuel level sensor unit (sub) |
Transmits the fuel level sensor signal to the combination meter. |
