Removal and Installation

REMOVAL

1. Remove cluster lid A. Refer to Removal and Installation .

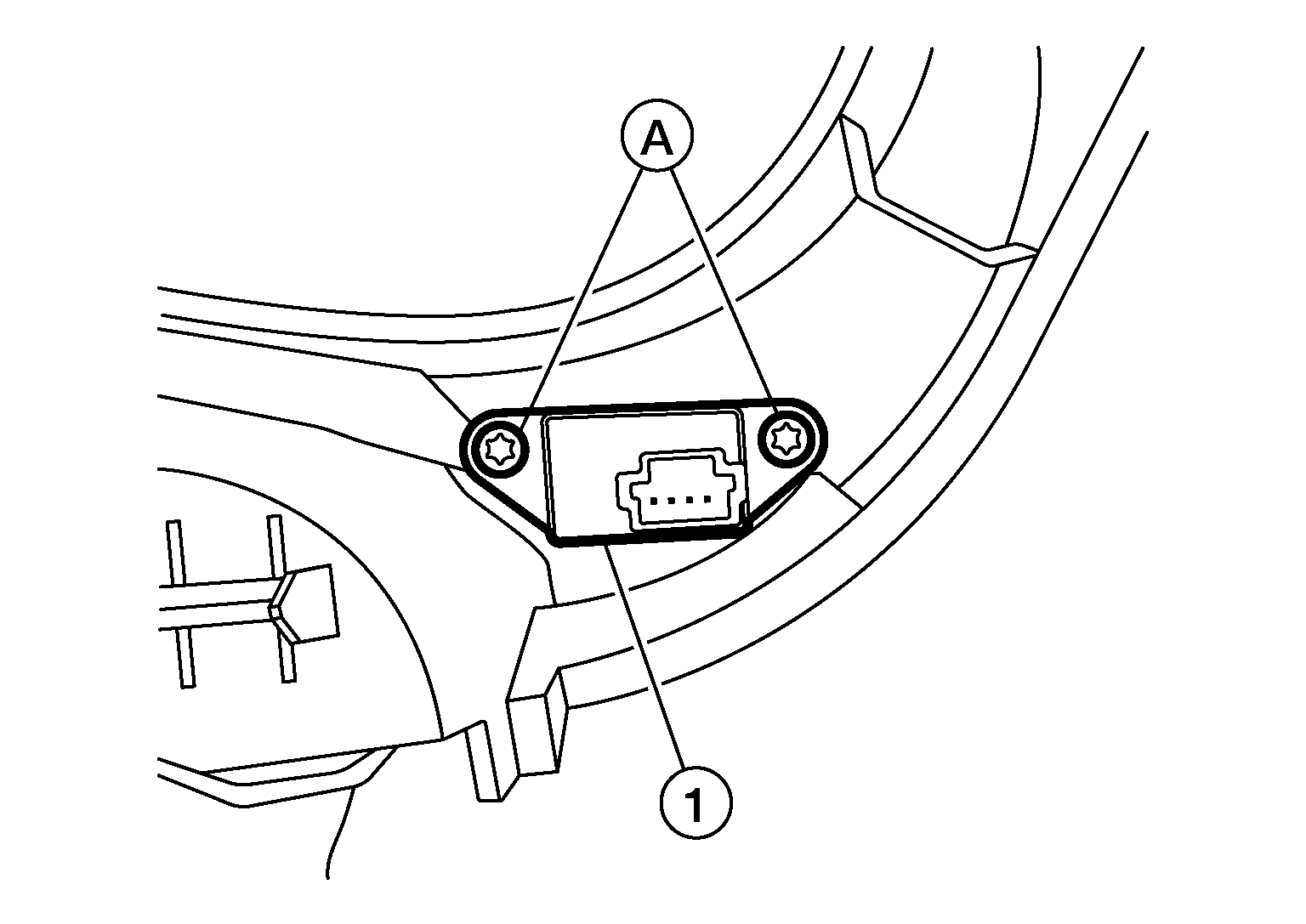

2. Remove the screws (A) from the trip reset switch (1).

   Courtesy of NISSAN NORTH AMERICA, INC.

3. Disconnect the harness connector from the trip reset switch.
4. Remove the trip reset switch.

INSTALLATION

Installation is in the reverse order of removal.
