Removal and Installation

CAUTION:

Before replacing the sonar control unit, perform "ADDITIONAL SERVICE WHEN REPLACING SONAR CONTROL UNIT". Refer to Description .

REMOVAL

Remove the glove box. Refer to Removal and Installation .
Disconnect the harness connector from the sonar control unit.

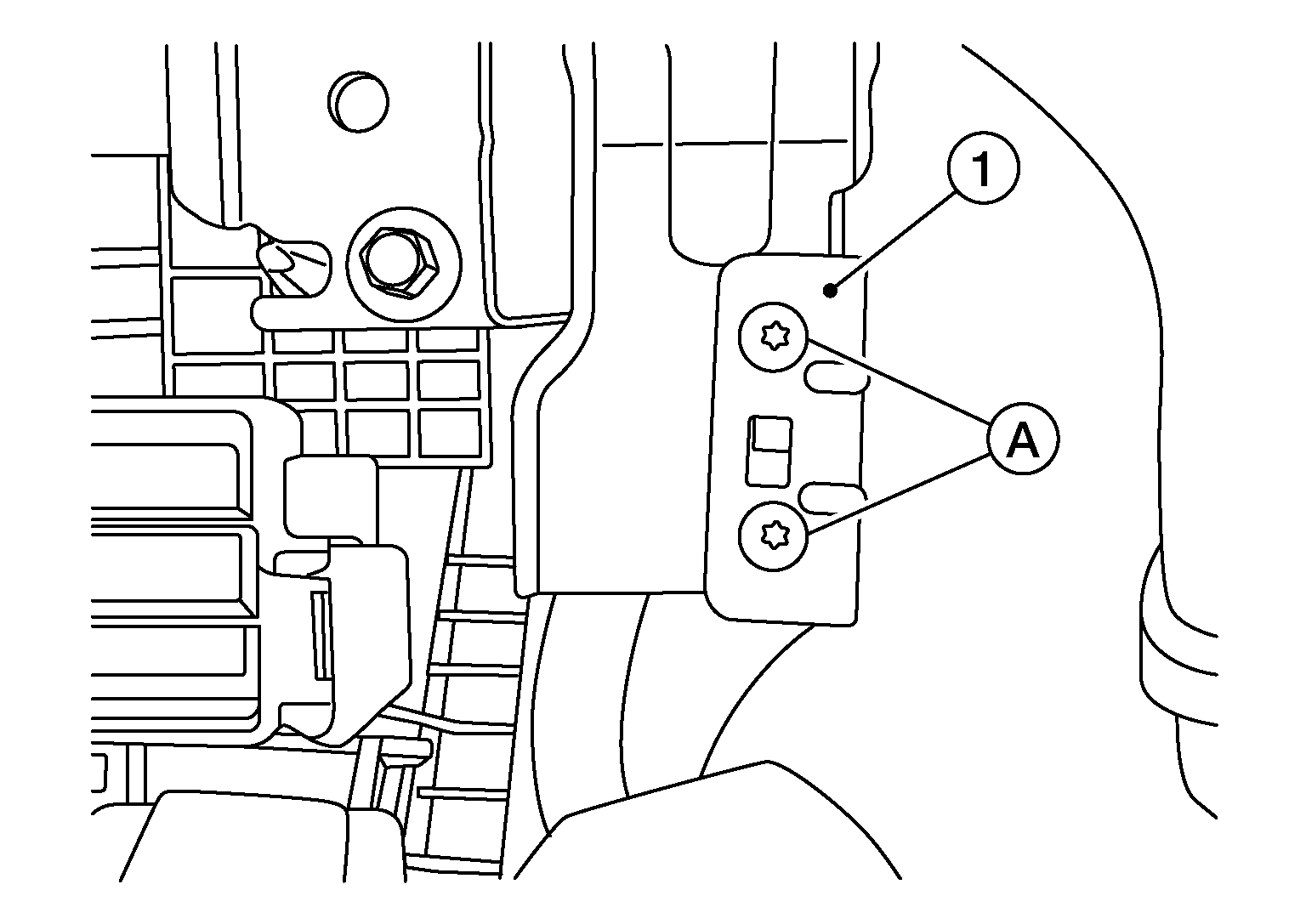

Remove screws (A) and the sonar control unit bracket (1).

Courtesy of NISSAN NORTH AMERICA, INC.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Be sure to perform "ADDITIONAL SERVICE WHEN REPLACING SONAR CONTROL UNIT" when replacing sonar control unit. Refer to Description .
