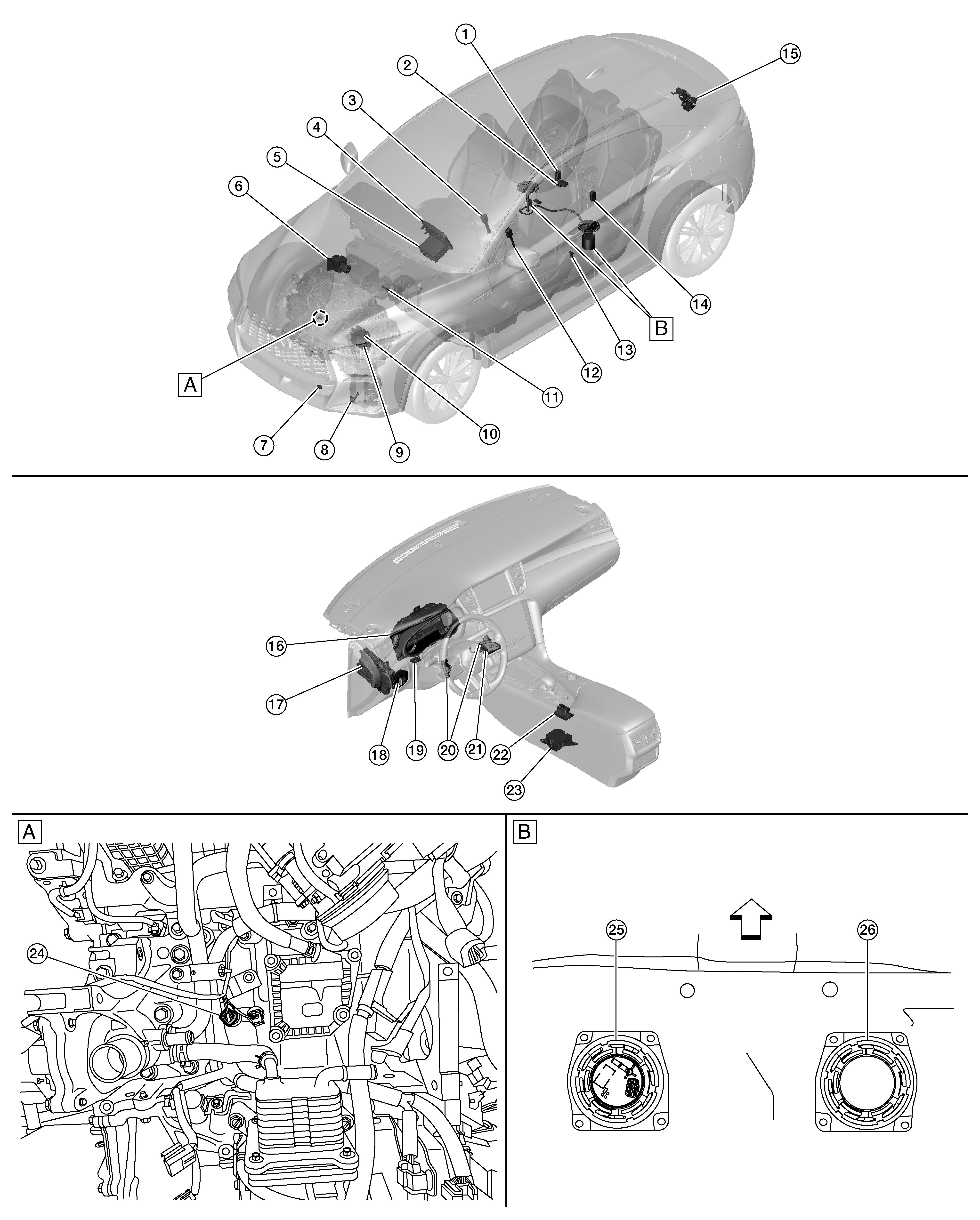

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

	Vehicle front
A.	View with engine assembly removed	B.	View of the fuel pump and fuel level sensor inspection hole covers with the rear seat removed

No.	Component	Function
1.	Rear seat belt buckle switch RH	Transmits the rear seat belt buckle switch RH signal to the air bag diagnosis sensor unit.
2.	Rear seat belt buckle switch center	Transmits the rear seat belt buckle switch center signal to the air bag diagnosis sensor unit.
3.	Front seat belt buckle switch RH	Transmits the front seat belt buckle switch RH signal to the air bag diagnosis sensor unit.
4.	Integral switch	Transmits the meter setting request signal to the combination meter.
5.	AV control unit	Transmits each signal to the combination meter via CAN communication. Refer to System Description . Refer to Component Location for detailed component location.
6.	ABS (Anti-lock Braking System) actuator and electric unit (control unit)	Transmits each signal to the combination meter via CAN communication. Refer to System Description . Refer to Component Location for detailed component location.
7.	Ambient sensor	Transmits the ambient sensor signal to the combination meter.
8.	Washer fluid level switch	Transmits the washer fluid level switch signal to the combination meter. Refer to Component Location for detailed component location.
9.	TCM (Transmission Control Module)	Transmits each signal to the combination meter via CAN communication. Refer to System Description . Refer to Component Location for detailed component location.
10.	ECM (Engine Control Module)	Refer to System Description . Refer to Component Location for detailed component location.
11.	Brake fluid level switch	Transmits a brake fluid level switch signal to the combination meter.
12.	Front seat belt buckle switch LH	Transmits a front seat belt buckle switch LH signal to the combination meter.
13.	Front door switch LH	Door switch detects open/close status of door and transmits door switch signal to BCM.
14.	Rear seat belt buckle switch LH	Transmits the rear seat belt buckle switch LH signal to the air bag diagnosis sensor unit.
15.	Back door lock assembly (door ajar switch)	Transmits the back door ajar switch signal to the BCM.
16.	Combination meter	Refer to System Description .
17.	BCM (Body Control Module)	Transmits each signal to the combination meter via CAN communication. Refer to System Description . Refer to Component Location for detailed component location.
18.	Master light switch (Illumination control switch)	Refer to Illumination Control Switch .
19.	Trip reset switch	Refer to Trip Reset Switch .
20.	Paddle shifter	Transmits the paddle shifter signal to the combination meter.
21.	Steering switches	Refer to Steering Switches .
22.	Electric parking brake switch	Transmits the electric parking brake switch signal to the electric parking brake control module.
23.	Air bag diagnosis sensor unit	Transmits the following seat belt buckle switch signals to the combination meter via CAN communication: Front seat belt buckle switch RH Rear seat belt buckle switch RH Rear seat belt buckle switch center Rear seat belt buckle switch LH Refer to Component Location for detailed component location.
24.	Engine oil pressure sensor	Transmits the engine oil pressure sensor signal to the ECM.
25.	Fuel level sensor unit and fuel pump (fuel level sensor) (main)	Transmits the fuel level sensor signal to the combination meter.
26.	Fuel level sensor unit (sub)	Transmits the fuel level sensor signal to the combination meter.
