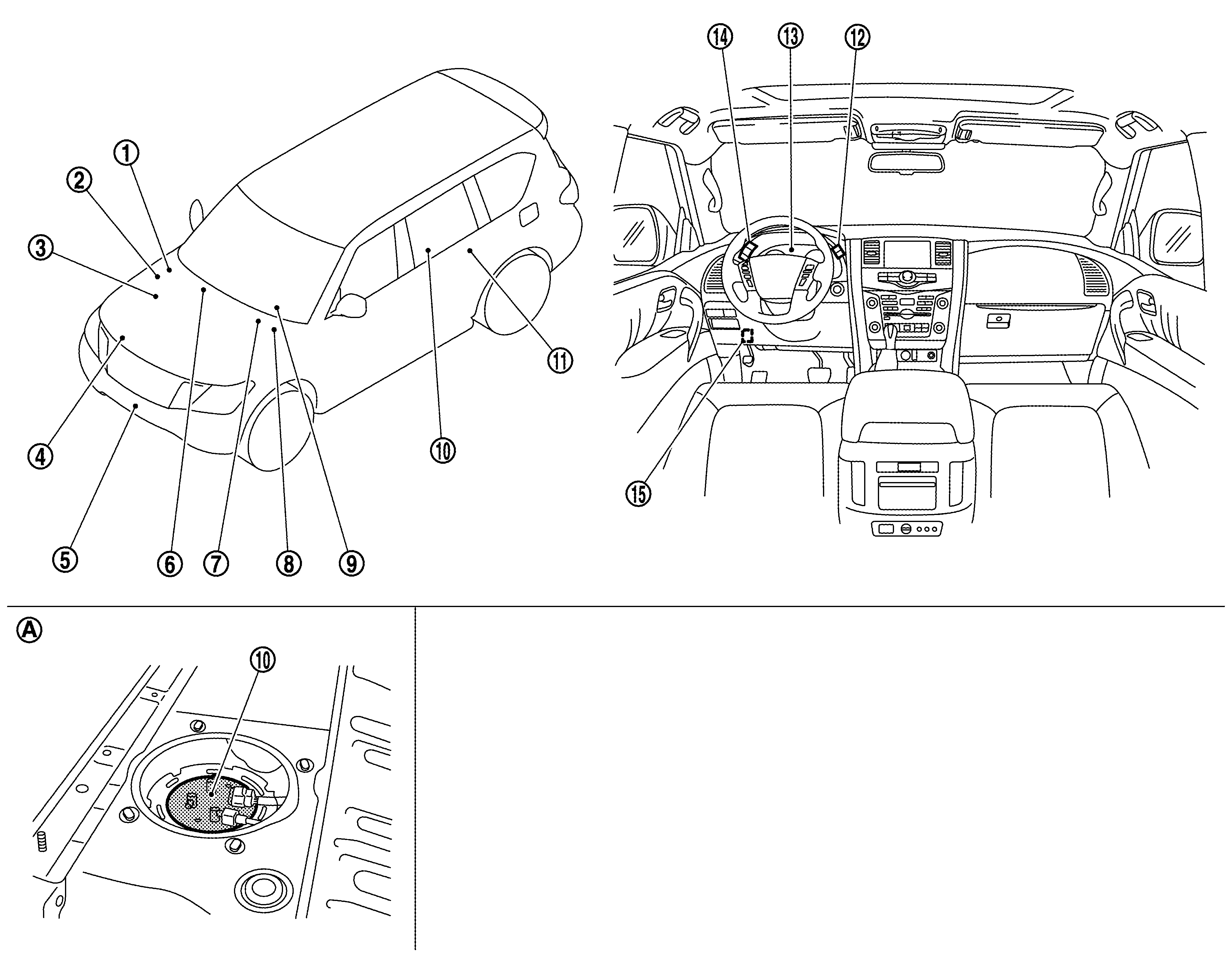

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

1.	IPDM E/R Refer to Component Location .	2.	ECM Refer to Component Location .	3.	Washer level switch
4.	Engine oil pressure sensor Refer to OIL PAN (UPPER) : Exploded View .	5.	Ambient sensor	6.	A/C auto amp. Refer to Component Location . (Front automatic air conditioning system) Refer to Component Location . (Rear automatic air conditioning system)
7.	TCM Refer to Component Location .	8.	ABS actuator and electric unit (control unit) Refer to Component Location .	9.	BCM Refer to Component Location .
10.	Fuel level sensor unit	11.	ADAS control unit Refer to Component Location .	12.	Trip computer switch
13.	Combination meter	14.	Trip reset and illumination control switch	15.	Parking brake switch
A.	Under of left side second seat

Unit	Description
Combination meter	Controls the following with the signals received from each unit via CAN communication and the signals from switches and sensors. Speedometer Tachometer Engine coolant temperature gauge Fuel gauge Warning lamps Indicator lamps Meter illumination control Meter effect function Information display
Trip computer switch	Transmits the following signals to the combination meter. Enter switch signal Select switch signal
Trip reset and illumination control switch	Transmits the following signals to the combination meter. Trip reset switch signal Illumination control switch signal (+) Illumination control switch signal (-)
ECM	Transmits the following signals to the combination meter via CAN communication. Engine speed signal Engine coolant temperature signal Engine status signal Fuel consumption monitor signal Fuel filler cap warning display signal Oil pressure warning lamp signal
ABS actuator and electric unit (control unit)	Transmits the vehicle speed signal to the combination meter via CAN communication.
BCM	Transmits the following signals to the combination meter via CAN communication. Position light request signal Dimmer signal Door switch signal Meter ring illumination request signal Starter relay status signal Meter display signal Low tire pressure warning lamp signal
ADAS control unit	Transmits the meter display signal to the combination meter via CAN communication.
TCM	Transmits the shift position signal to the combination meter via CAN communication.
A/T shift selector	Transmits the following signals to the combination meter. Manual mode signal Non-manual mode signal Manual mode shift up signal Manual mode shift down signal
Fuel level sensor unit	Transmits the fuel level sensor signal to the combination meter.
Engine oil pressure sensor	Transmits the engine oil pressure sensor signal to the ECM.
Ambient sensor	Transmits the ambient sensor signal to the combination meter.
A/C auto amp.	Transmits the A/C auto amp. connection recognition signal to the combination meter.
Parking brake switch	Transmits the parking brake switch signal to the combination meter.
Washer level switch	Transmits the washer level switch signal to the combination meter.
