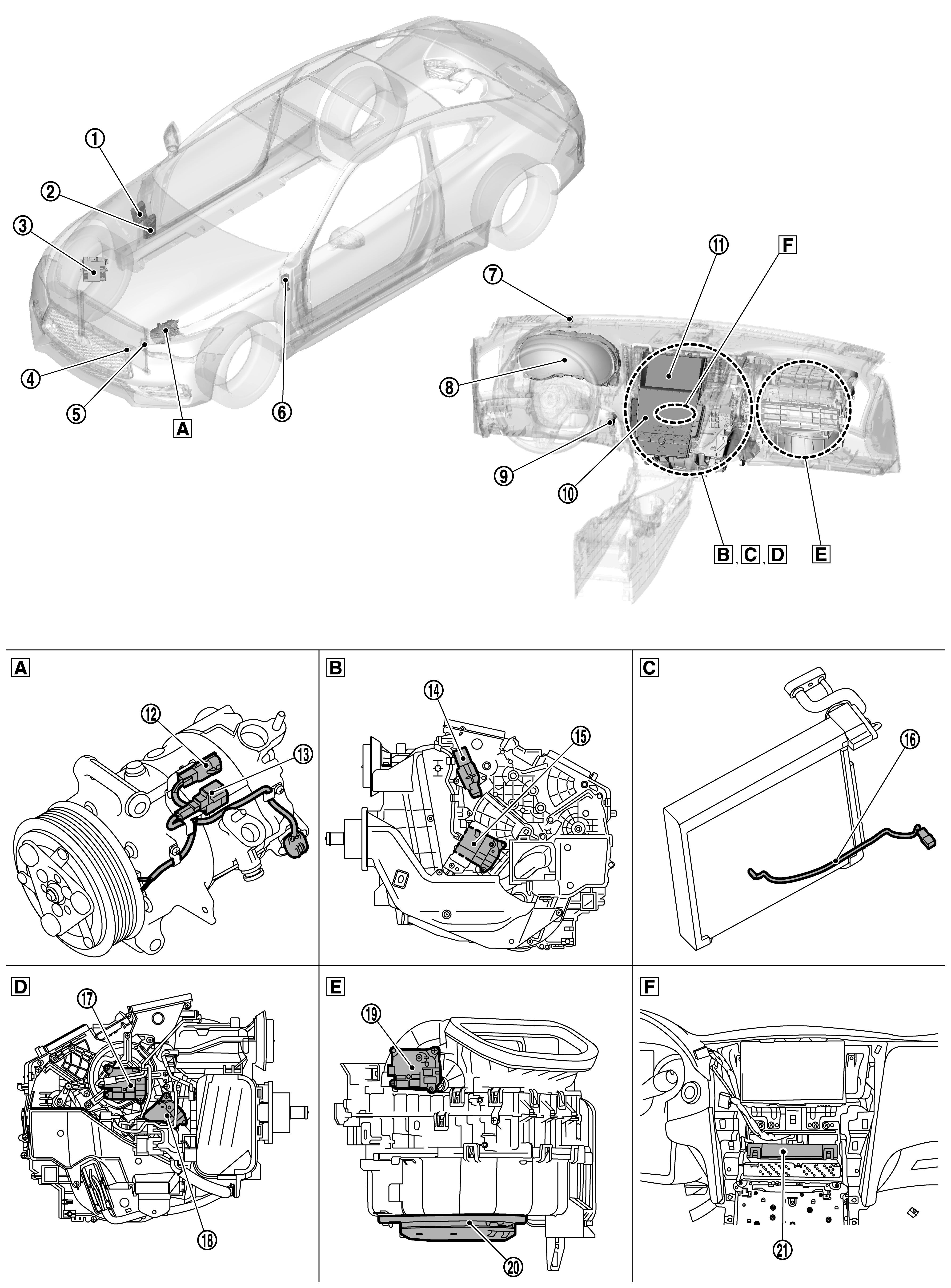

Component Location
|
|
Compressor |
|
Left side of heater & cooling unit assembly |
|
Evaporator |
|
|
Right side of heater & cooling unit assembly |
|
Blower unit assembly |
|
Integral switch is removed |
|
No. |
Component |
Function |
|
|
|
IPDM E/R |
A/C relay is integrated in IPDM E/R. IPDM E/R operates A/C relay when receiving A/C compressor request signal from ECM via CAN communication line. Refer to Component Location . for detailed installation location. |
|
|
|
BCM |
BCM transmits key ID signal to A/C auto amp. via CAN communication line. Refer to Component Location . for detailed installation location. |
|
|
|
ECM |
ECM, when receiving A/C ON signal and blower fan ON signal from A/C auto amp., transmits A/C compressor request signal to IPDM E/R via CAN communication line according to status of the engine and refrigerant pressure. ECM transmits engine coolant temperature signal to A/C auto amp. via CAN communication line. Refer to Component Location . |
|
|
|
Ambient sensor |
Refer to Component Description . |
|
|
|
Refrigerant pressure sensor |
Refer to Component Description . |
|
|
|
Chassis control module |
Chassis control module transmits key link signal and log-in permit signal to auto amp. via CAN communication line. Refer to Component Description . |
|
|
|
Sunload sensor |
Refer to Component Description . |
|
|
|
Combination meter |
Combination meter transmits vehicle speed signal to A/C auto amp. via CAN communication line. |
|
|
|
In-vehicle sensor |
Refer to Component Description . |
|
|
|
Integral switch |
Refer to Component Description . |
|
|
|
Display control unit * |
-- |
|
|
|
Magnet clutch |
Refer to Component Description . |
|
|
|
ECV (Electrical Control Valve) |
Refer to Component Description . |
|
|
|
Aspirator |
Refer to Component Description . |
|
|
|
Air mix door motor (Driver side) |
Refer to Component Description . |
|
|
|
Intake sensor |
Refer to Component Description . |
|
|
|
Mode door motor |
Refer to Component Description . |
|
|
|
Air mix door motor (Passenger side) |
Refer to Component Description . |
|
|
|
Intake door motor |
Refer to Component Description . |
|
|
|
Blower motor |
Refer to Component Description . |
|
|
|
A/C auto amp. |
Refer to Component Description . |
|
* : Not applicable
