Component Description

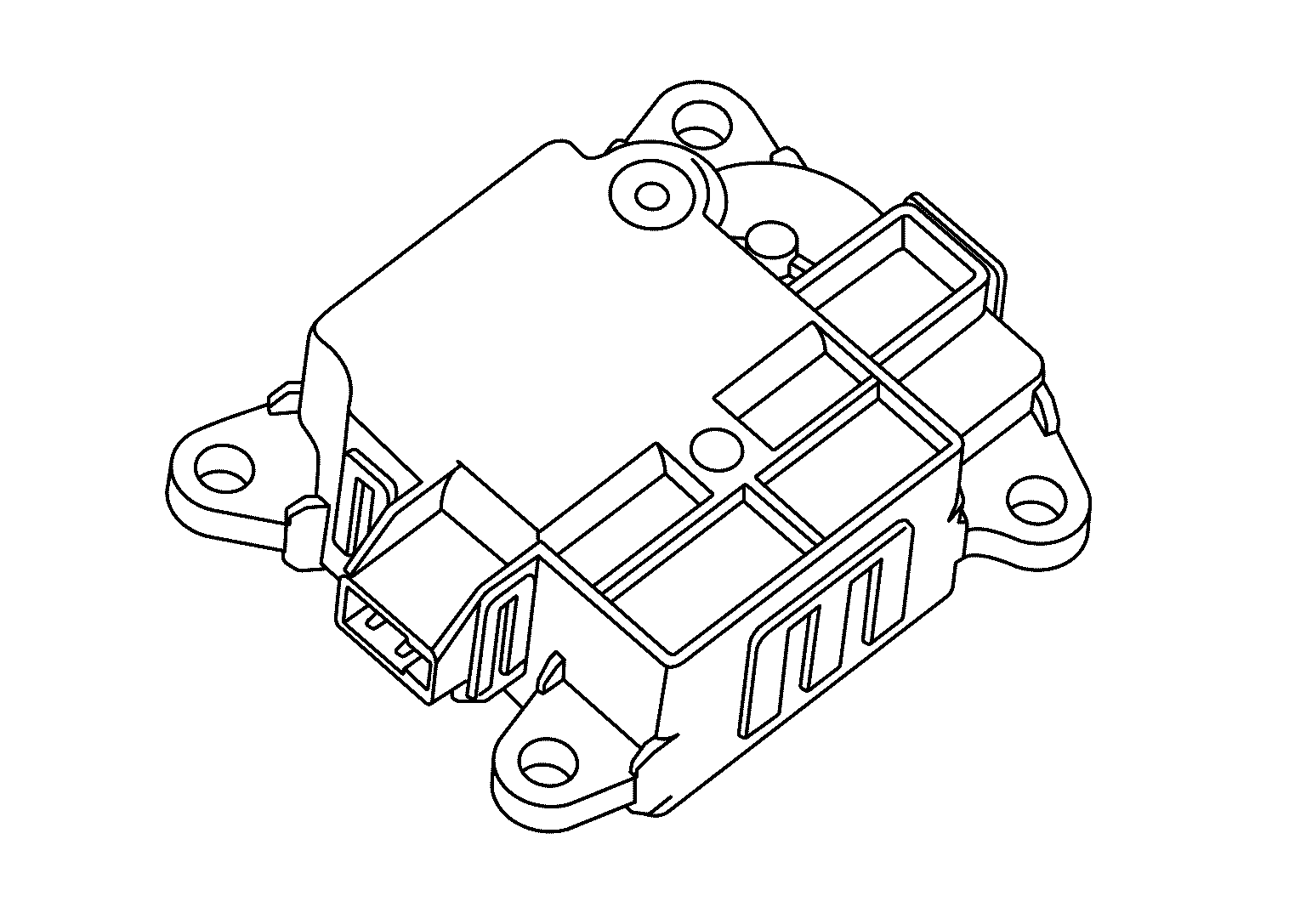

Air mix door motor (driver side) consists of motor that drives door, PBR (Potentio Balance Register) that detects door position and LCU (Local Control Unit) that perform multiplex communication control (LIN) with A/C auto amp. Refer to System Description .

Courtesy of NISSAN NORTH AMERICA, INC.
Rotation of motor is transmitted to air mix door (driver side) by link and lever. Air flow temperature is switched.
