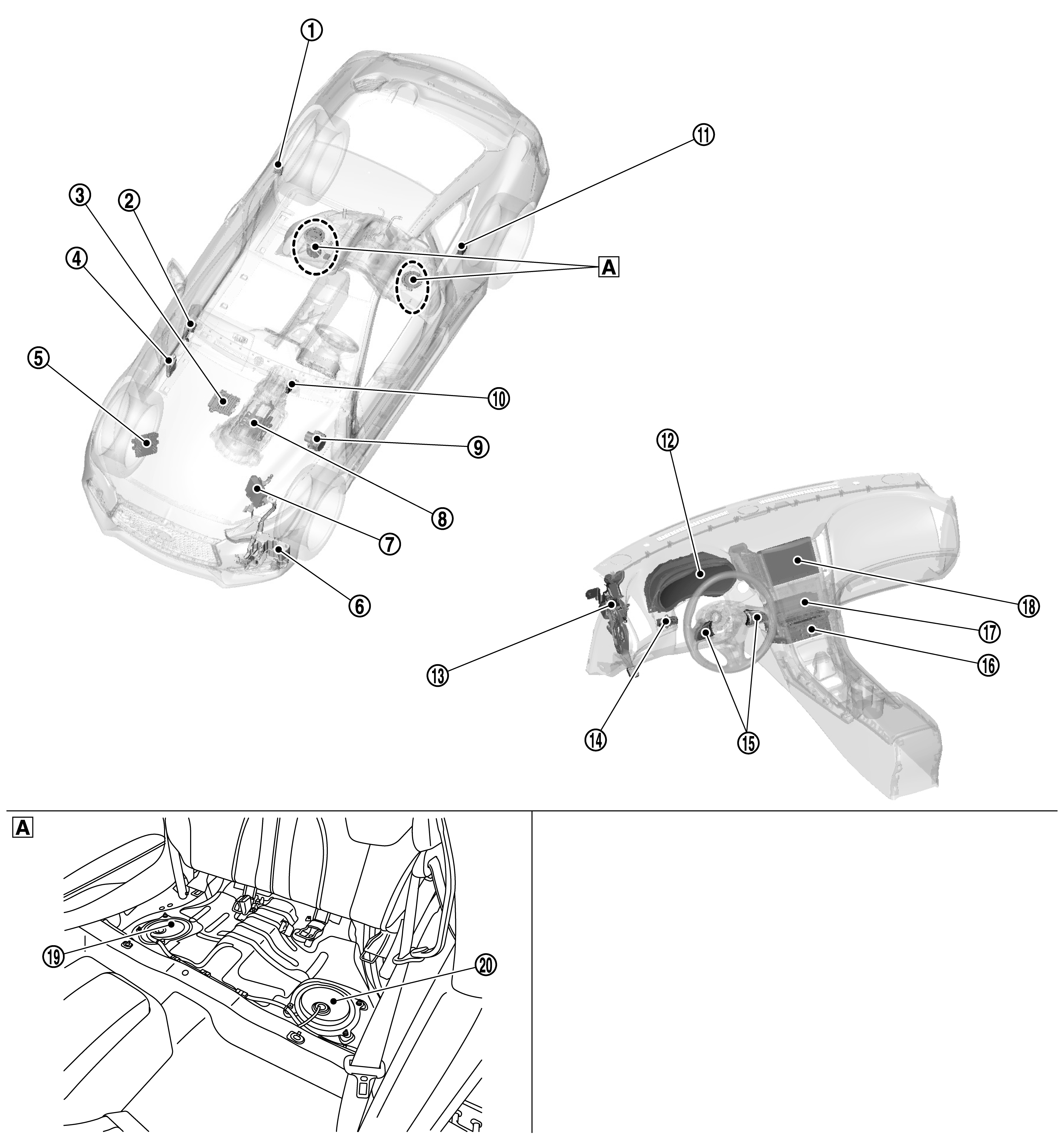

Component Location

Under the rear seat

No.

Component

Function

ADAS control unit 2

• Transmits the each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Description for detailed installation location.

AFS control unit

• Transmits the each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Location for detailed installation location.

ECM (2.0L turbo gasoline engine models) ^*1

-

BCM

• Transmits the each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Location for detailed installation location.

ECM

• Transmits the each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Location for detailed installation location.

Washer level switch

Transmits the washer level switch signal to the combination meter.

Chassis control module

• Transmits the each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Description . for detailed installation location.

TCM

• Transmits the each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Description . for detailed installation location.

ABS actuator and electric unit (control unit)

• Transmits the each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Description . for detailed installation location.

AWD control unit

• Transmits the each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Description for detailed installation location.

ADAS control unit

• Transmits the each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Description for detailed installation location.

Combination meter

Refer to Component Description .

Parking brake switch

Transmits the parking brake switch signal to the combination meter.

Meter control switch

Refer to Component Description .

Steering switch

Refer to Component Description .

A/C auto amp.

• Transmits the each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Location for detailed installation location.

Integral switch

Transmits the meter setting request signal to the combination meter.

Display control unit

• Transmits the each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Location for detailed installation location.

Fuel level sensor unit (main)

Transmits the fuel level sensor signal to the combination meter.

Fuel level sensor unit (sub)

Transmits the fuel level sensor signal to the combination meter.
