REAR STABILIZER : Removal & Installation: Removal

  1. Remove member stay. Refer to REAR SUSPENSION MEMBER : Exploded View .
  2. Remove rear under cover. Refer to FLOOR UNDER COVER : Exploded View .
  3. Remove rear floor rear cover. Refer to FLOOR UNDER COVER : Exploded View .

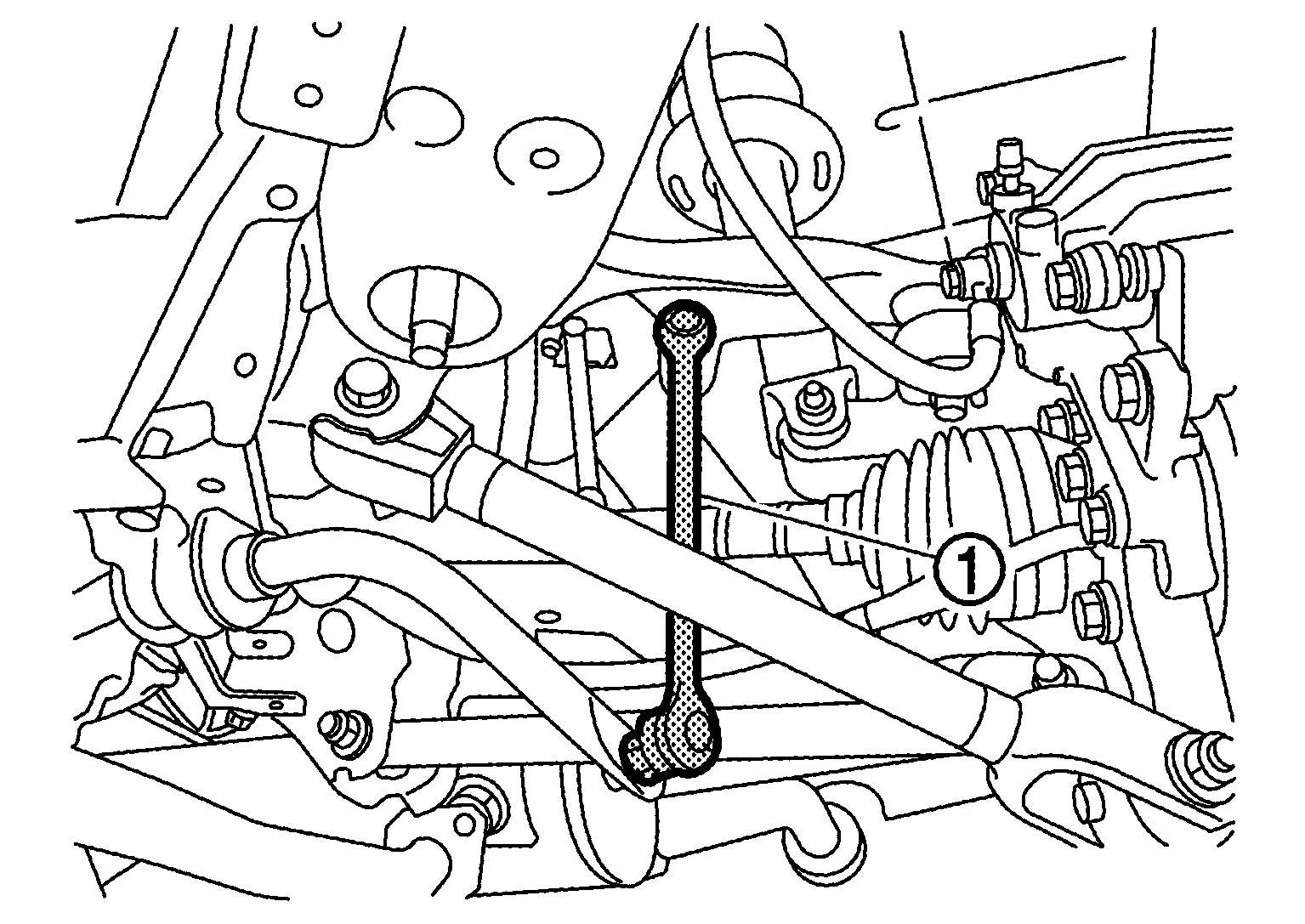

  4. Remove stabilizer connecting rods SYMBOL .
    GNSJSEIA0724Z-724Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove stabilizer clamp and bushing. Refer to REAR STABILIZER : Exploded View .
  6. Remove stabilizer bar.
  7. Perform inspection after removal. Refer to REAR STABILIZER : Inspection .
