Exploded View

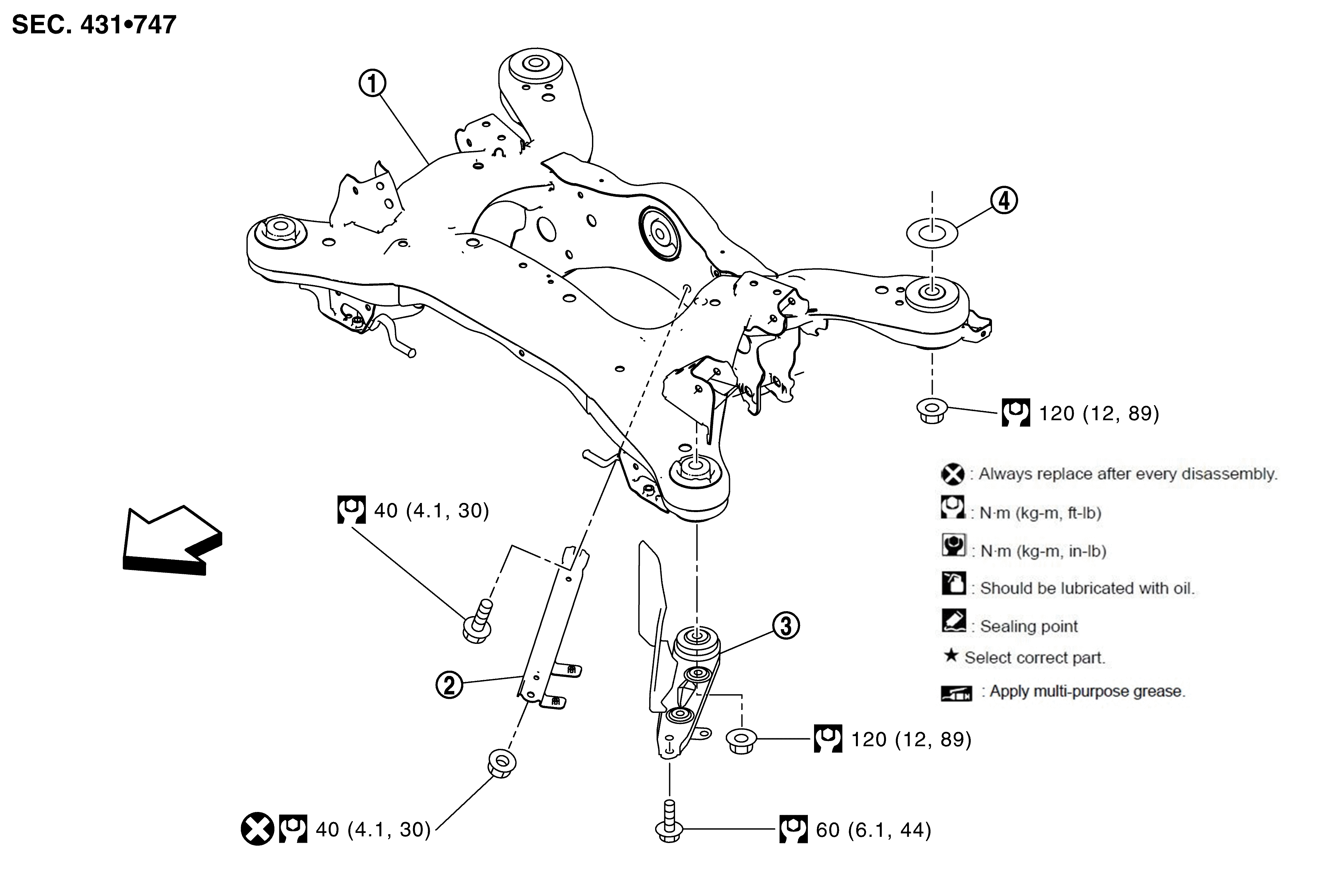

Fig 1: Rear Suspension Member Components With Torque Specifications
GNSJSEIA0737GB-737Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Rear suspension member

SYMBOL

Member stay

SYMBOL

Rear suspension member stay

SYMBOL

Mount stopper

SYMBOL : Vehicle front

SYMBOL

: N.m (kg-m, ft-lb)

SYMBOL

: Always replace after every disassembly.
