REAR FINAL DRIVE AIR BREATHER : Removal & Installation: Installation
WARNING: This page is about a different variant/trim than selected.
Note the following, and install in the reverse order of removal.
- For non-reusable parts, Refer to REAR FINAL DRIVE AIR BREATHER : Exploded View .

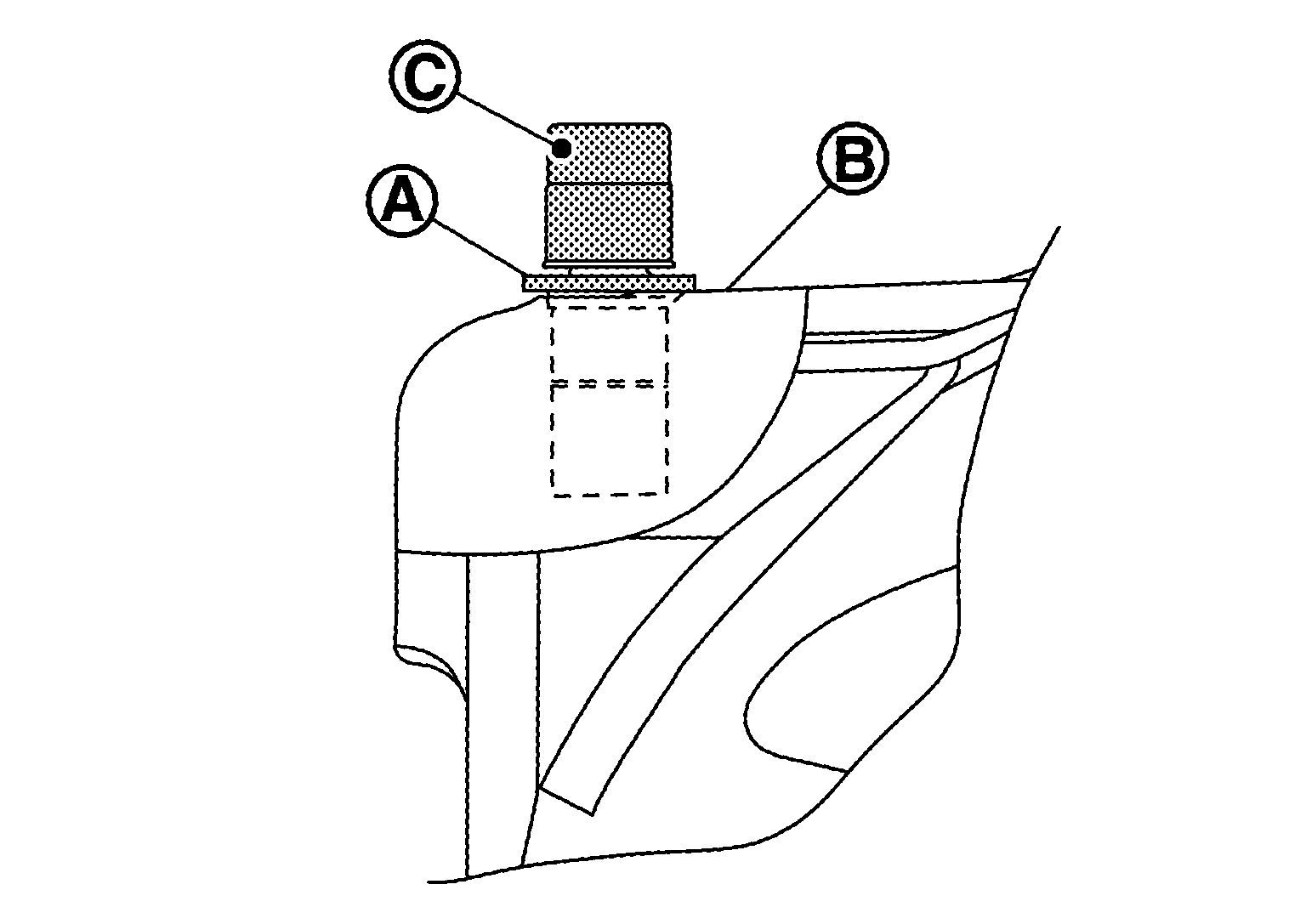

- Breather assembly (1-way) must be press fitted until whole circumference of flange
reach the surface
of rear cover.
CAUTION: Never press the cap.
