REAR FINAL DRIVE AIR BREATHER : Exploded View

WARNING: This page is about a different variant/trim than selected.

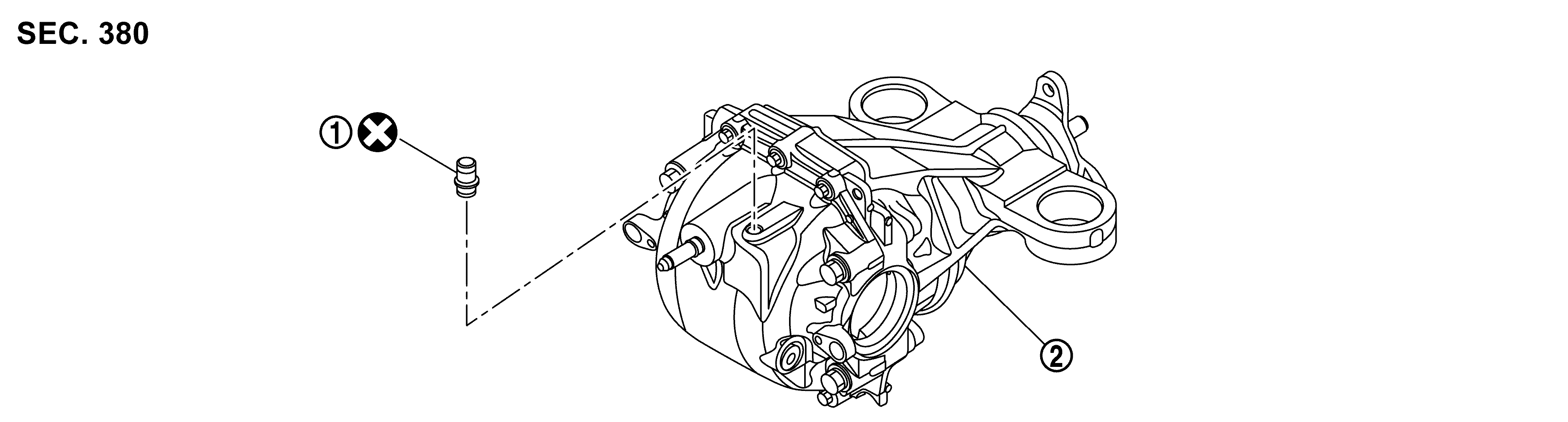

GNSILL0112201Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Breather assembly (1-way)

SYMBOL

Rear final drive assembly

SYMBOL : Always replace after every disassembly.
