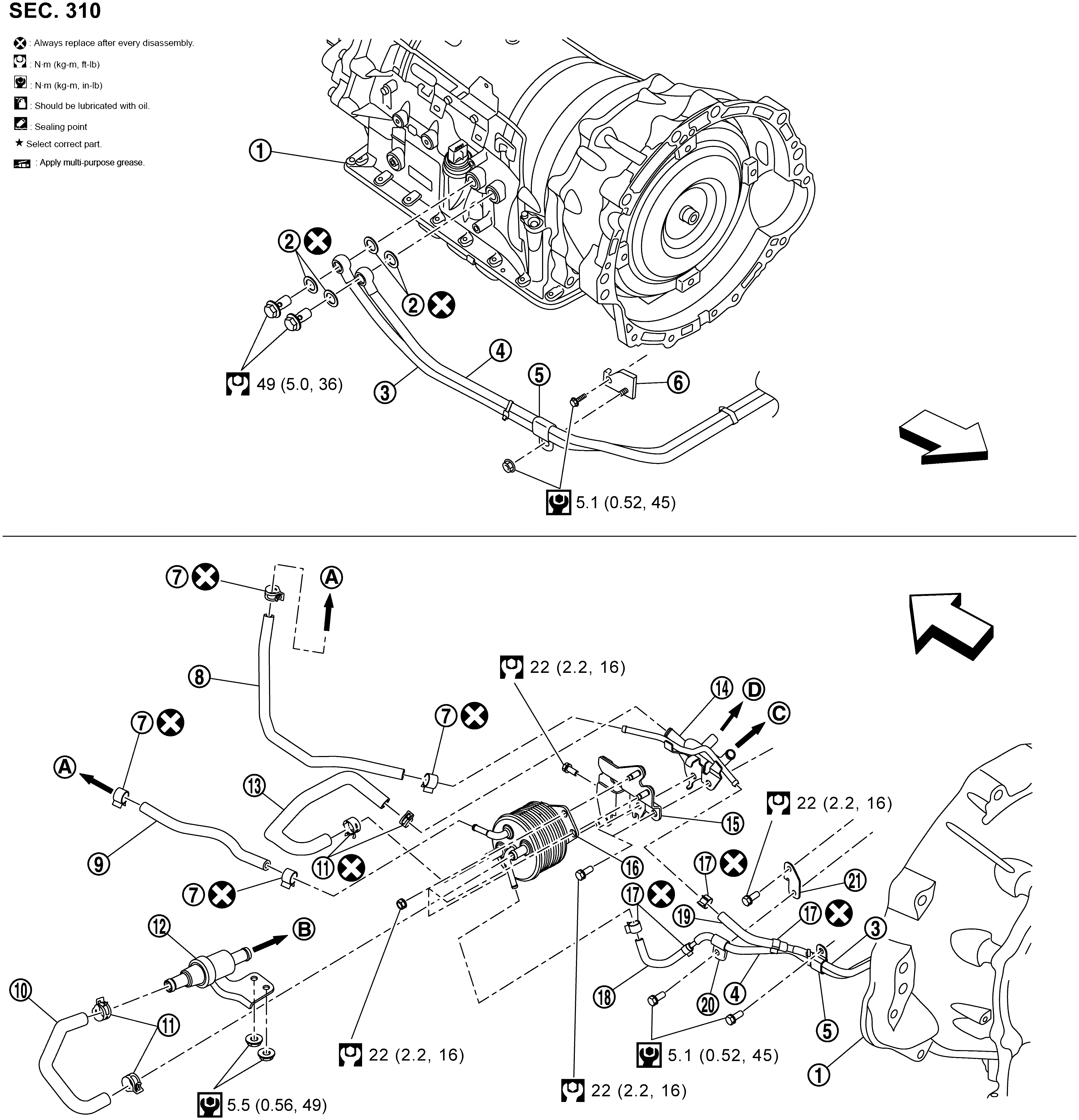

Fig 1: Fluid Cooler System 2WD 3.7L W/Oil Cooler With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Transmission assembly	2.	Copper washer	3.	Fluid tube A
4.	Fluid tube B	5.	Clip	6.	Bracket
7.	Hose clamp	8.	Fluid hose A	9.	Fluid hose B
10.	Water hose A	11.	Hose clamp	12.	Thermo valve
13.	Water hose B	14.	Water pipe assembly	15.	Bracket
16.	Fluid warmer	17.	Hose clamp	18.	Fluid hose C
19.	Fluid hose D	20.	Clip	21.	Bracket
A.	To radiator	B.	To oil cooler	C.	To cylinder block
D.	To oil cooler
	: Vehicle front
	: Always replace after every disassembly.
	: N.m (kg-m, ft-lb)
	: N.m (kg-m, in-lb)

NOTE: Regarding the oil cooler, refer to Exploded View .

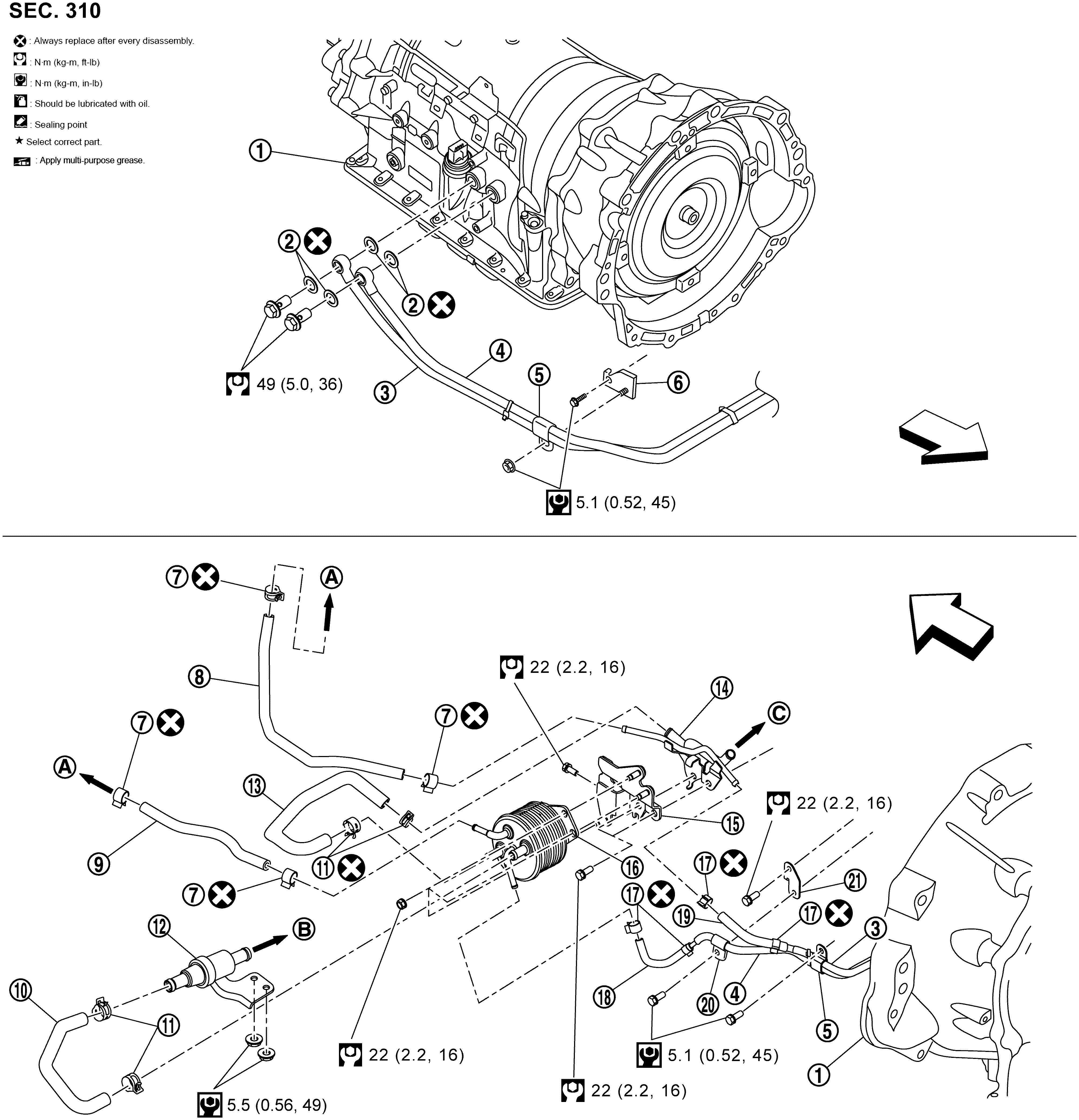

Fig 2: Fluid Cooler System 2WD 3.7L W/O Oil Cooler With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Transmission assembly	2.	Copper washer	3.	Fluid tube A
4.	Fluid tube B	5.	Clip	6.	Bracket
7.	Hose clamp	8.	Fluid hose A	9.	Fluid hose B
10.	Water hose A	11.	Hose clamp	12.	Thermo valve
13.	Water hose B	14.	Water pipe assembly	15.	Bracket
16.	Fluid warmer	17.	Hose clamp	18.	Fluid hose C
19.	Fluid hose D	20.	Clip	21.	Bracket
A.	To radiator	B.	To oil cooler	C.	To cylinder block
	: Vehicle front
	: Always replace after every disassembly.
	: N.m (kg-m, ft-lb)
	: N.m (kg-m, in-lb)

NOTE: Regarding the oil cooler, refer to Exploded View .
