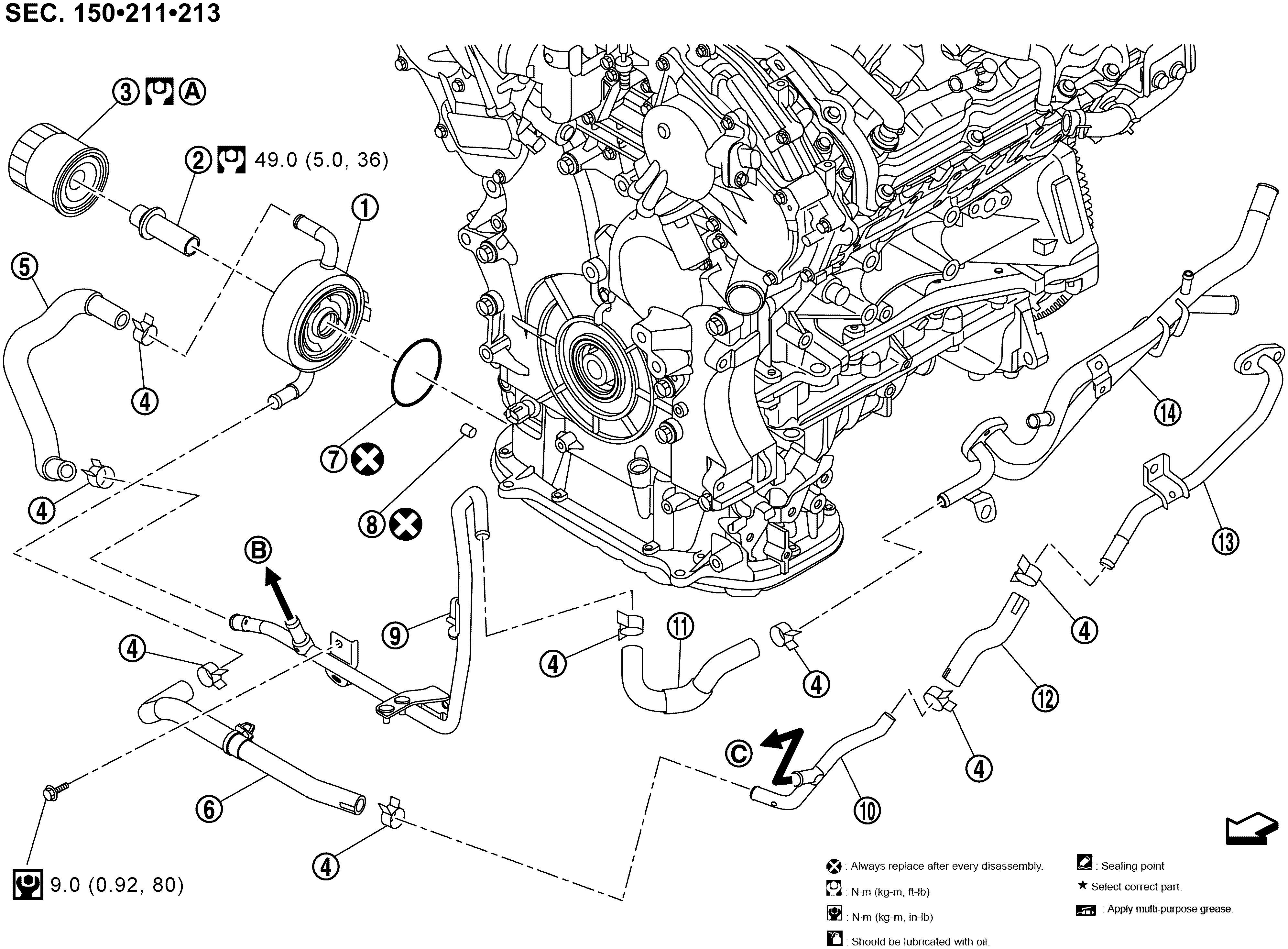

Exploded View
|
1. |
Oil cooler |
2. |
Connector bolt |
3. |
Oil filter |
|
4. |
Clamp |
5. |
Water hose |
6. |
Water hose |
|
7. |
O-ring |
8. |
Relief valve |
9. |
Water pipe |
|
10. |
Water pipe |
11. |
Water hose |
12. |
Water hose |
|
13. |
Water pipe |
14. |
Heater pipe |
||
|
A. |
Comply with the assembly procedure when tightening. Refer to Removal and Installation |
B. |
To fluid warmer |
C. |
To fluid warmer |
|
|
: Engine front |
||||
|
Refer to Components for symbols in the figure. |
|||||
