Removal and Installation: Installation

Note the following item, and install in the reverse order of removal.

• Do not damage engine mounting insulator and do not spill oil on it.
• For a location with a positioning pin, insert it securely into hole of matching part.
• For a part with a specified installation orientation, refer to component figure in Exploded View .

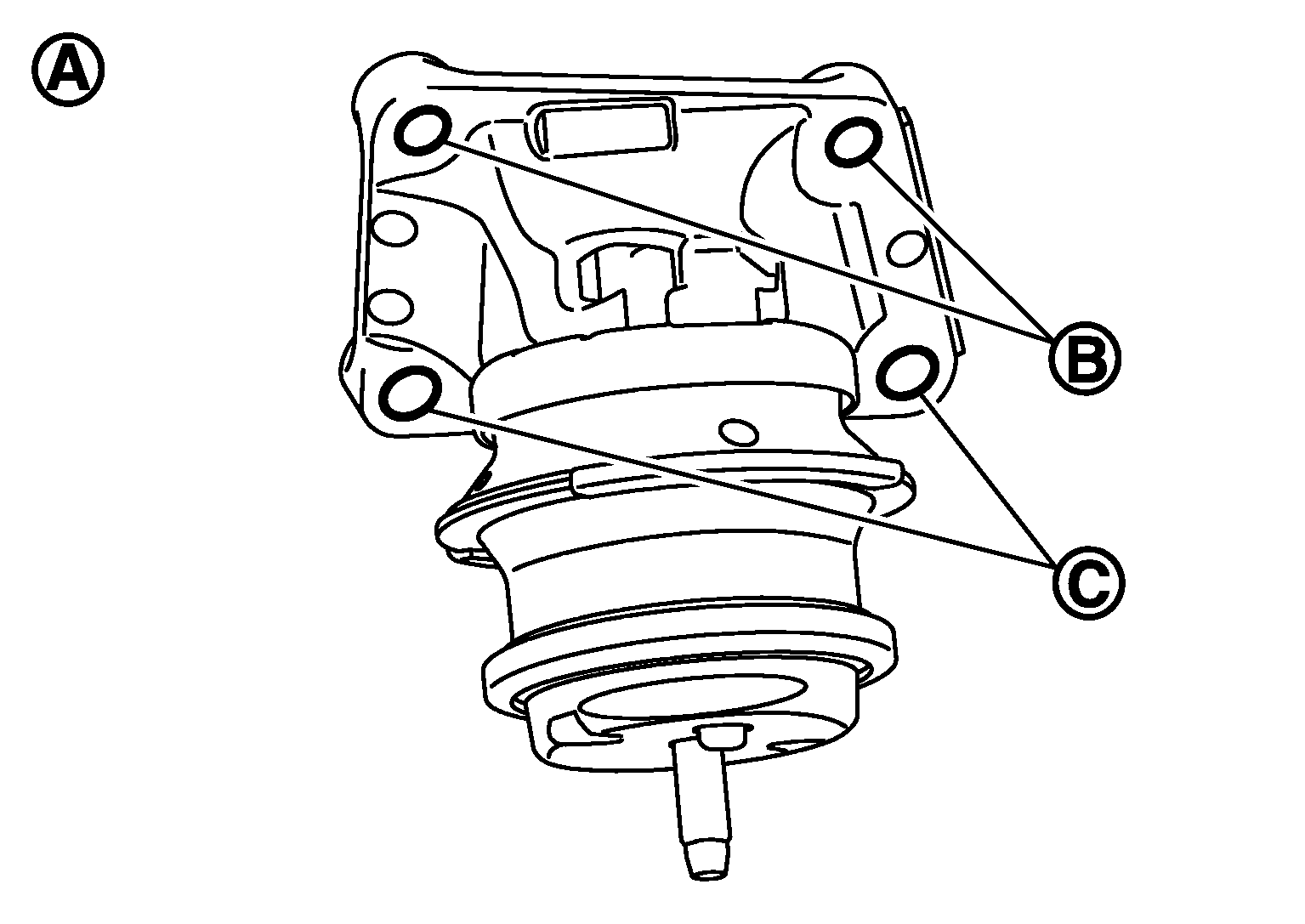

• When installing engine mounting bracket (RH and LH) on cylinder block, tighten two upper bolts (B) first. Then tighten two lower bolts (C).

  Courtesy of NISSAN NORTH AMERICA, INC.

  A	: Example right

  NOTE: This figure shows an example of bank 2.
• Tighten rear engine mounting member bolts in numerical order as shown in the figure.
  Fig 1: Rear Engine Mounting Member Bolt Tightening Sequence

  Courtesy of NISSAN NORTH AMERICA, INC.

  : Vehicle front

• Check that all engine mounting insulators are seated properly, then tighten mounting nuts and bolts.
