Exploded View

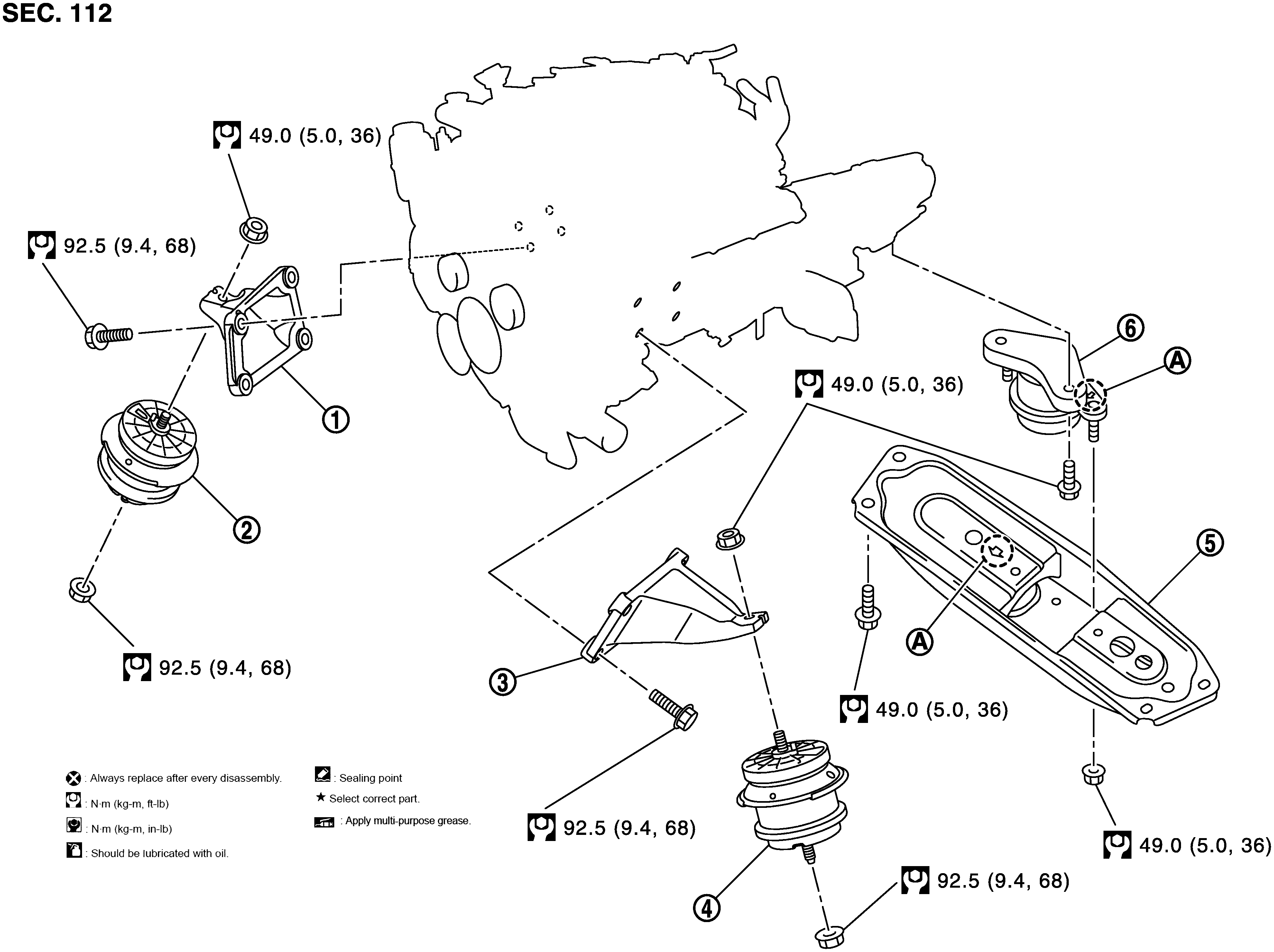

Fig 1: Engine Assembly 2WD With Torque Specifications
GNSJPBIA3321GB-321Courtesy of NISSAN NORTH AMERICA, INC.

1.

Engine mounting bracket (RH)

2.

Engine mounting insulator (RH)

3.

Engine mounting bracket (LH)

4.

Engine mounting insulator (LH)

5.

Rear engine mounting member

6.

Engine mounting insulator (rear)

A.

Front mark

Refer to Components for symbols in the figure.
