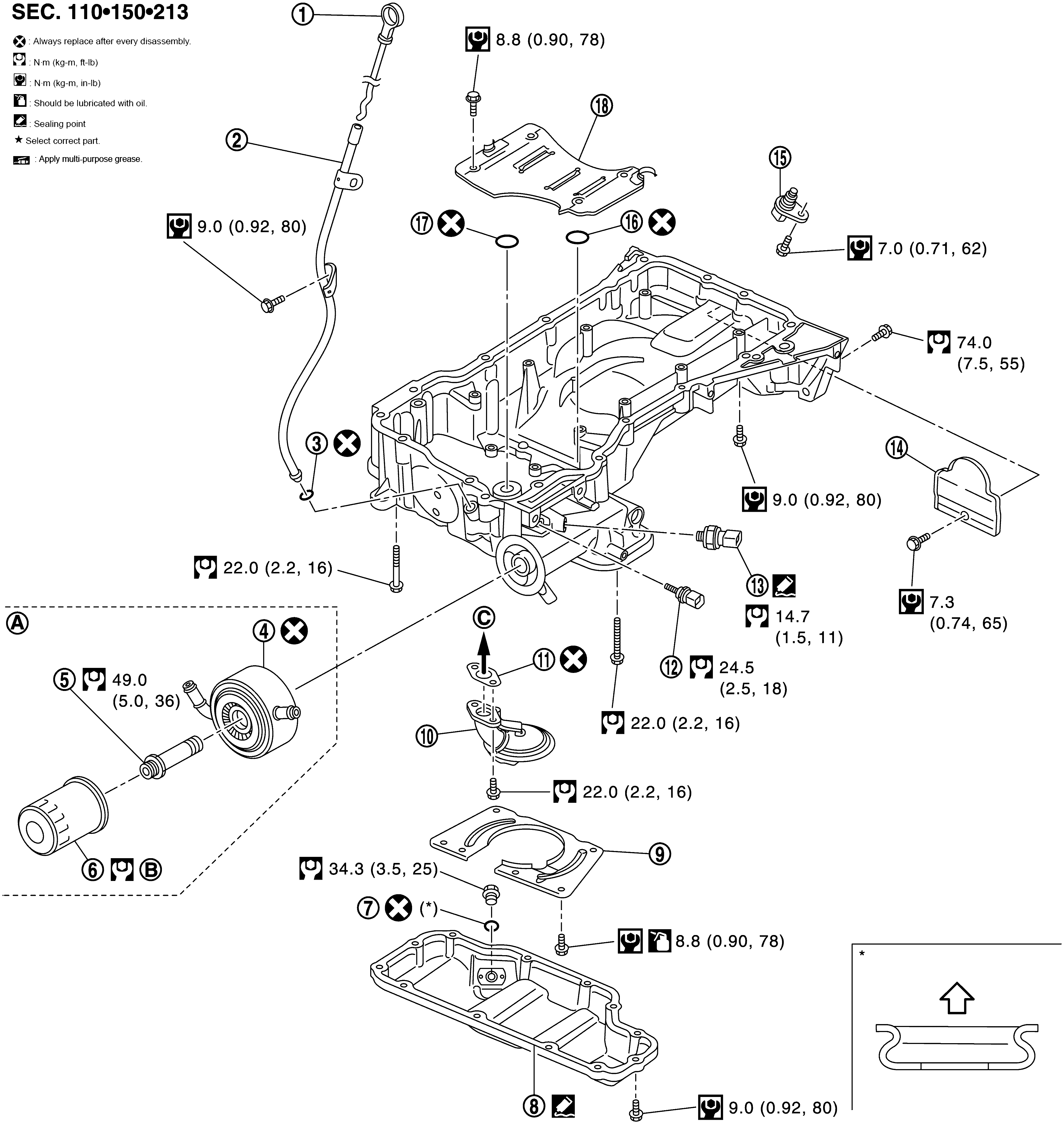

Exploded View
|
1. |
Oil level gauge |
2. |
Oil level gauge guide |
3. |
O-ring |
|
4. |
Oil cooler |
5. |
Connector bolt |
6. |
Oil filter |
|
7. |
Drain plug washer |
8. |
Oil pan (lower) |
9. |
Baffle plate |
|
10. |
Oil strainer |
11. |
Gasket |
12. |
Engine oil temperature sensor |
|
13. |
Engine oil pressure sensor |
14. |
Rear plate cover |
15. |
Crankshaft position sensor (POS) |
|
16. |
O-ring |
17. |
O-ring |
18. |
Baffle plate |
|
A. |
Comply with the assembly procedure when tightening. Refer to Exploded View |
B. |
Comply with the assembly procedure when tightening. Refer to Removal and Installation |
C. |
Oil pump side |
|
|
: Oil pan side |
||||
|
Refer to Components for symbols in the figure. |
|||||
|

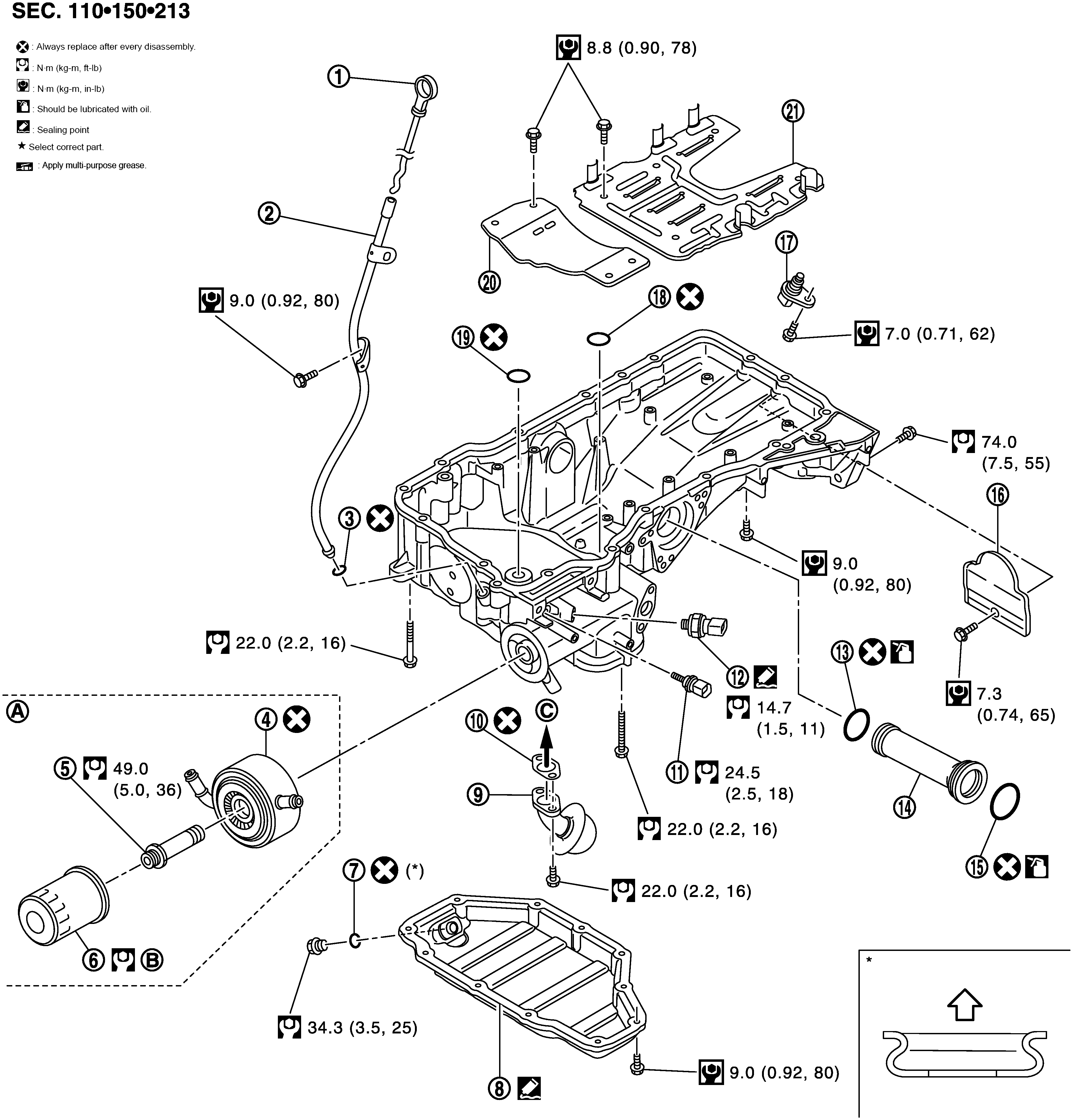

1. |
Oil level gauge |
2. |
Oil level gauge guide |
3. |
O-ring |
|
4. |
Oil cooler |
5. |
Connector bolt |
6. |
Oil filter |
|
7. |
Drain plug washer |
8. |
Oil pan (lower) |
9. |
Oil strainer |
|
10. |
Gasket |
11. |
Engine oil temperature sensor |
12. |
Engine oil pressure sensor |
|
13. |
O-ring |
14. |
Axle pipe |
15. |
O-ring |
|
16. |
Rear plate cover |
17. |
Crankshaft position sensor (POS) |
18. |
O-ring |
|
19. |
O-ring |
20. |
Baffle plate |
21. |
Baffle plate |
|
A. |
Comply with the assembly procedure when tightening. Refer to Exploded View |
B. |
Comply with the assembly procedure when tightening. Refer to Removal and Installation |
C. |
Oil pump side |
|
|
: Oil pan side |
||||
|
Refer to Components for symbols in the figure. |
|||||
