Exploded View

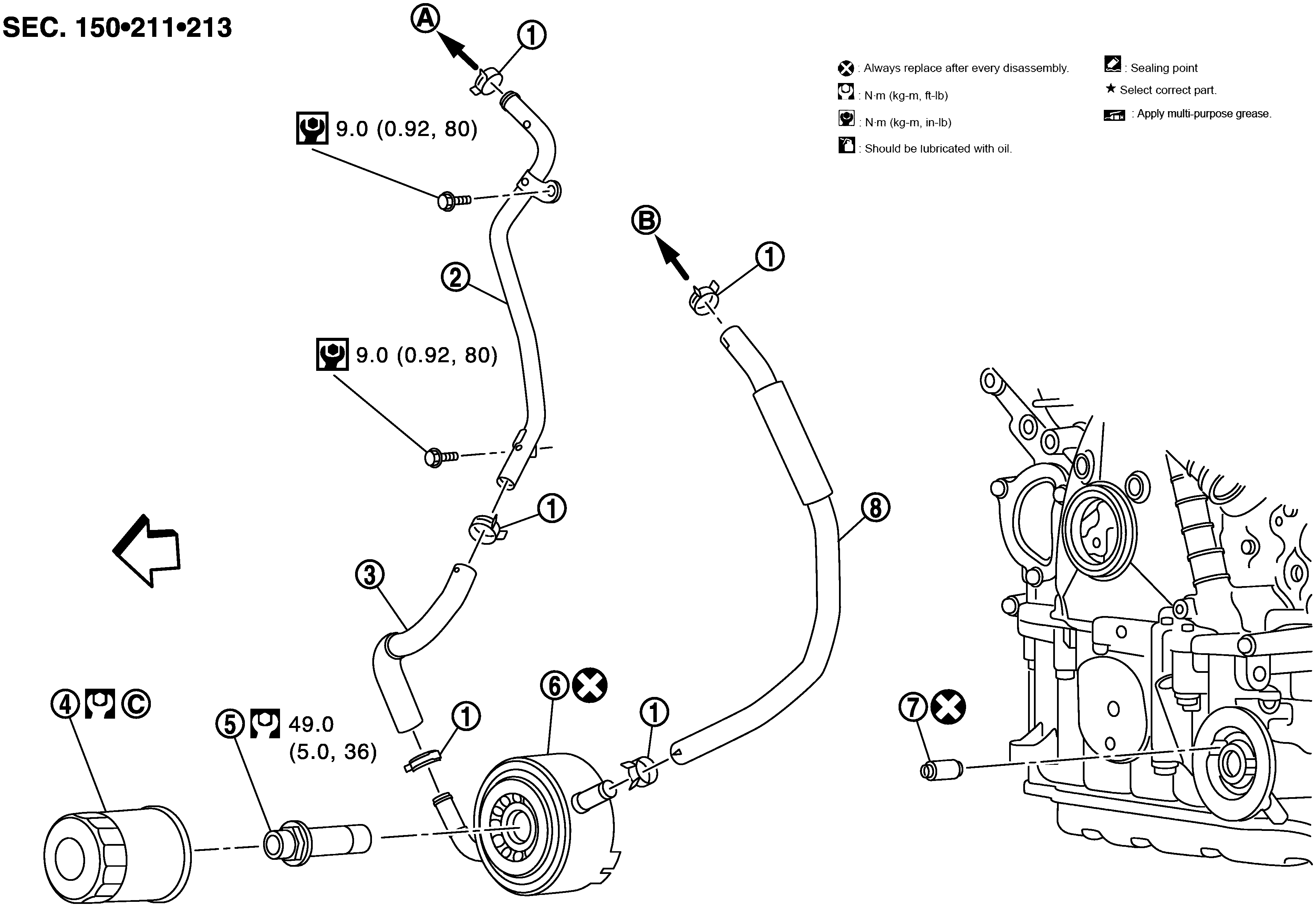

Fig 1: Oil Cooler With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Clamp	2.	Water pipe	3.	Water hose
4.	Oil filter	5.	Connector bolt	6.	Oil cooler
7.	Relief valve	8.	Water hose
A.	To thermostat housing	B.	To water outlet	C.	Comply with the assembly procedure when tightening. Refer to Removal and Installation
	: Engine front
Refer to Components for symbols in the figure.
