Removal and Installation: Removal

Remove console finisher assembly. Refer to Exploded View .

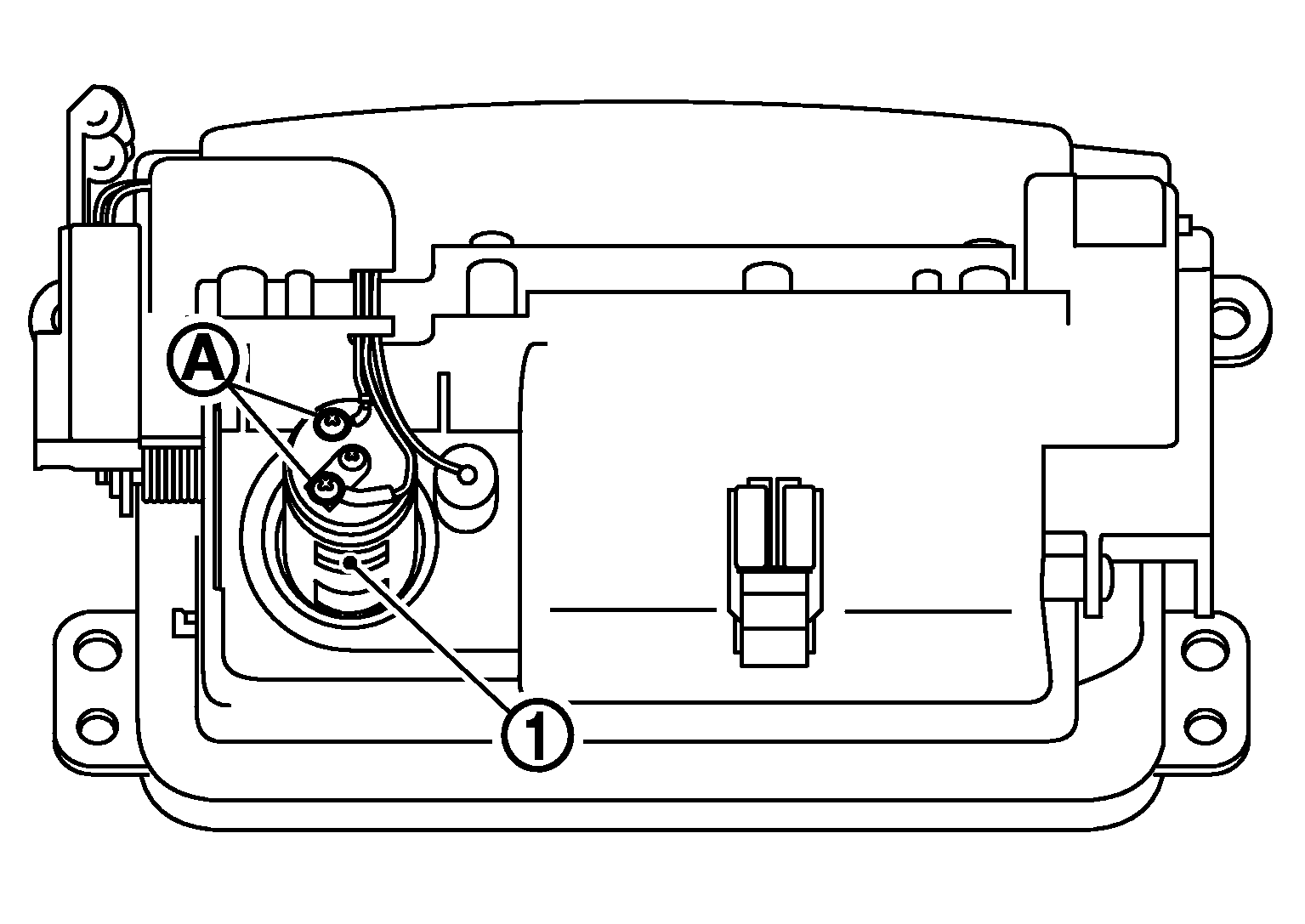

Remove the screws (A) from reverse side cigarette lighter socket (1).

Courtesy of NISSAN NORTH AMERICA, INC.

Pull out cigarette lighter (1).

Courtesy of NISSAN NORTH AMERICA, INC.

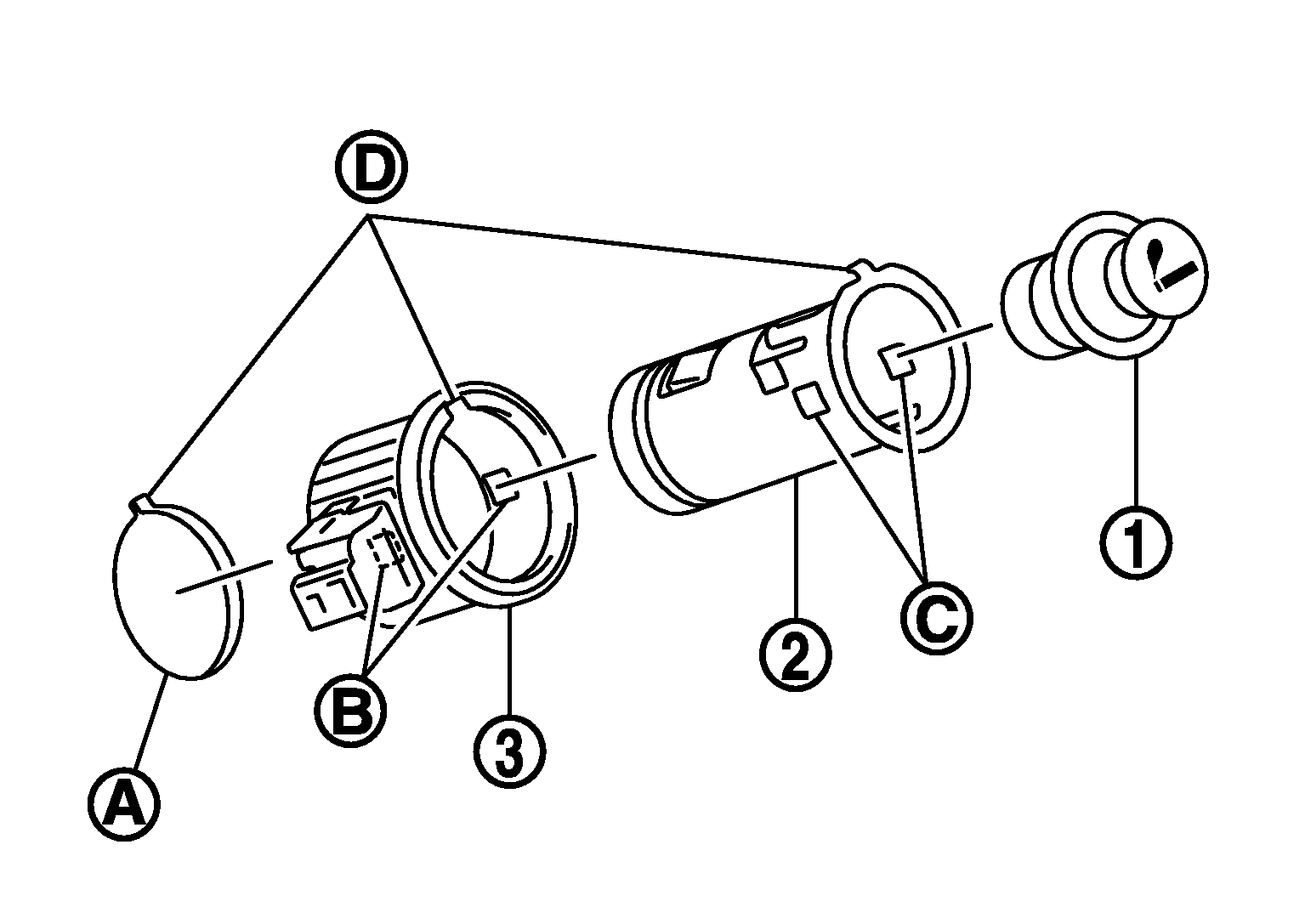

A	(Console finisher assembly)
D	: Cut out

Pull out cigarette lighter socket (2) by pushing the cigarette lighter ring pawl (B) from the cigarette lighter socket hole (square) (C).
Remove cigarette lighter ring (3) from console finisher assembly while pressing pawls.
