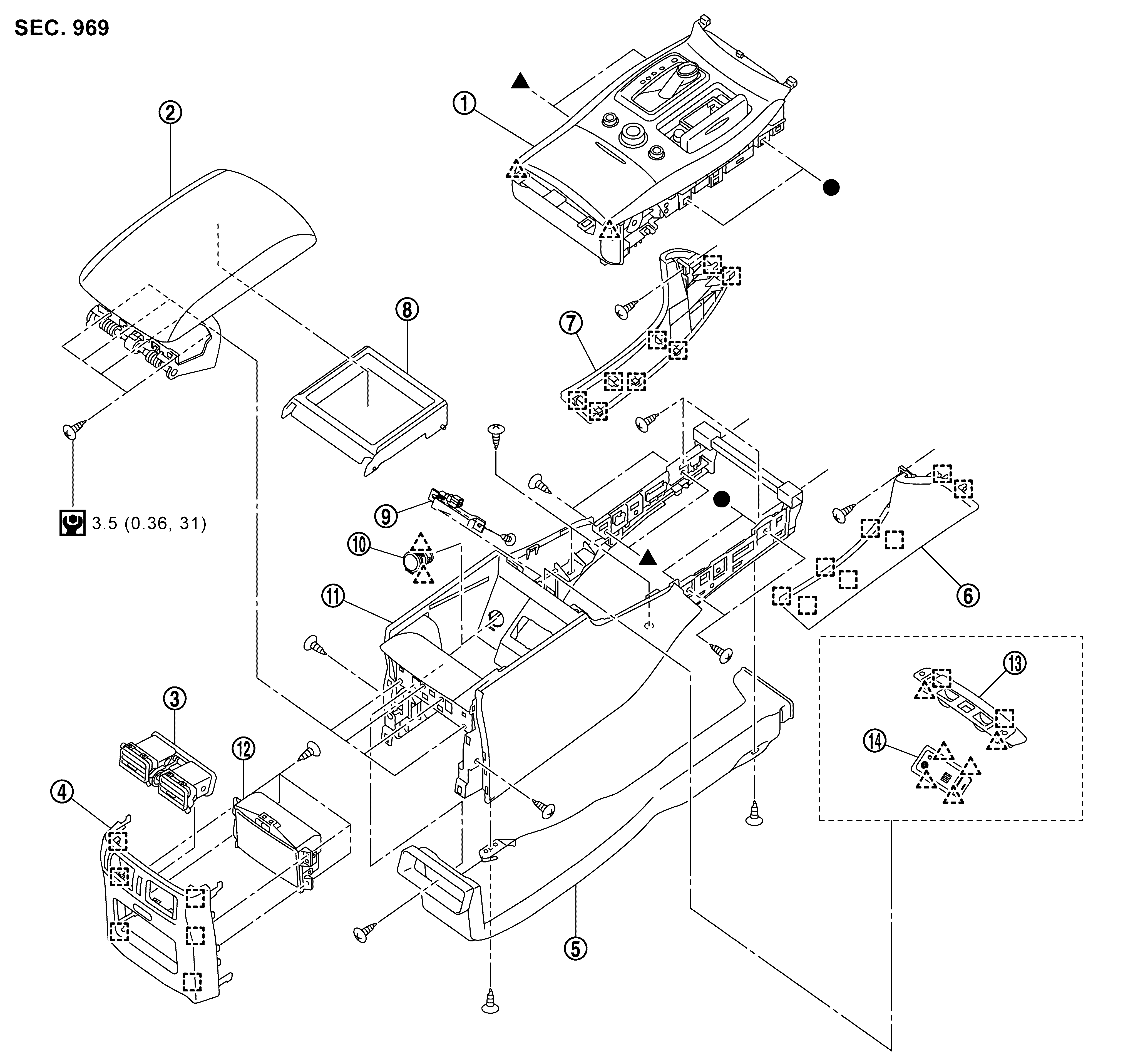

Exploded View

1.

Console Finisher Assembly

2.

Console Lid Assembly

3.

Rear Ventilator Grille

4.

Console Rear Finisher

5.

Rear Ventilator Duct

6.

Instrument Side Panel RH

7.

Instrument Side Panel LH

8.

Console Tray

9.

Inside Key Antenna (Console)

10.

Power Socket

11.

Center Console Assembly

12.

Console Rear Pocket Assembly

13.

Console Mask

14.

External Data Input Box

: Pawl

: Metal clip

: N.m (kg-m, in-lb)

, : Indicates that the part is connected at points with same symbol in actual vehicle.

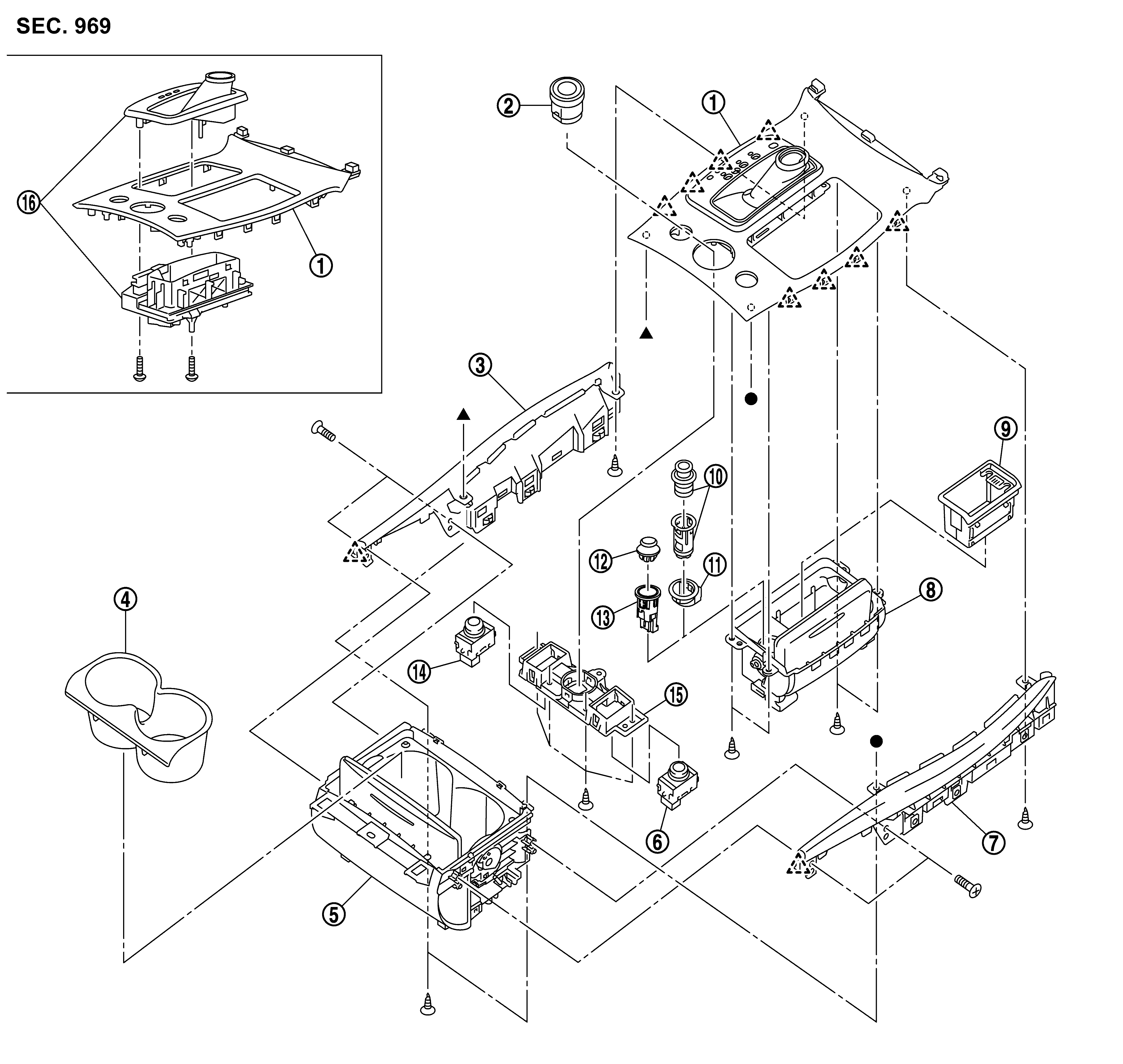

1.

Console Indicator Finisher

2.

Infiniti Drive Mode Selector

3.

Cluster Lid Finisher LH

4.

Inner Case

5.

Cup Holder Assembly

6.

Climate Controlled Seat Switch RH

7.

Cluster Lid Finisher RH

8.

Console Front Pocket Assembly

9.

Inner Ashtray ^*1

10.

Cigarette Lighter Complete ^*1

11.

Cigarette Lighter Ring ^*1

12.

Cap ^*2

13.

Power Socket ^*2

14.

Climate Controlled Seat Switch LH

15.

Switch Panel

16.

A/T Control Indicator Assembly

: Pawl

, : Indicates that the part is connected at points with same symbol in actual vehicle.
