Drive Gear RUNOUT

  1. Remove rear cover. Refer to Disassembly .

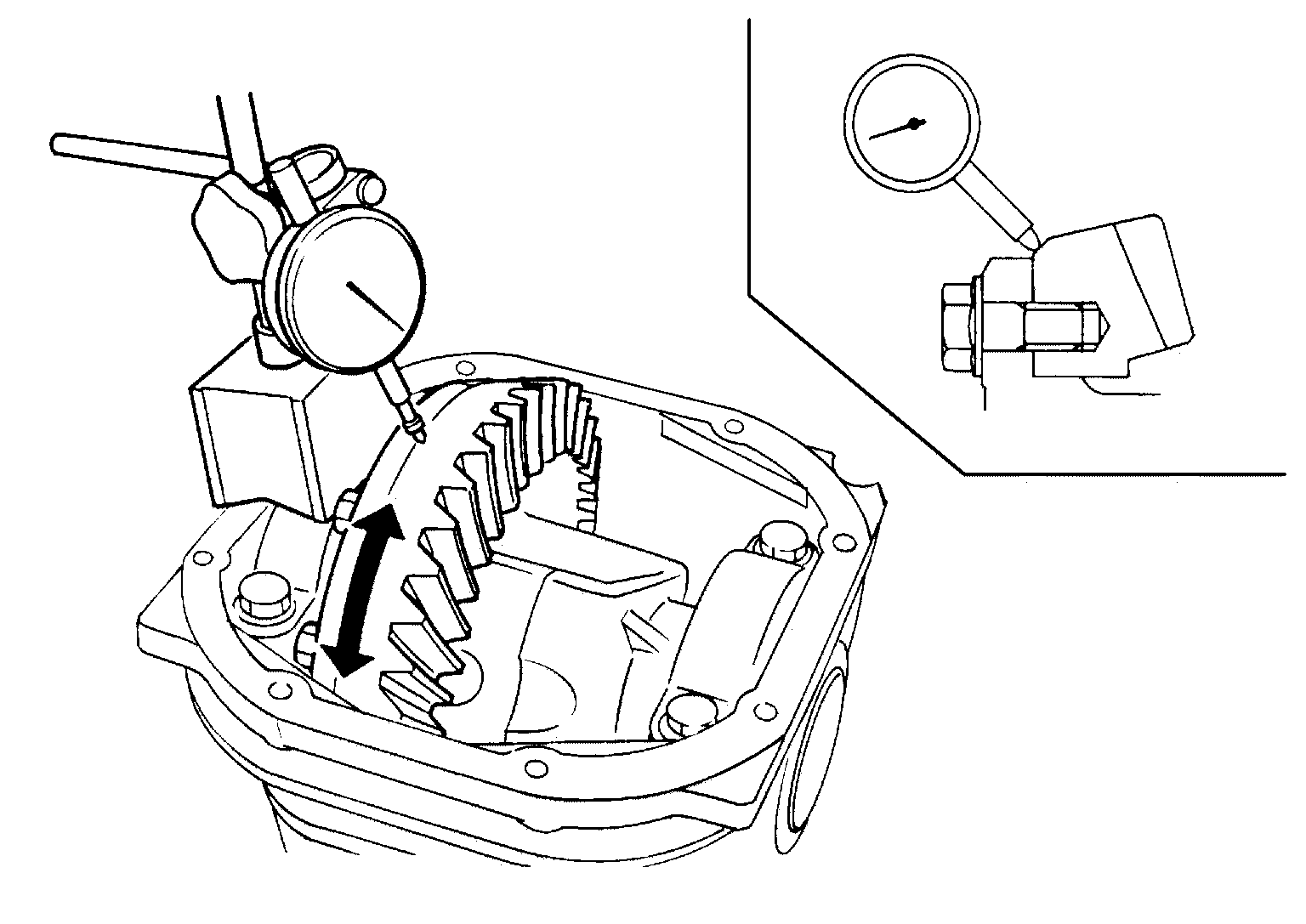

  2. Fit a dial indicator to the drive gear back face.
    G04076207Courtesy of NISSAN NORTH AMERICA, INC.
  3. Rotate the drive gear to measure runout.

    Drive gear runout

    : Refer to Drive Gear Runout .
    • If the runout is outside of the repair limit, check drive gear assembly condition; foreign material may be caught between drive gear and differential case, or differential case or drive gear may be deformed, etc.
      CAUTION: Replace drive gear and drive pinion gear as a set.
