Differential Assembly: Disassembly

  1. Drain gear oil, if necessary.
  2. Remove rear cover mounting bolts.

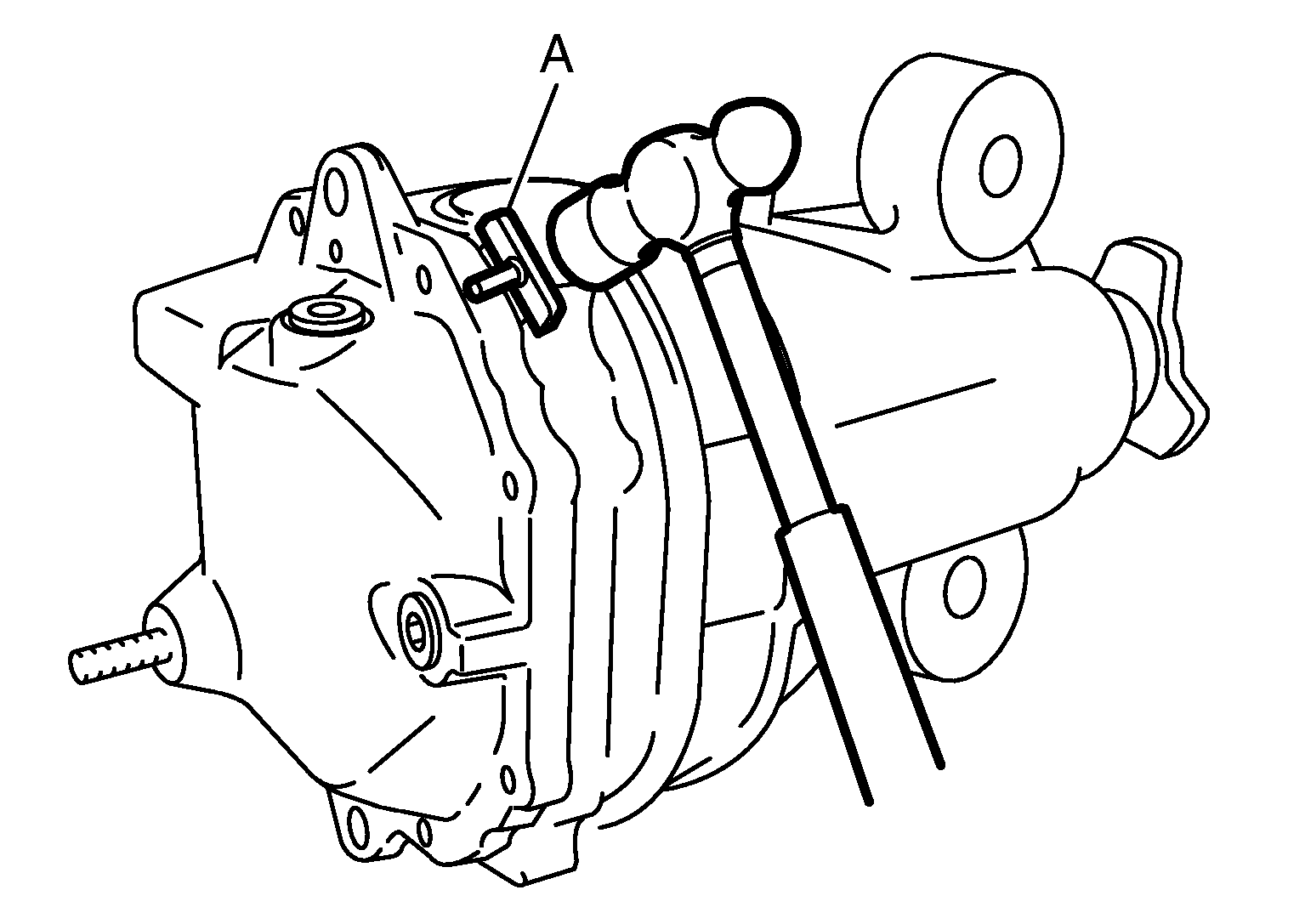

  3. Remove rear cover to insert the seal cutter (A) [SST: KV10111100 (J-37228)] between gear carrier and rear cover.
    GNSJSDIA0029Z-029Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Never damage the mating surface.
    • Never insert flat-bladed screwdriver, this may damage the mating surface.

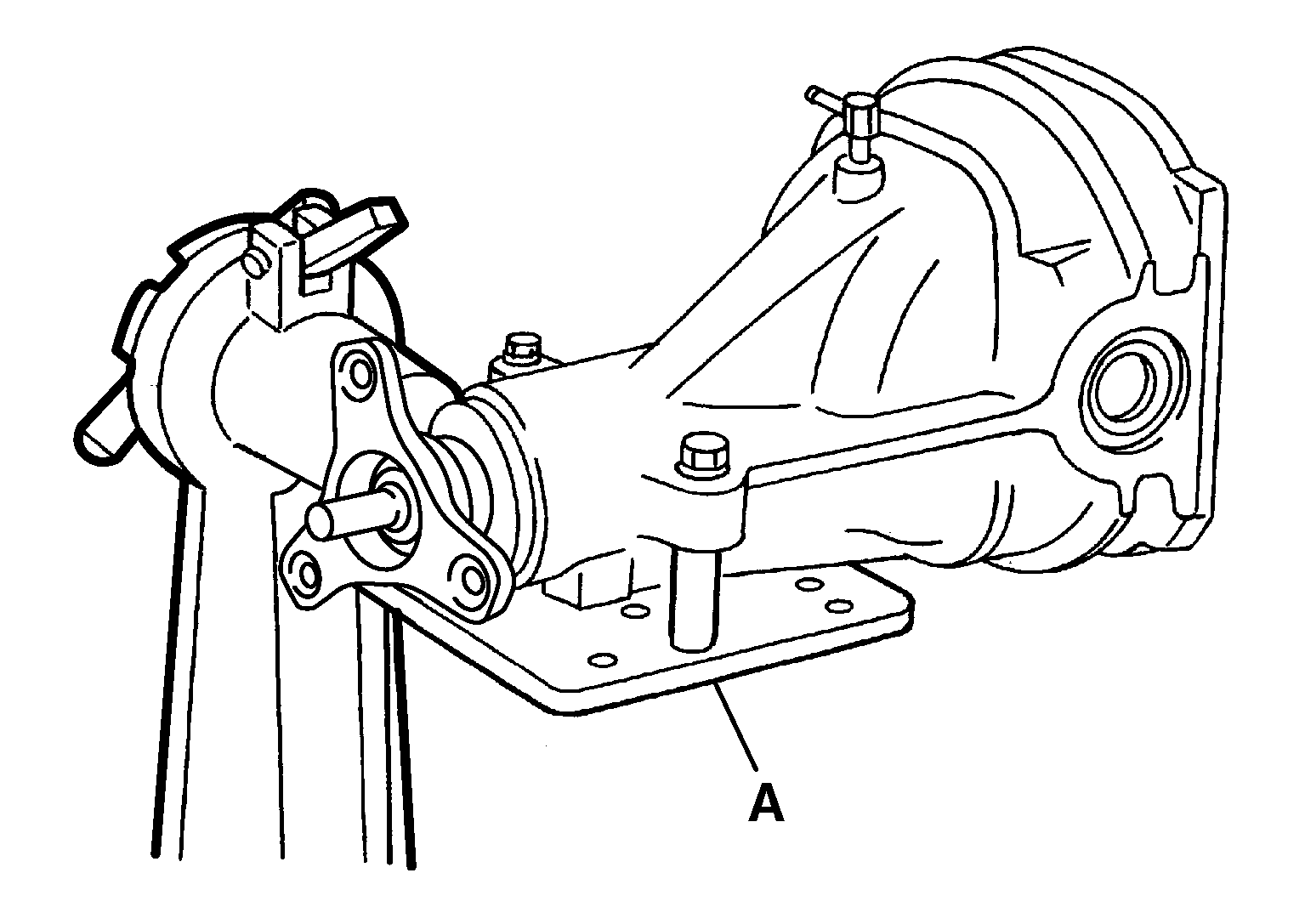

  4. Using two 45 mm (1.77 in) spacers, mount carrier on the attachment (A) [SST: KV38100800 (J-25604-01)].
    GNSJSDIA0030Z-030Courtesy of NISSAN NORTH AMERICA, INC.

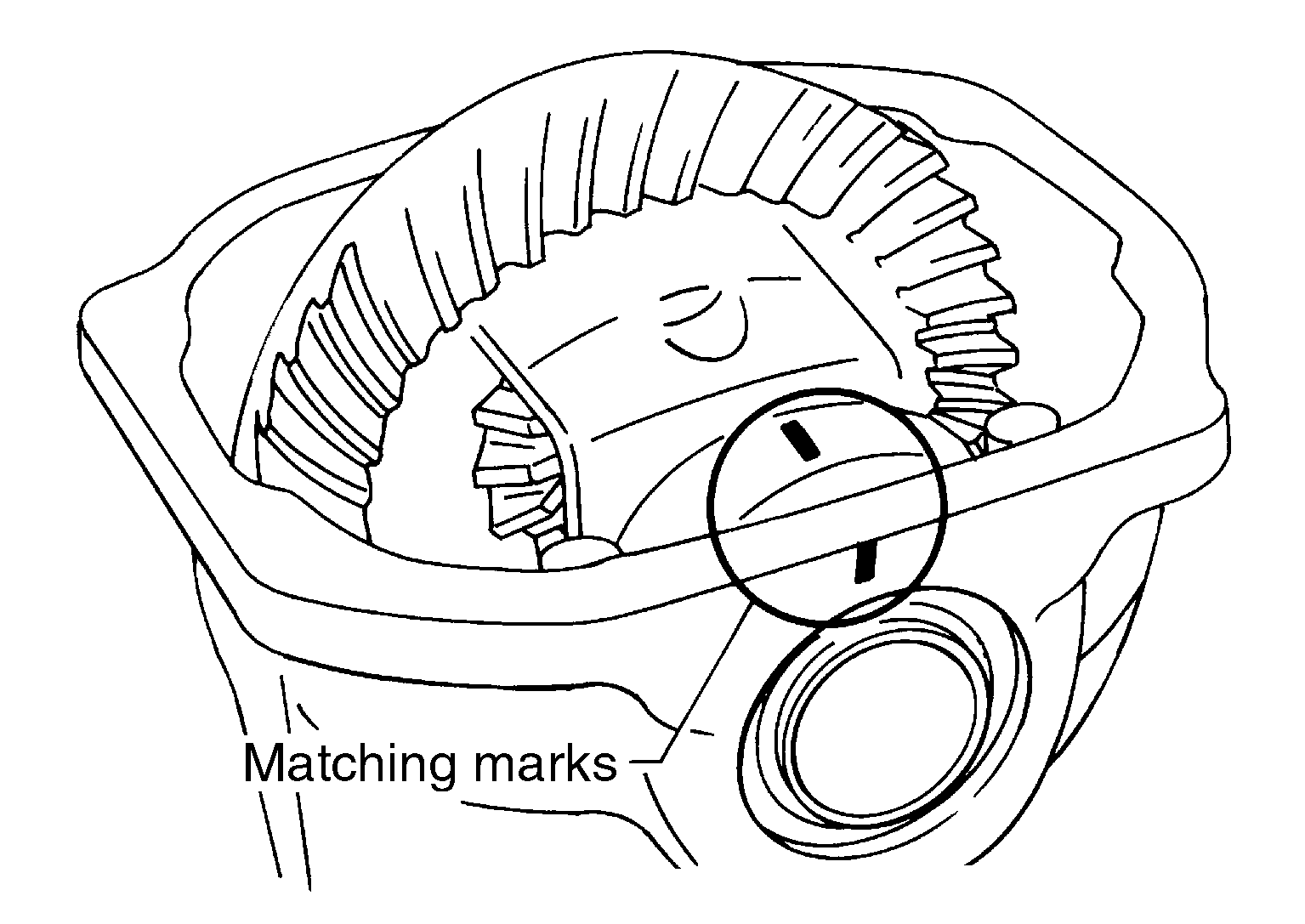

  5. For proper reinstallation, paint matching marks on one side of the bearing cap.
    G04076359Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • For matching marks, use paint. Never damage bearing caps and gear carrier.
    • Bearing caps are manufactured as integral molding. Use the matching marks to them in their original positions.

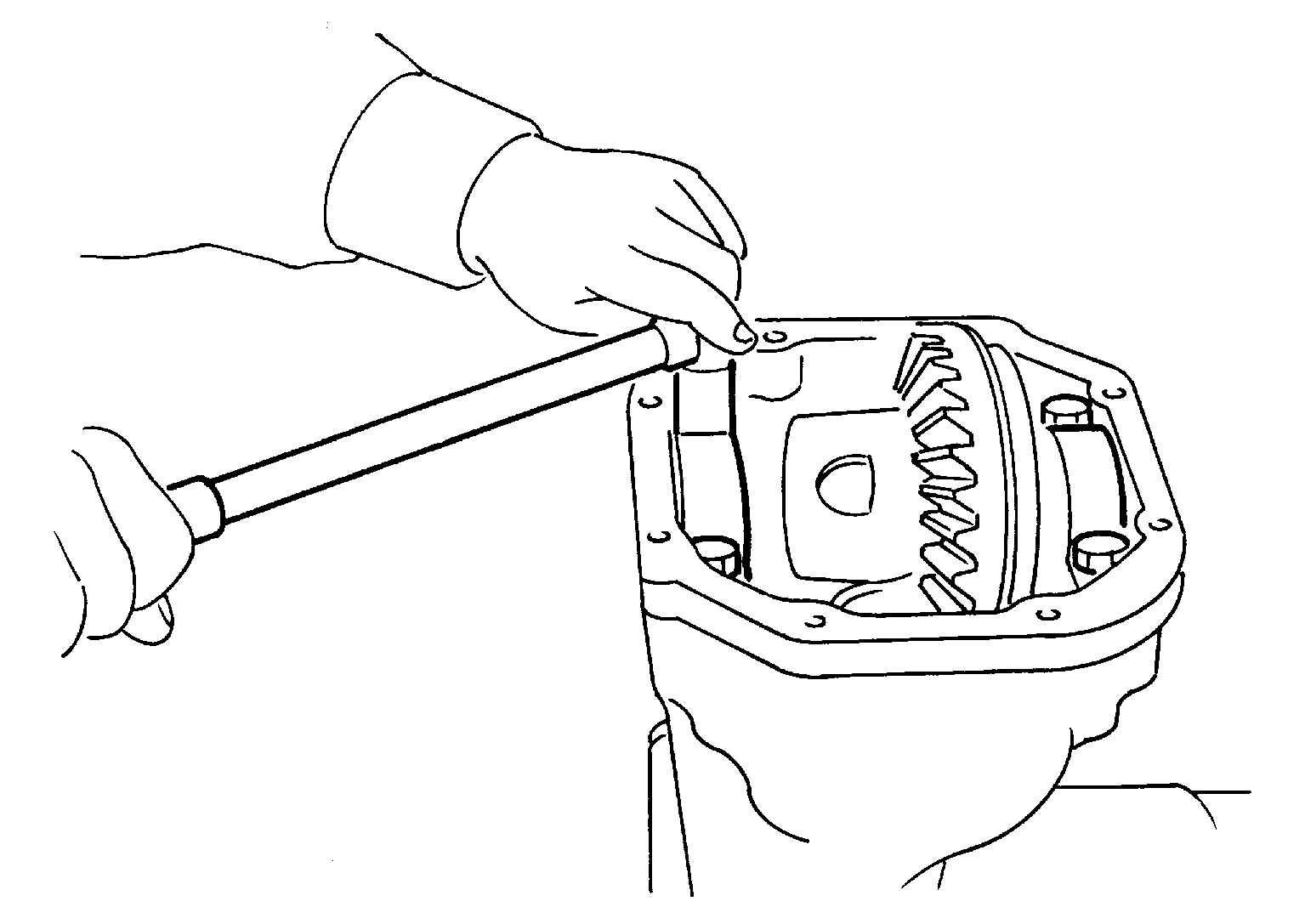

  6. Remove bearing caps.
    G04901948Courtesy of NISSAN NORTH AMERICA, INC.

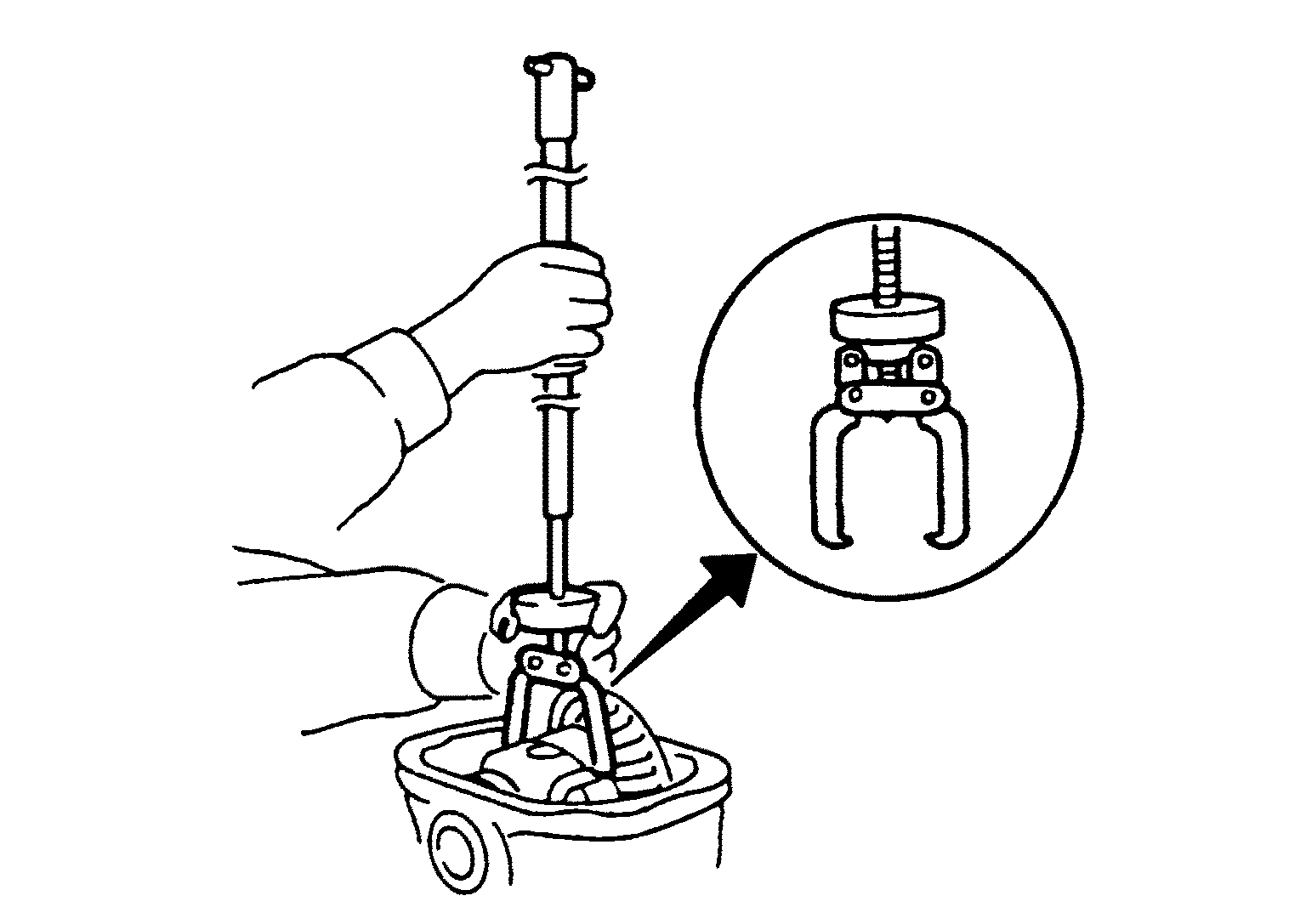

  7. Lift differential case assembly out with a sliding hammer (commercial service tool).
    G04076361Courtesy of NISSAN NORTH AMERICA, INC.

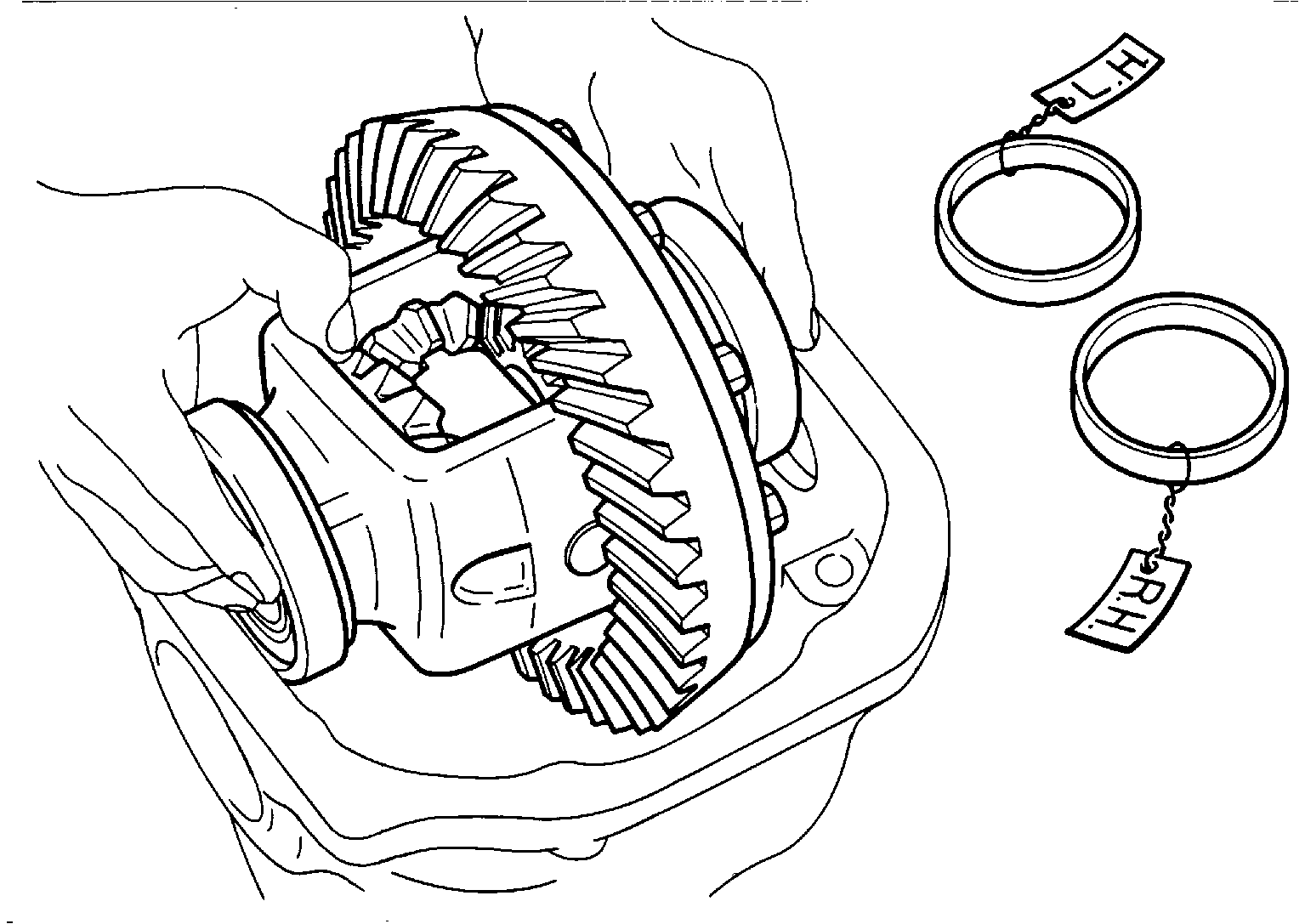

    • Keep side bearing outer races together with inner race. Never mix them up.
      G04076362Courtesy of NISSAN NORTH AMERICA, INC.

      Also, keep side bearing adjusting washers together with bearings.

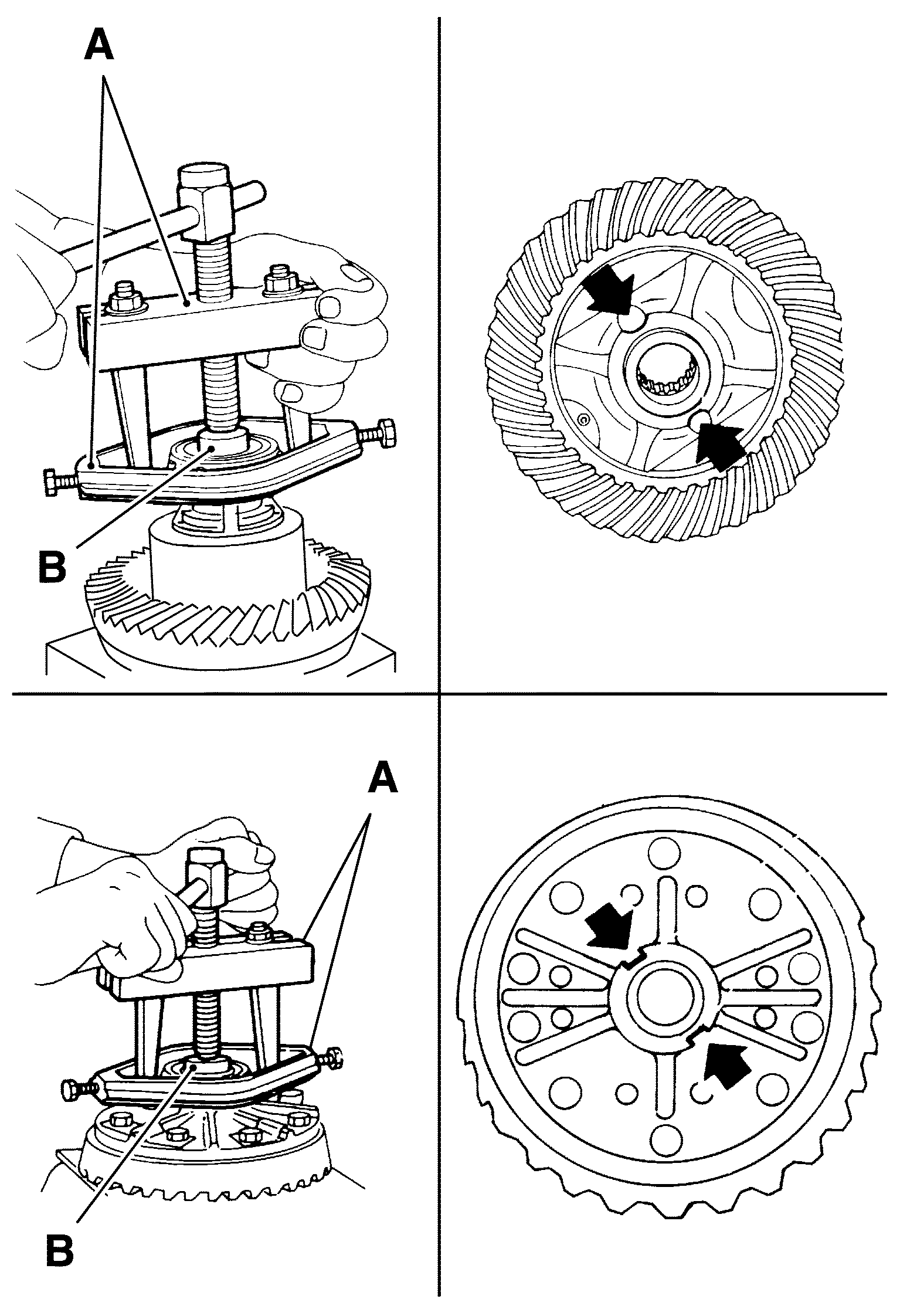

  8. Remove side bearing inner race with puller (A) and base (B).
    G04076245Courtesy of NISSAN NORTH AMERICA, INC.

    To prevent damage to bearing, engage puller jaws in groove (SYMBOL ).

    A

    : Puller [SST: ST33051001 (J-22888-20)]

    B

    : Base [SST: ST33061000 (J-8107-2)]
    CAUTION:
    • To prevent damage to the side bearing and drive gear, place copper plates between these parts and vise.
    • It is not necessary to remove side bearing inner race except when it is replaced.

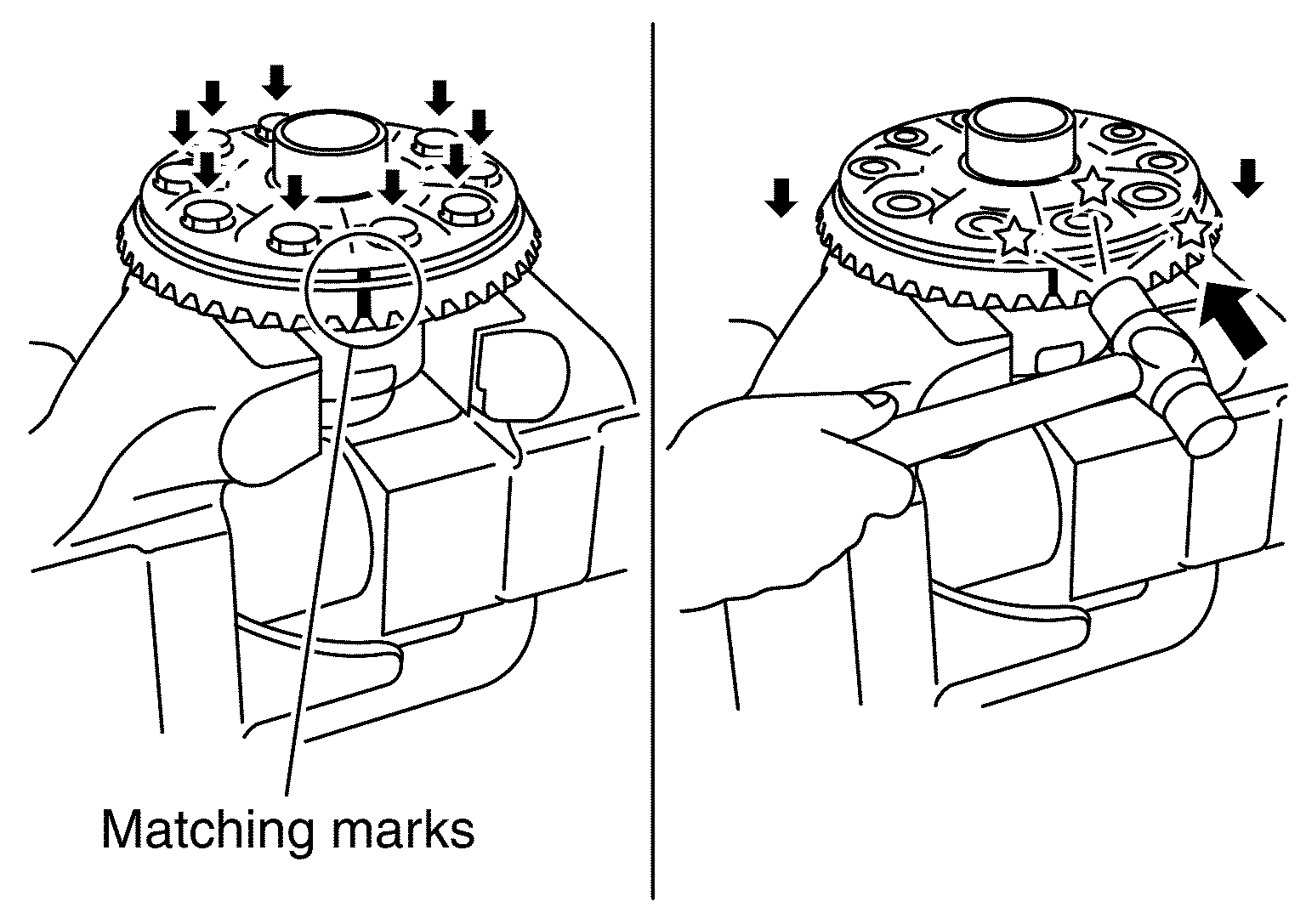

  9. For proper reinstallation, paint matching marks on one differential case assembly.
    G04076246Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: For matching marks, use paint. Never damage differential case and drive gear.
  10. Remove drive gear from differential case assembly.

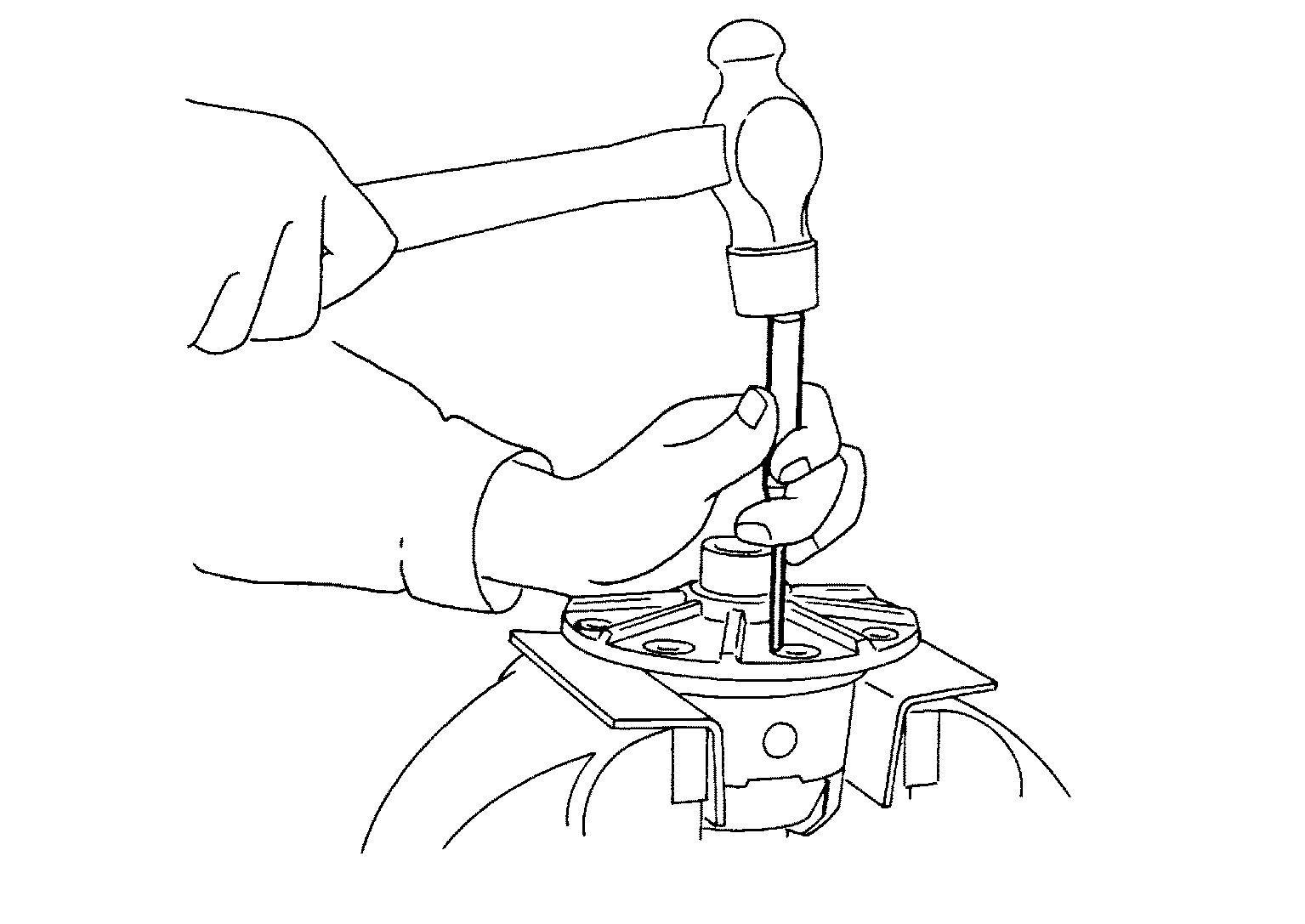

  11. Remove lock pin of pinion mate shaft with a punch from drive gear side.
    G04076247Courtesy of NISSAN NORTH AMERICA, INC.

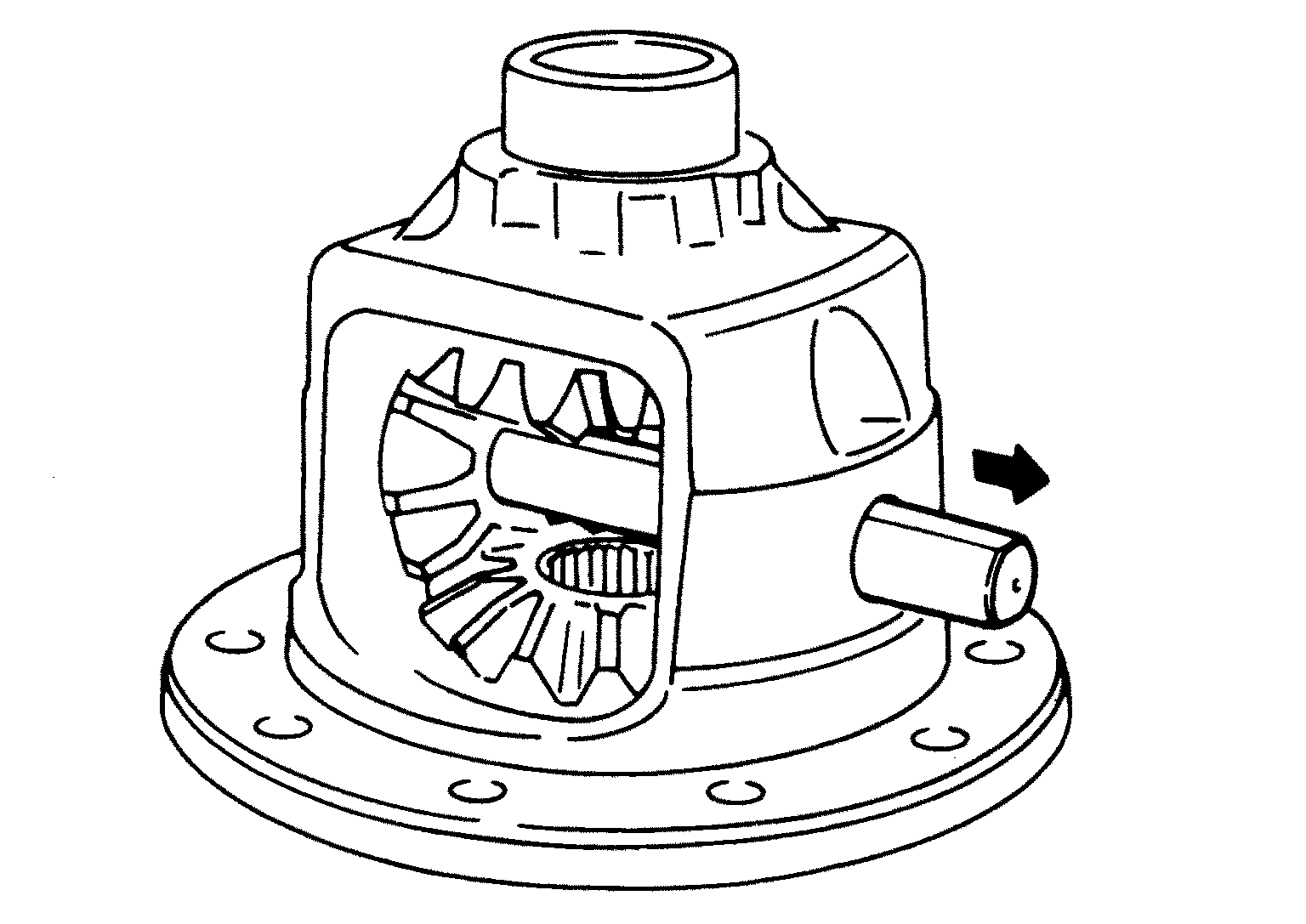

  12. Remove pinion mate shaft.
    G04076248Courtesy of NISSAN NORTH AMERICA, INC.

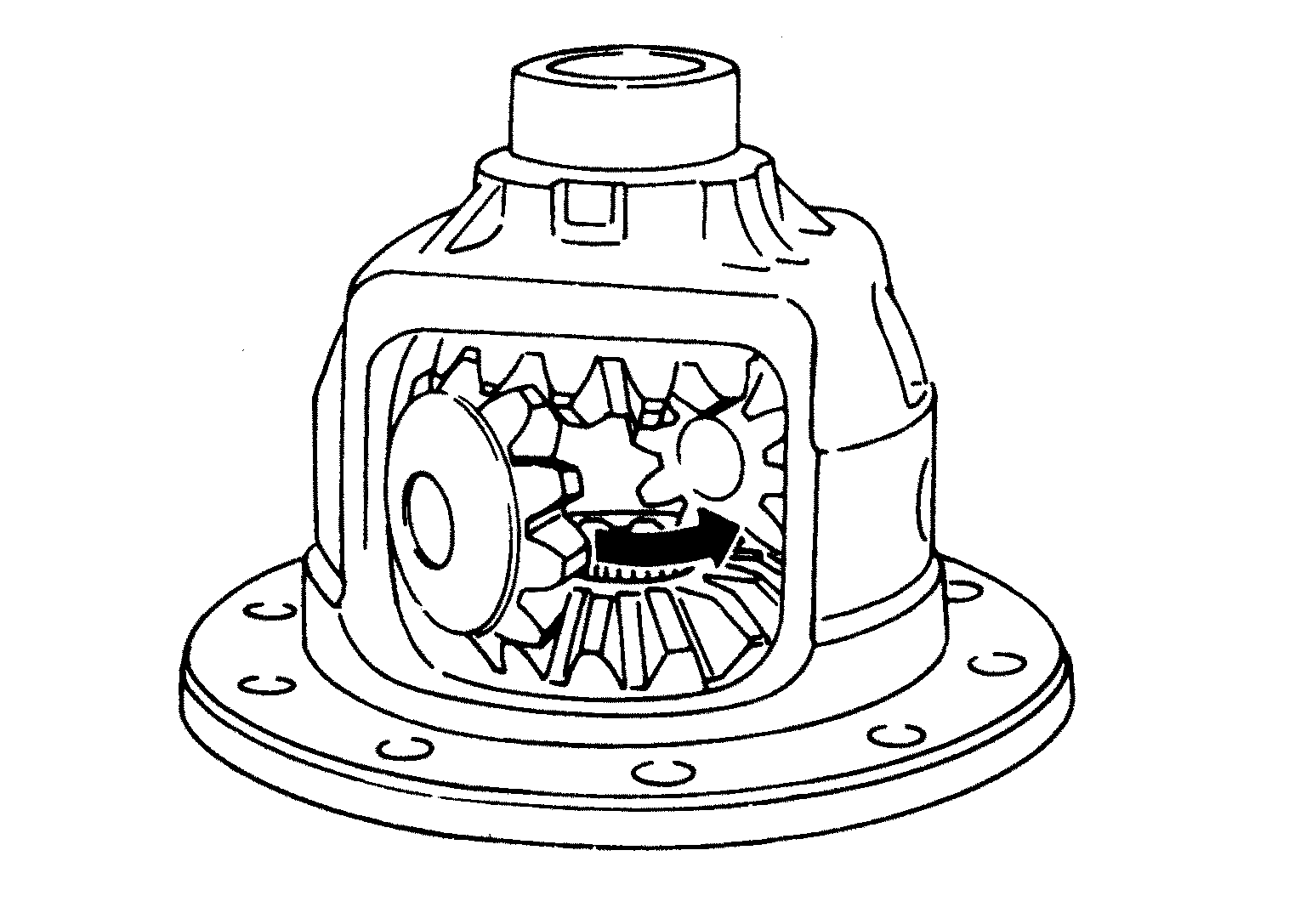

  13. Turn pinion mate gear, then remove pinion mate gear, pinion mate thrust washer, side gear and side gear thrust washer from differential case.
    G04076249Courtesy of NISSAN NORTH AMERICA, INC.
  14. Remove circular clip from side gear.
    CAUTION: Never damage side gear.
  15. Perform inspection after disassembly. Refer to Inspection .
