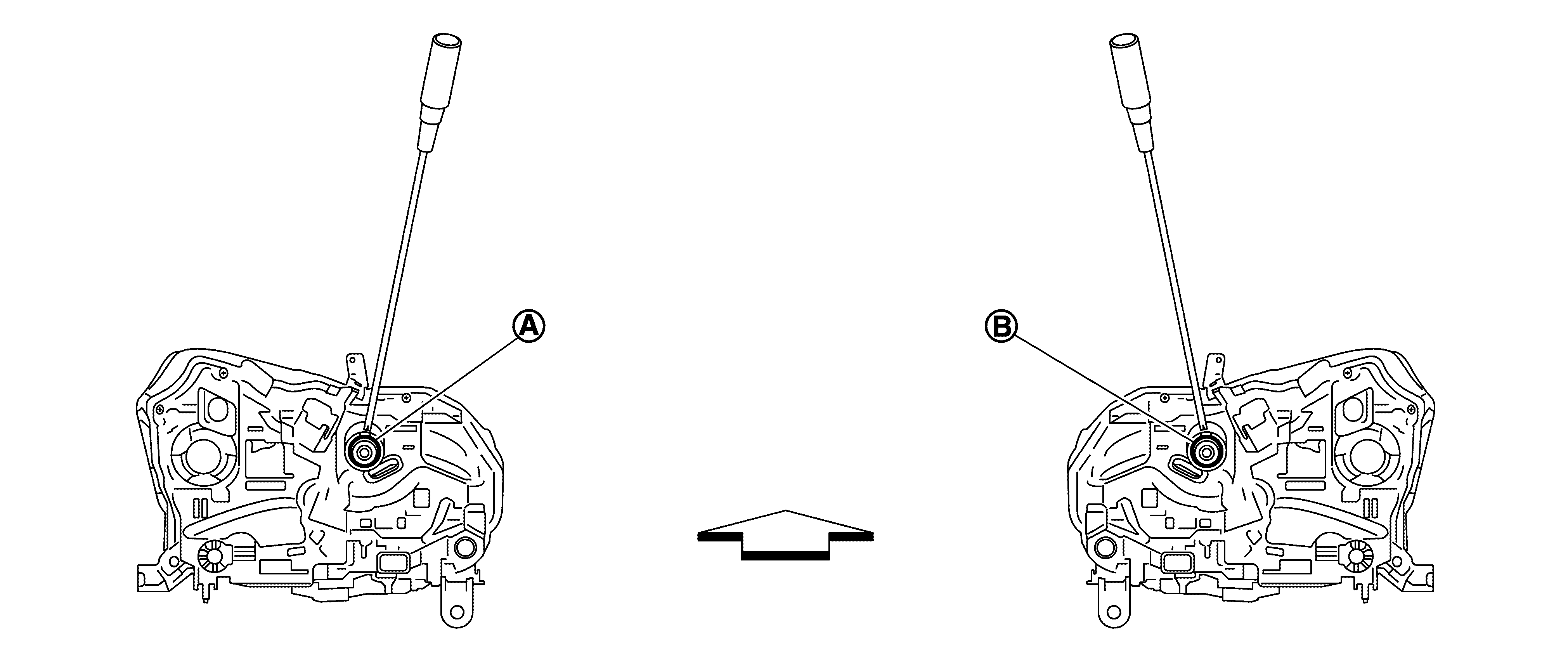

Aiming Adjustment Screw
|
A. |
Headlamp LH (UP/DOWN) adjustment screw |
B. |
Headlamp RH (UP/DOWN) adjustment screw |
|
|
: Vehicle front |
NOTE:
The figure is the vehicle without AFS. Each adjustment screw is applied to the vehicle with AFS.
|
Adjustment screw |
Screw driver rotation |
Facing direction |
|
|
A |
Headlamp LH (UP/DOWN) |
Clockwise |
DOWN |
|
Counterclockwise |
UP |
||
|
B |
Headlamp RH (UP/DOWN) |
Clockwise |
DOWN |
|
Counterclockwise |
UP |
||
For aiming adjustment procedure, refer to Aiming Adjustment Procedure .
