Aiming Adjustment Procedure

Place the screen.
NOTE:
- Stop the vehicle facing the wall.
- Place the board on a plain road vertically.
Face the vehicle with the screen. Maintain 10 m (32.8 ft) between the headlamp center and the screen.
Turn ignition switch ON. Turn the headlamp (Lo) ON.
CAUTION: Never cover lens surface with a tape etc. The lens is made of resin.

NOTE: Shut off the headlamp light with the board to prevent from illuminating the adjustment screen.

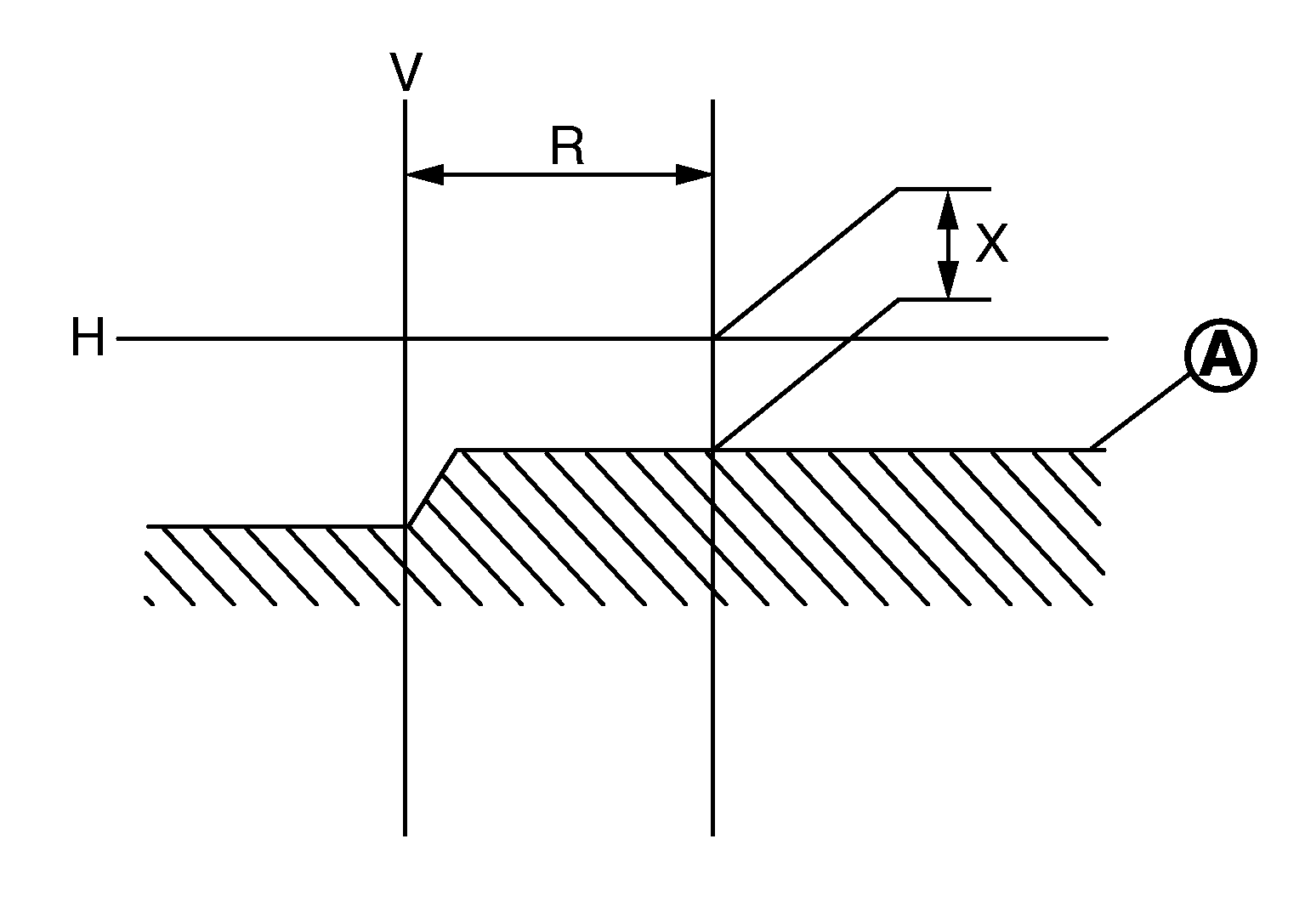

Measure the distance (X) between the horizontal center line of headlamp (H) and the cut off line (A) within the light axis measurement range (R) from the vertical center line ahead of headlamp (V).

Light Axis Measurement Range (R)

: 350 - 175 mm (13.78 - 6.89 in)

Courtesy of NISSAN NORTH AMERICA, INC.

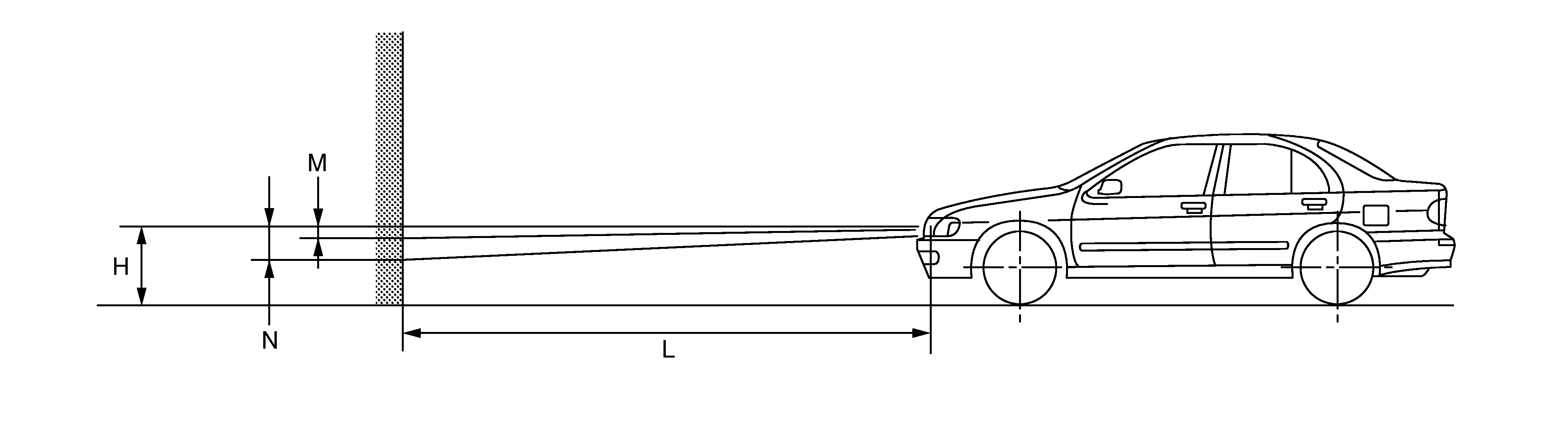

Adjust the cutoff line height (X) with the aiming adjustment screw so as to enter in the adjustment range (M-N) according to the horizontal center line of headlamp (H).

unit: mm (in)

Horizontal Center Line Of Headlamp (H)	Highest cutoff line height (M)	Lowest cutoff line height (N)
700 (27.56) or less	4 (0.16)	30 (1.18)
701(27.60) - 800 (31.50)	4 (0.16)	30 (1.18)
801 (31.54) or more	17 (0.67)	44 (1.73)

Courtesy of NISSAN NORTH AMERICA, INC.

Distance Between The Headlamp Center And The Screen (L)

: 10 m (32.8 ft)
