Component Location
WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
| Inside Li-ion battery | |||||
| : Vehicle front |

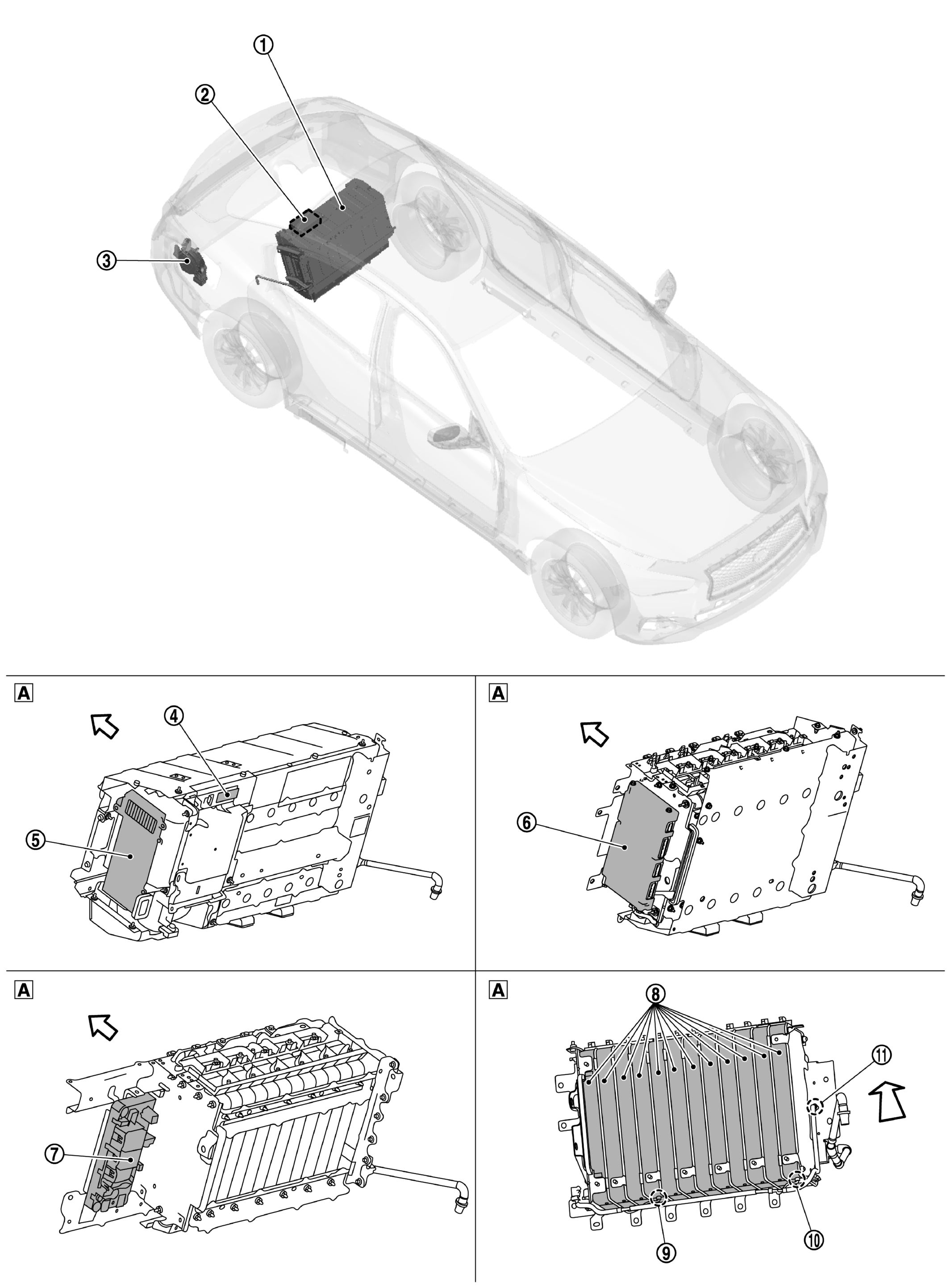

| No. | Component | Function |
|---|---|---|
| Li-ion battery | Refer to LI-ION BATTERY . | |
| HPCM | Receives various information which is transmitted from each vehicle control unit, and controls the vehicle comprehensively. Shuts off the main relay when a malfunction is detected in the Li-ion battery. Refer to COMPONENT LOCATION for detailed installation location. |
|
| Battery cooling fan | Refer to BATTERY COOLING FAN . | |
| Service plug | Refer to SERVICE PLUG . | |
| DC/DC converter | Refer to DC/DC CONVERTER . | |
| Li-ion battery controller (LBC) | Refer to LI-ION BATTERY CONTROLLER . | |
| Battery junction box | Refer to BATTERY JUNCTION BOX . | |
| Module | Refer to MODULE . | |
| Battery temperature sensor 1 (Module 4) | Refer to BATTERY TEMPERATURE SENSOR . | |
| Battery temperature sensor 2 (Module 12) | ||
| Battery temperature sensor 3 (Intake) |
