Li-Ion Battery

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

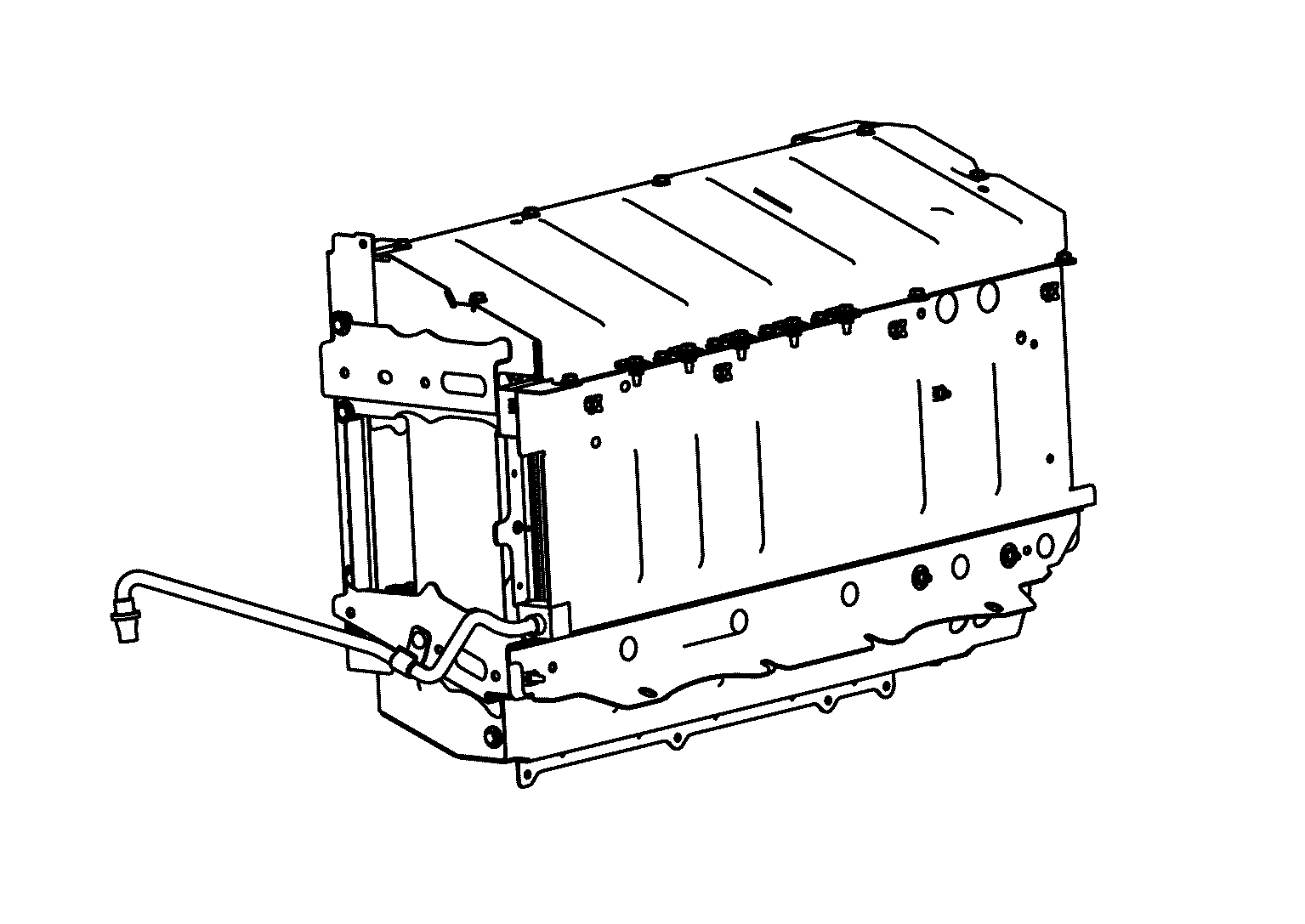

The Li-ion battery (battery pack) is installed inside the trunk room.

Courtesy of NISSAN NORTH AMERICA, INC.
The Li-ion battery controller, DC/DC converter, and battery junction box are installed on the battery pack.

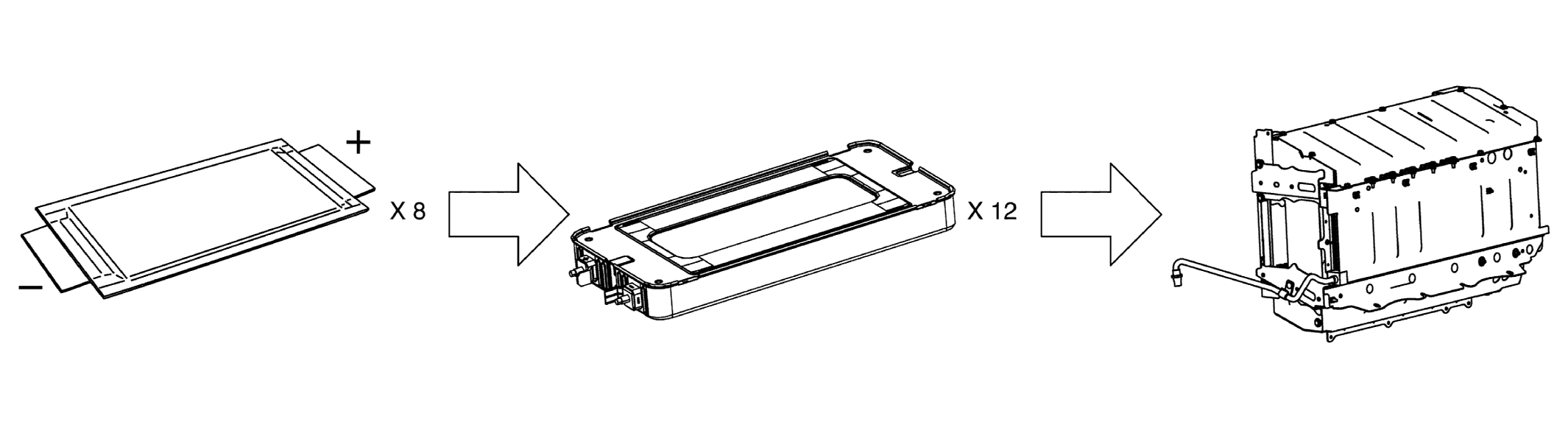

8 cells are connected in series to create one module. 12 of these modules are arranged in series to compose the battery pack.

Courtesy of NISSAN NORTH AMERICA, INC.
