Lane Camera Unit 2
Lane Camera Unit 2

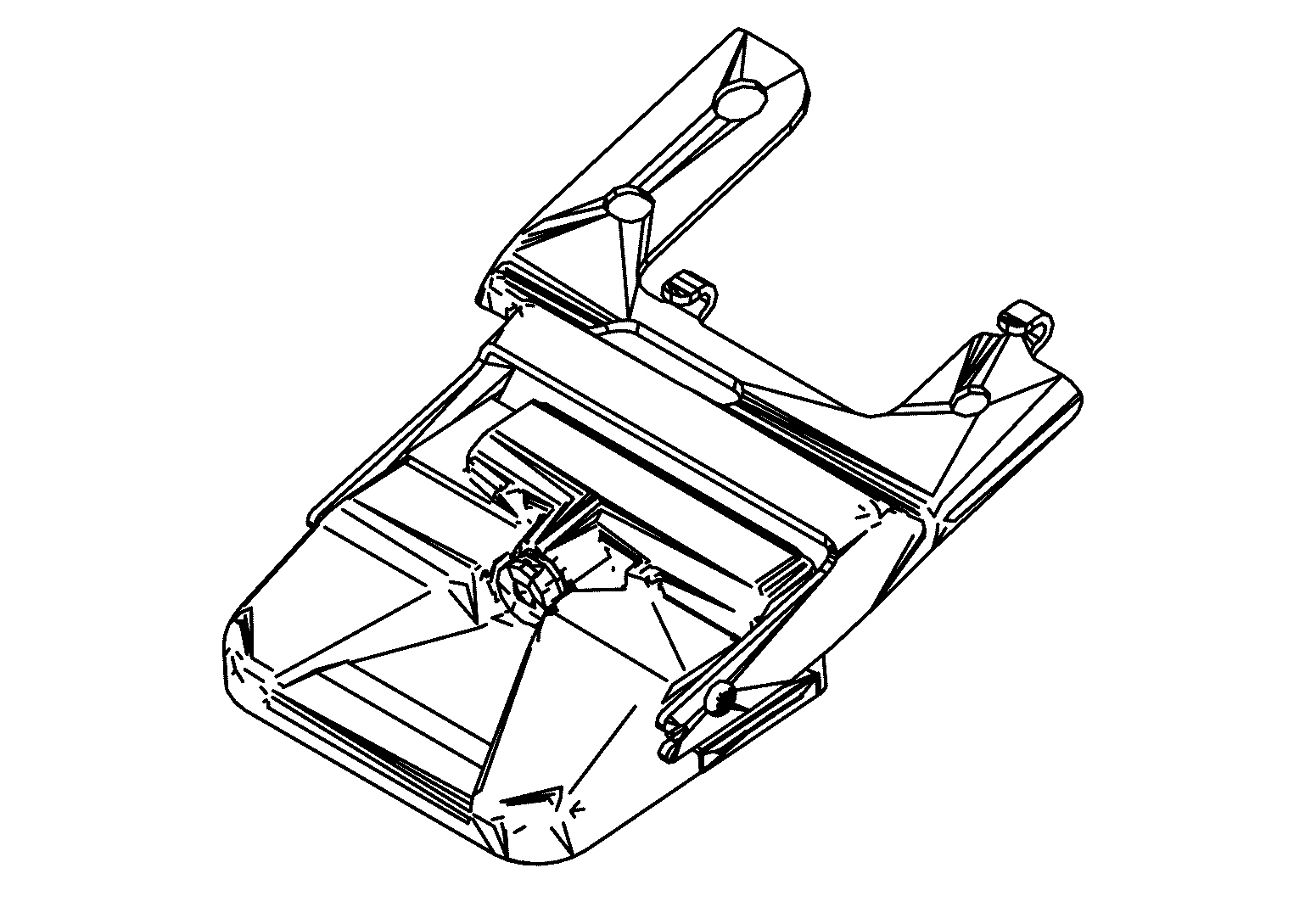

Lane camera unit 2 is located above the inside mirror and detects the lane marker in travel lane.
Courtesy of NISSAN NORTH AMERICA, INC.
Transmits lane marker signal to Chassis Control Module via chassis communication.
Courtesy of NISSAN NORTH AMERICA, INC.
