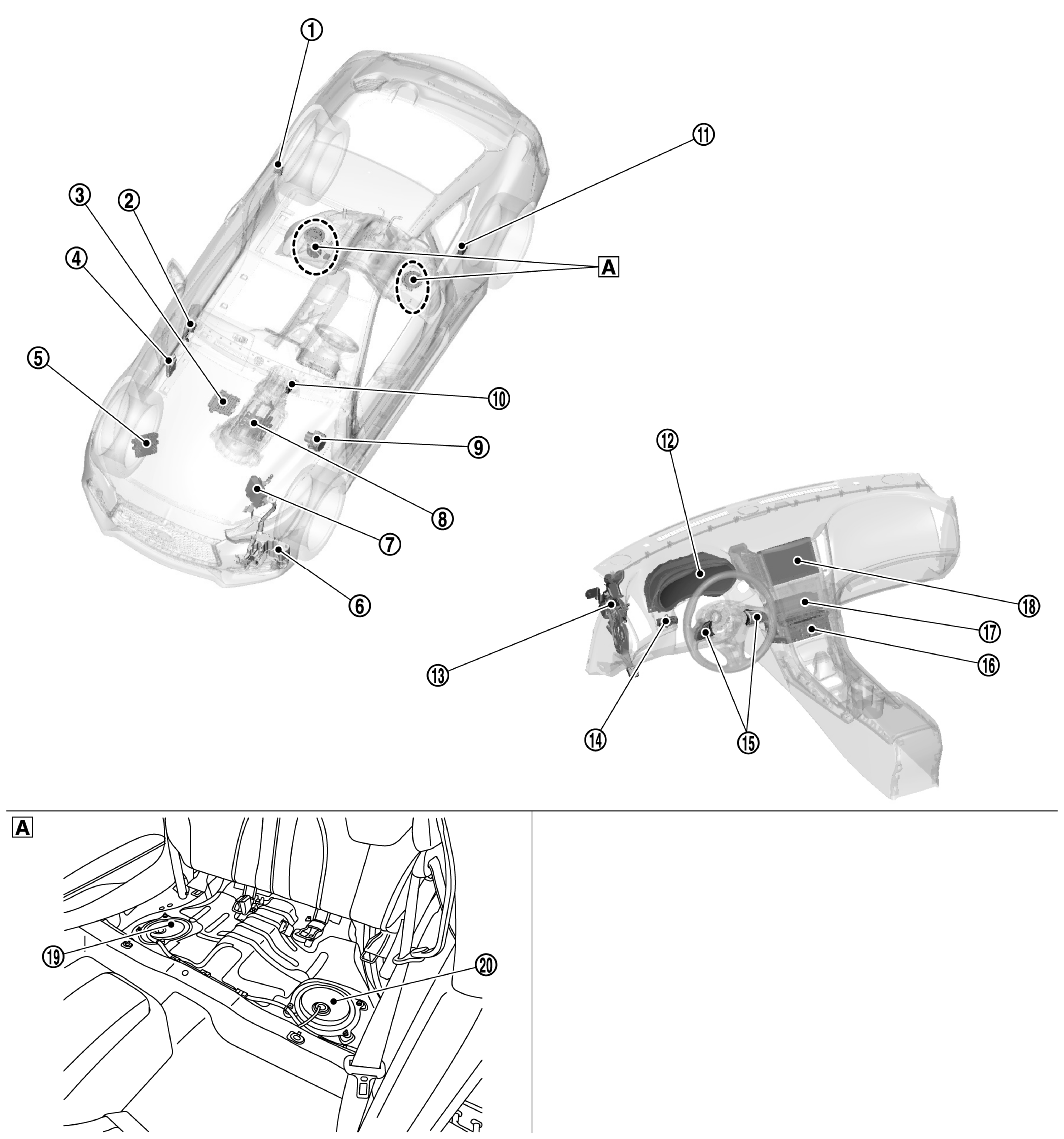

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

Under the rear seat.

No.	Component	Function
	ADAS Control Unit 2	Transmits the each signal to the Combination Meter via CAN communication. Refer to SYSTEM DESCRIPTION . Refer to COMPONENT LOCATION for detailed installation location.
	AFS Control Unit	Transmits the each signal to the Combination Meter via CAN communication. Refer to SYSTEM DESCRIPTION . Refer to COMPONENT LOCATION for detailed installation location.
	ECM (2.0L Turbo Gasoline Engine Models)	Transmits the each signal to the Combination Meter via CAN communication. Refer to SYSTEM DESCRIPTION . Refer to COMPONENT LOCATION for detailed installation location.
	BCM	Transmits the each signal to the Combination Meter via CAN communication. Refer to SYSTEM DESCRIPTION . Refer to COMPONENT LOCATION for detailed installation location.
	ECM (VR30DDTT Engine Models)	Transmits the each signal to the Combination Meter via CAN communication. Refer to SYSTEM DESCRIPTION . Refer to COMPONENT LOCATION for detailed installation location.
	Washer Level Switch	Transmits the Washer Level Switch signal to the Combination Meter.
	Chassis Control Module	Transmits the each signal to the Combination Meter via CAN communication. Refer to SYSTEM DESCRIPTION . Refer to COMPONENT LOCATION for detailed installation location.
	TCM	Transmits the each signal to the Combination Meter via CAN communication. Refer to SYSTEM DESCRIPTION . Refer to COMPONENT LOCATION for detailed installation location.
	ABS Actuator And Electric Unit (Control Unit)	Transmits the each signal to the Combination Meter via CAN communication. Refer to SYSTEM DESCRIPTION . Refer to COMPONENT LOCATION for detailed installation location.
	AWD Control Unit	Transmits the each signal to the Combination Meter via CAN communication. Refer to SYSTEM DESCRIPTION . Refer to COMPONENT LOCATION for detailed installation location.
	ADAS Control Unit	Transmits the each signal to the Combination Meter via CAN communication. Refer to SYSTEM DESCRIPTION . Refer to COMPONENT LOCATION for detailed installation location.
	Combination Meter	Refer to COMBINATION METER .
	Parking Brake Switch	Transmits the Parking Brake Switch signal to the Combination Meter.
	Meter Control Switch	Refer to METER CONTROL SWITCH .
	Steering Switch	Refer to STEERING SWITCH .
	A/C Auto Amp.	Transmits the each signal to the Combination Meter via CAN communication. Refer to SYSTEM DESCRIPTION . Refer to COMPONENT LOCATION for detailed installation location.
	Integral Switch	Transmits the meter setting request signal to the Combination Meter.
	Display Control Unit	Transmits the each signal to the Combination Meter via CAN communication. Refer to SYSTEM DESCRIPTION . Refer to COMPONENT LOCATION for detailed installation location.
	Fuel Level Sensor Unit (Main)	Transmits the Fuel Level Sensor signal to the Combination Meter.
	Fuel Level Sensor Unit (Sub)	Transmits the Fuel Level Sensor signal to the Combination Meter.
