Work Procedure (Preparation)

Perform self-diagnosis of lane camera unit.

Is any DTC detected?

Except "C1B01"

Perform diagnosis on the detected DTC and repair or replace the applicable item. Refer to DTC INDEX .

"C1B01" or no DTC

GO TO STEP 2  .

1. Perform pre-inspection for diagnosis. Refer to INSPECTION PROCEDURE .
2. Adjust the tire pressure to the specified pressure value.
3. Maintain no-load in vehicle.
4. Check if coolant and engine oil are filled up to correct level and fuel tank is full.
5. Shift the selector lever to "P" position and release the parking brake.
6. Clean the windshield.
7. Completely clear off the instrument panel.
   NOTE:

   If any fixed object is put on instrument panel, cover the upper of the instrument panel with black cloth to prevent an object from reflecting in the windshield.

GO TO STEP 3  .

Prepare the aiming adjustment jig according to the following procedure and the figure.

1. Prepare six sheets of white paper and black paper, respectively, with dimensions of 120 mm (4.72 in) * 120 mm (4.72 in) to create a left target and right target.
   NOTE:

   Correct the magnification of print and print the target mark sample in the service manual on the black paper. Refer to WORK PROCEDURE (TARGET MARK SAMPLE) .

2. Tape three sheets of black paper and three sheets of white paper together to make a target of 360 mm (14.17 in) * 240 mm (9.45 in).

   Courtesy of NISSAN NORTH AMERICA, INC.

   L	: 120 mm (4.72 in)
   W	: 120 mm (4.72 in)

   NOTE:

   • Use a transparent tape.
   • Never apply tape to target surface.
   • Never allow a clearance on the black and white boundary.
3. Stick a printed target mark on the board with a scotch tape or a piece of double - sided tape.
   NOTE:

   • Use the board that peripheral area of the target is monochrome such as a white-board.
   • Notice that the cross of the target is horizontal and vertical.

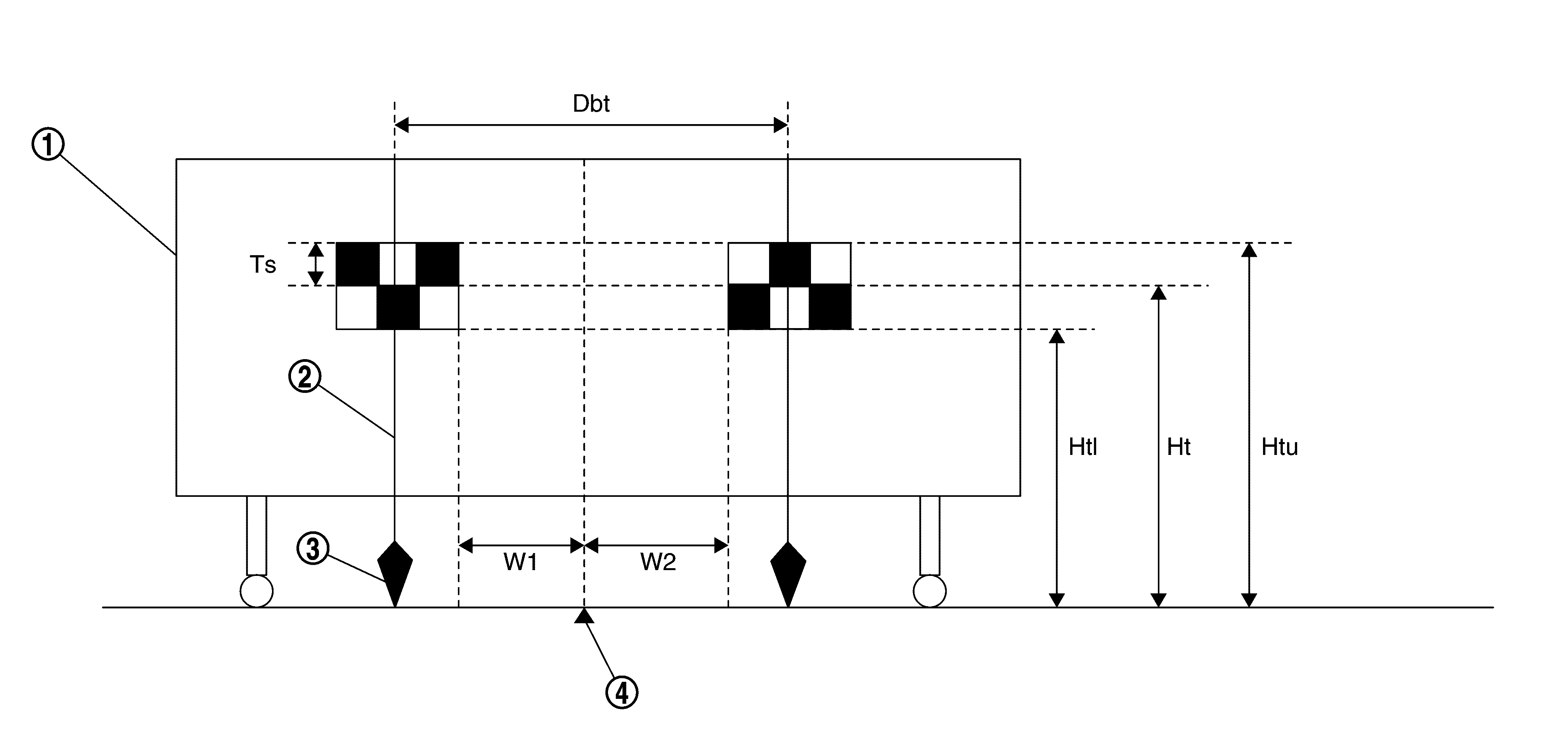

   Courtesy of NISSAN NORTH AMERICA, INC.

   	Board		String		Cone
   	Center between two targets

   Side of a target (Ts)	: 120 mm (4.72 in)
   Height of a target lower end (Htl)	: 1, 180 mm (46.46 in)
   Height of a target center (Ht)	: 1, 300 mm (51.18 in)
   Height of a target upper end (Htu)	: 1, 420 mm (55.91 in)
   Width between a right target center from a left target center (Dbt)	: 720 mm (28.35 in)
   W1	: 180 mm (7.09 in)
   W2	: 180 mm (7.09 in)

Proceed to WORK PROCEDURE (TARGET SETTING) .
