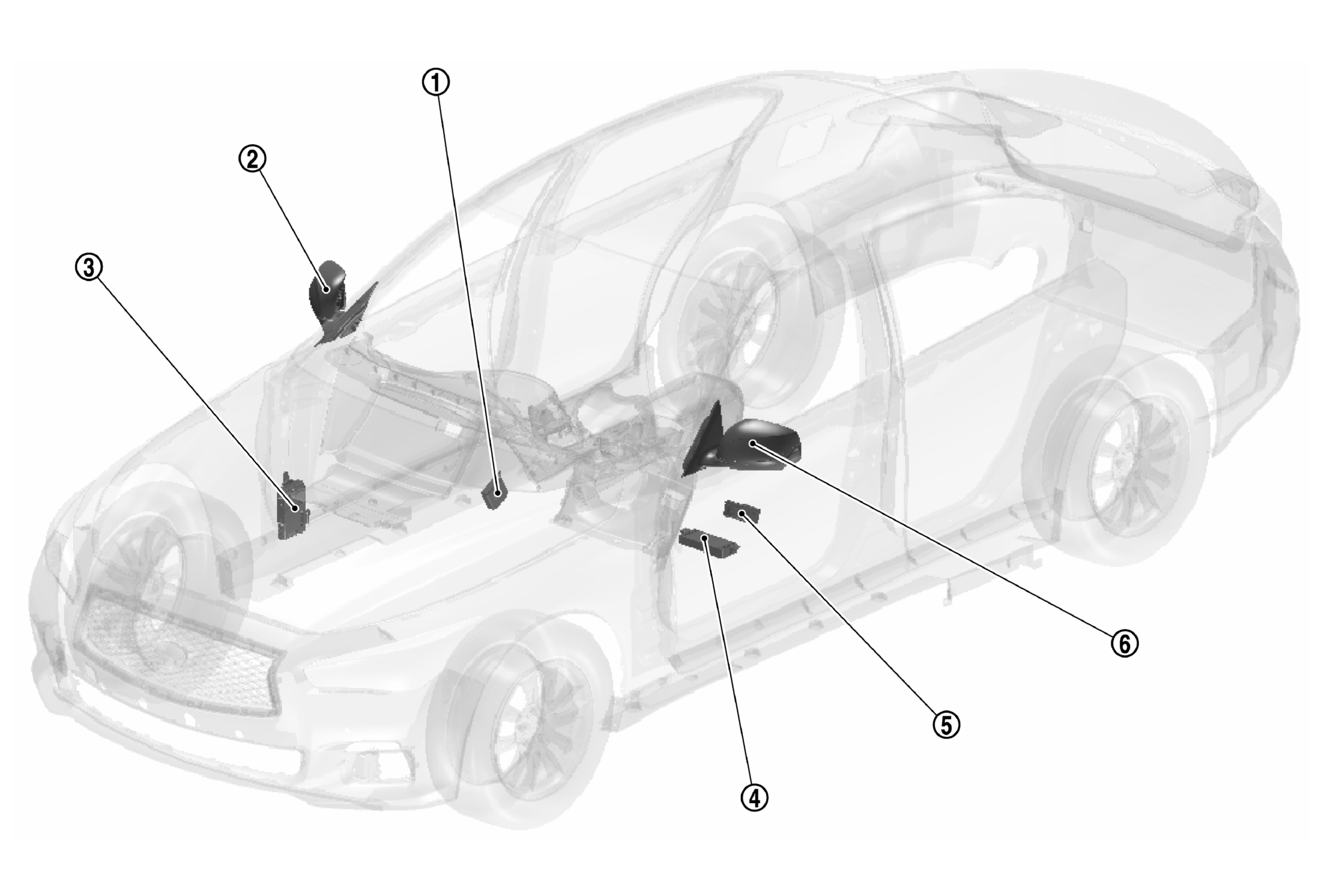

Automatic drive positioner control unit |
Perform the control of door mirror. Refer to AUTOMATIC DRIVE POSITIONER CONTROL UNIT
. |
 |
Door mirror RH |
- Door mirror integrates door mirror motor and folding motor.
- Door mirror motor operates door mirror face when mirror switch is operated.
|
 |
BCM |
It communicates with driver seat control unit via CAN communication. Refer to COMPONENT LOCATION
. |
 |
Driver seat control unit |
Requests the operation of door mirror to automatic drive positioner control unit. Refer to DRIVER SEAT CONTROL UNIT
. |
 |
Power window main switch (door mirror remote control switch) |
Refer to POWER WINDOW MAIN SWITCH (DOOR MIRROR REMOTE CONTROL SWITCH) . |
 |
Door mirror LH |
- Door mirror integrates door mirror motor and folding motor.
- Door mirror motor operates door mirror face when mirror switch is operated.
|
