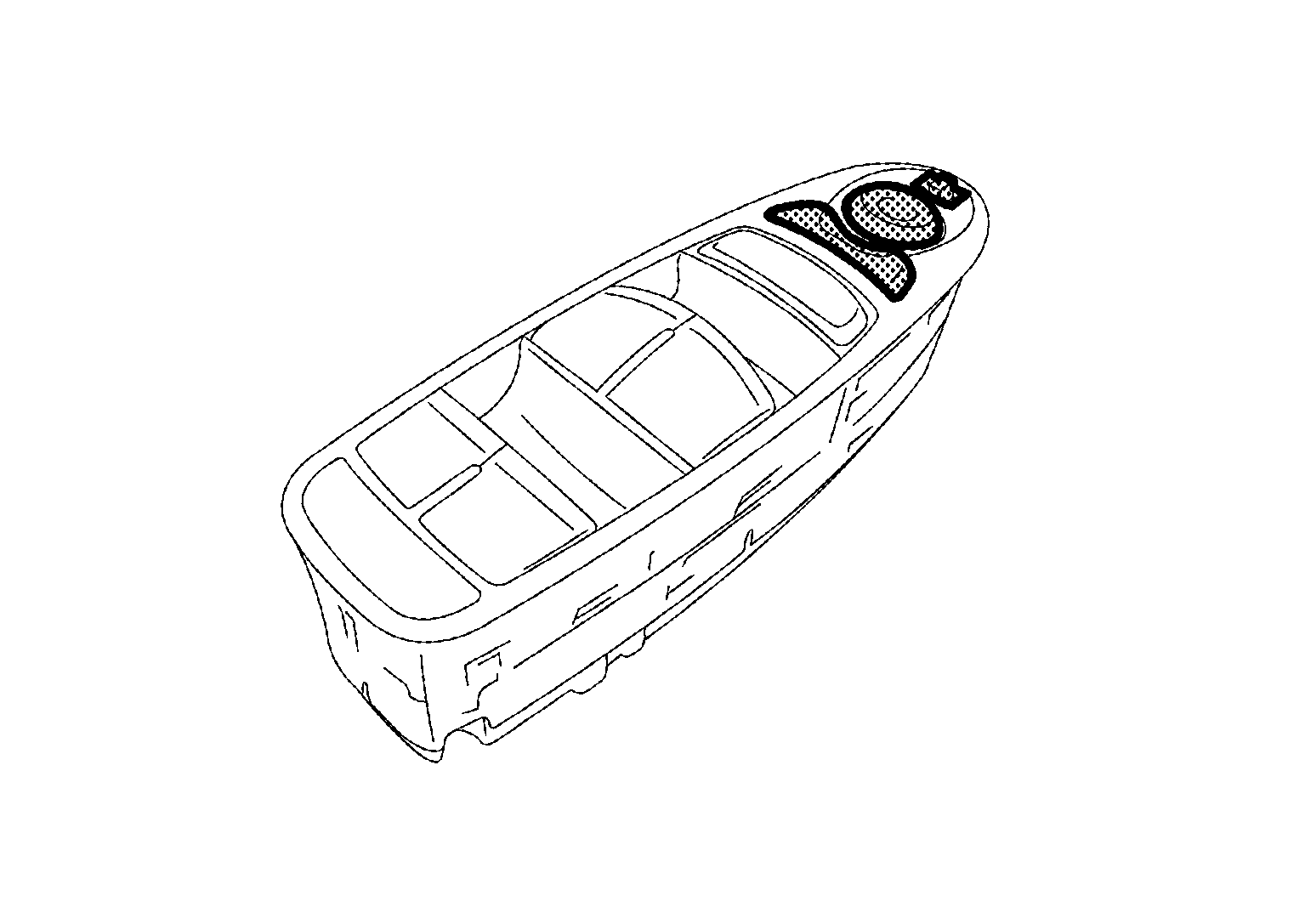

Power Window Main Switch (Door Mirror Remote Control Switch)

Power window main switch (door mirror remote control switch) transmits mirror switch signal and change over switch signal to automatic drive positioner control unit.
Door mirror remote control switch is integrated with power window main switch.

Courtesy of NISSAN NORTH AMERICA, INC.
The power window main switch (door mirror remote control switch) integrates the mirror switch and change over switch.
Door mirror retraction operation is performed when open/close switch is operated.
Mirror face angle adjustment is performed when mirror switch is operated.
The door mirror for which angle adjustment is performed is switch by operating the change over switch.
