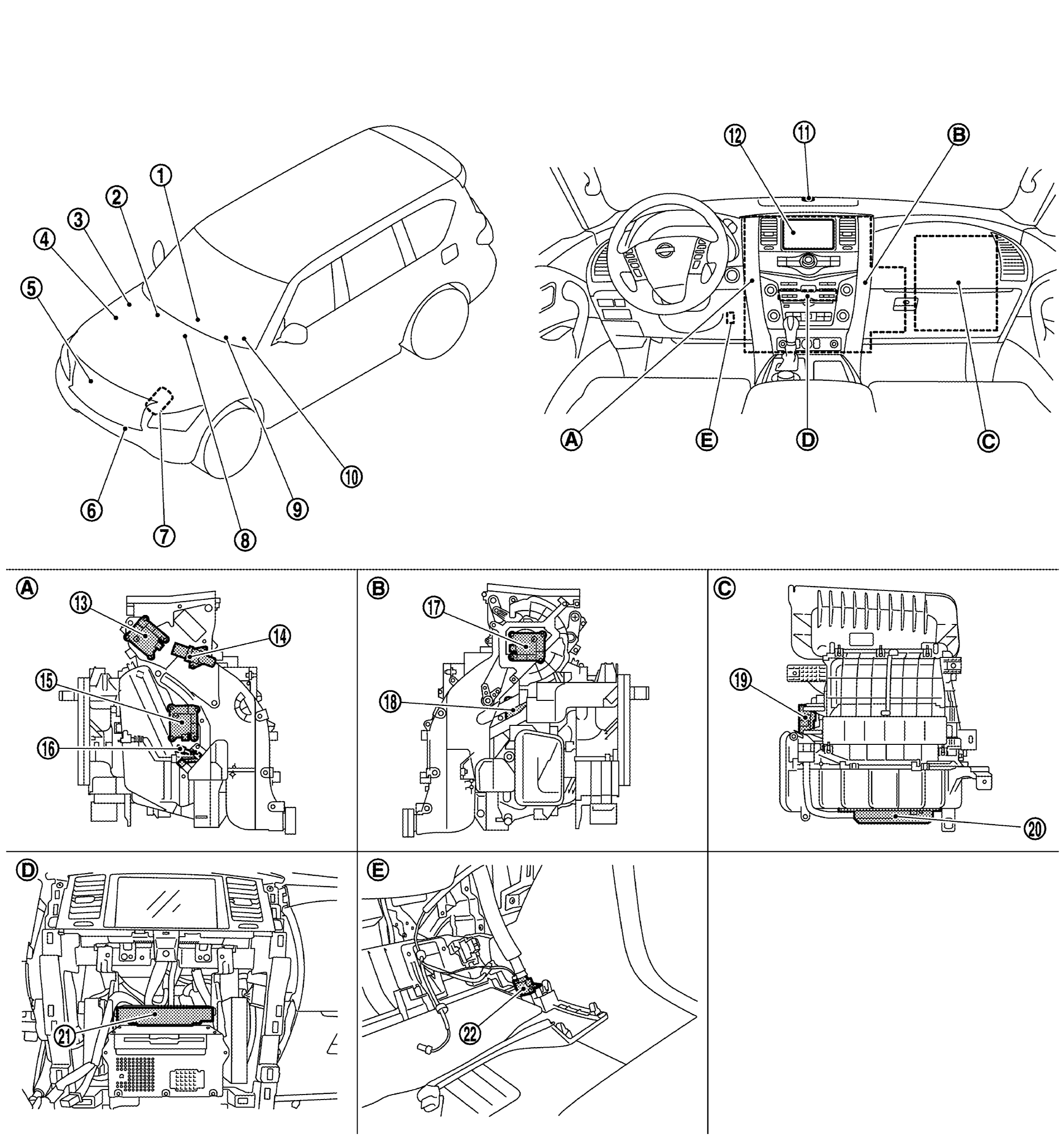

Components Location
| 1. | Preset switch | 2. | Engine coolant temperature sensor Refer to COMPONENTS LOCATION . |
3. | IPDM E/R Refer to COMPONENTS LOCATION . |
| 4. | ECM Refer to COMPONENTS LOCATION |
5. | Refrigerant pressure sensor | 6. | Ambient sensor |
| 7. | Magnet clutch | 8. | AV control unit Refer to COMPONENTS LOCATION . |
9. | BCM Refer to COMPONENTS LOCATION . |
| 10. | Combination meter Refer to COMPONENTS LOCATION . |
11. | Sunload sensor | 12. | Front display |
| 13. | Upper ventilator door motor | 14. | Aspirator | 15. | Front air mix door motor (Driver side) |
| 16. | Intake sensor | 17. | Front mode door motor | 18. | Front air mix door motor (Passenger side) |
| 19. | Intake door motor | 20. | Front blower motor | 21. | A/C auto amp. |
| 22. | Front in - vehicle sensor | ||||
| A. | Left side of heater & cooling unit assembly | B. | Right side of heater & cooling unit assembly | C. | Back side of blower unit assembly |
| D. | Cluster lid C is removed | E. | Instrument lower panel LH is removed |
