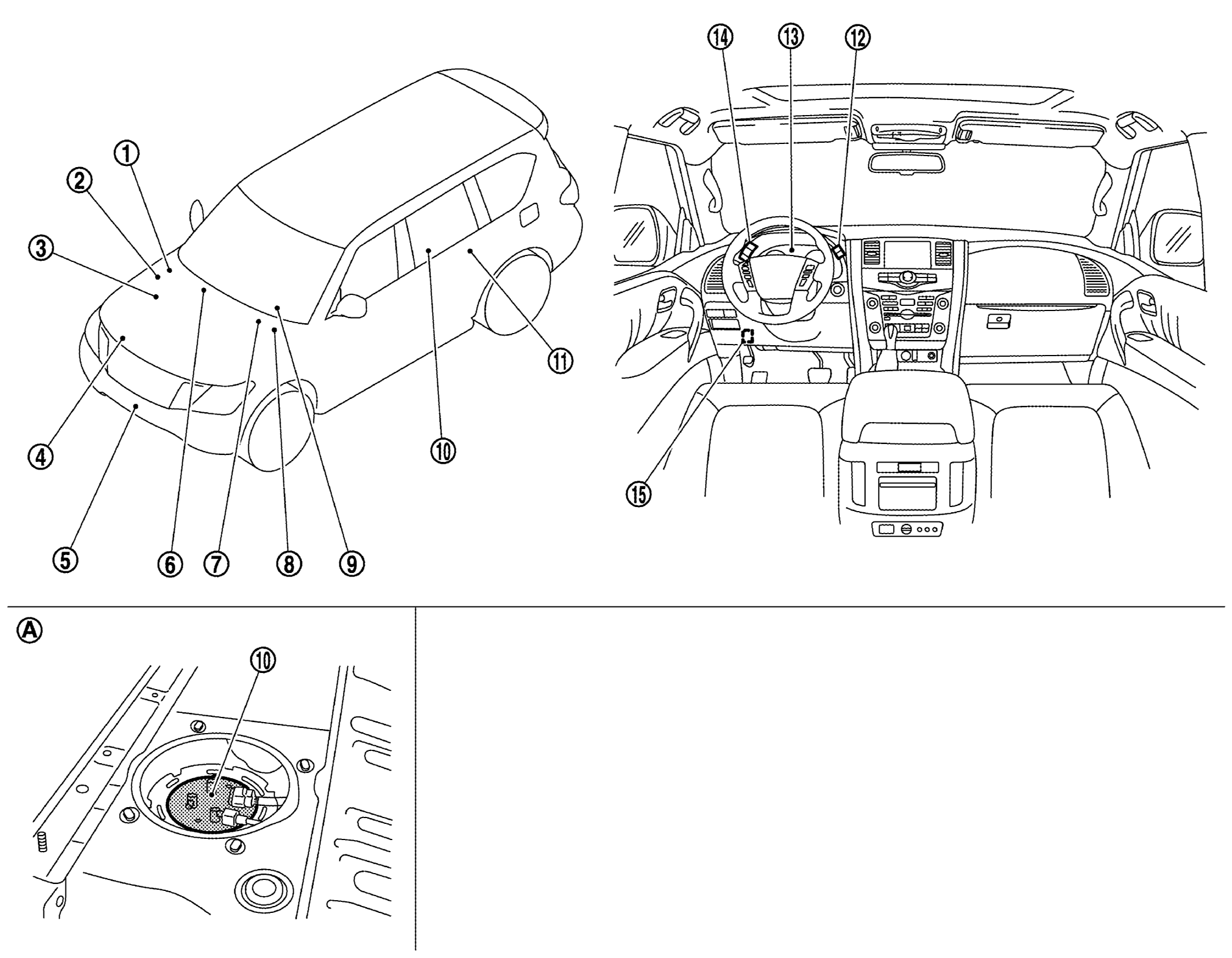

Components Location
| 1. | IPDM E/R Refer to COMPONENTS LOCATION . |
2. | ECM Refer to COMPONENTS LOCATION . |
3. | Washer level switch |
| 4. | Engine oil pressure sensor Refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS . |
5. | Ambient sensor | 6. | A/C auto amp. Refer to COMPONENTS LOCATION . |
| 7. | TCM Refer to COMPONENTS LOCATION . |
8. | ABS actuator and electric unit (control unit) Refer to COMPONENTS LOCATION . |
9. | BCM Refer to COMPONENTS LOCATION . |
| 10. | Fuel level sensor unit | 11. | ADAS control unit Refer to COMPONENTS LOCATION . |
12. | Trip computer switch |
| 13. | Combination meter | 14. | Trip reset and illumination control switch | 15. | Parking brake switch |
| A. | Under of left side second seat |
